Part number
BMXART0814
$731.17 On request Dispatch — · From TürkiyeGet a Quote
Modicon X80

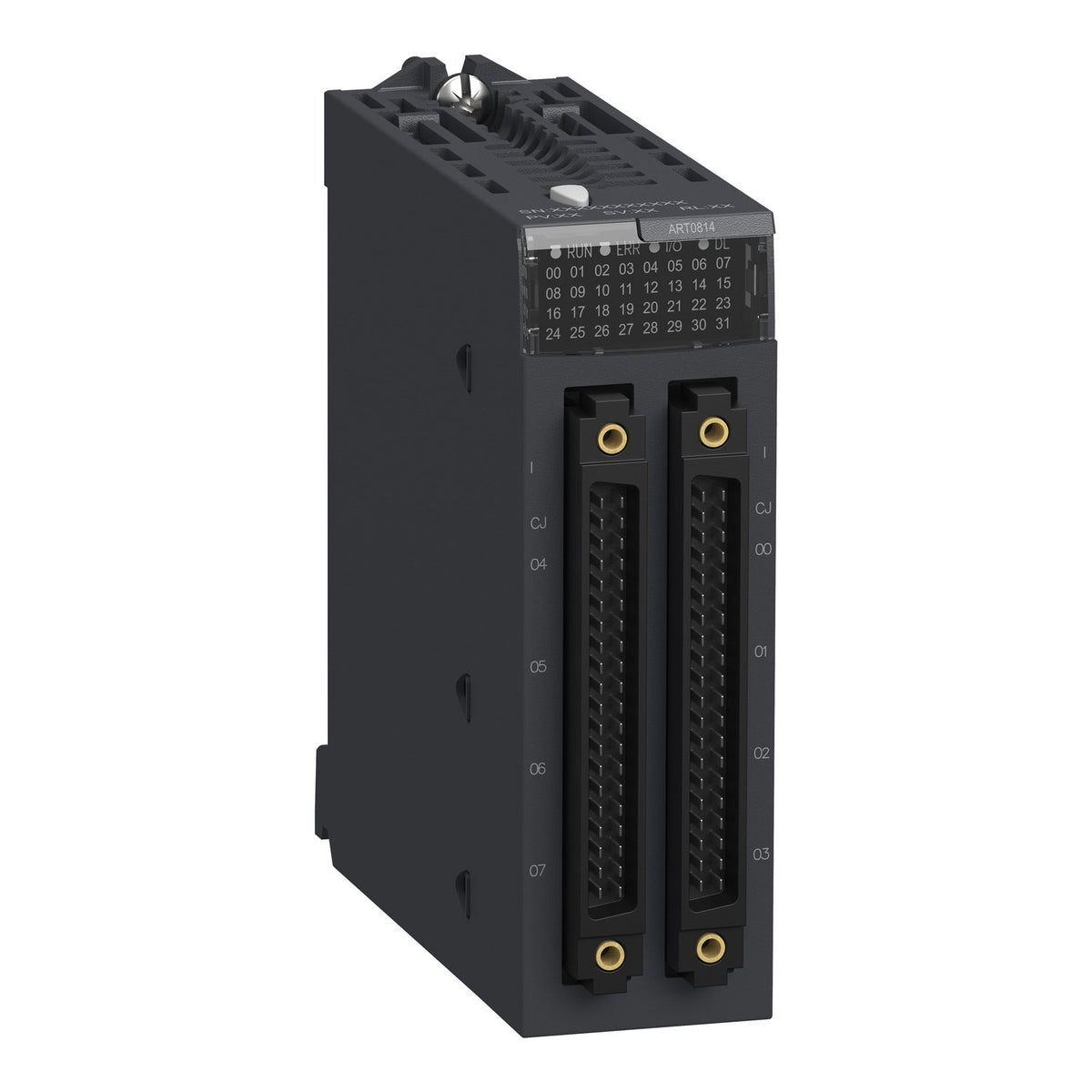

Schneider Electric BMXART0814 Modicon X80 8-Channel Isolated RTD/Thermocouple Input Module PLC I/O Module

Modicon X80 8-channel isolated RTD/thermocouple input module, 15-bit+sign, 0.1C resolution, IP20.

Range of Product
Modicon X80
Product or Component Type
Analog input module
Electrical connection
40 ways 2 connectors
Isolation between channels
Isolated
Input level
Low level
Analogue input number
8
EAN
3595863966794
Description

About the BMXART0814

The Schneider Electric BMXART0814 is a Modicon X80 analog input module with 8 isolated, low-level channels for RTD and thermocouple temperature sensors, at 15-bit + sign resolution. It supports Cu10, Ni100, Ni1000, Pt100, and Pt1000 RTDs plus B, E, J, K, L, N, R, S, T, U thermocouples, with external cold-junction compensation.

Certifications & Standards

  • CE
  • UL
  • CSA
  • IEC 61131-2
  • EN 61010-2-201

Selection Notes

Choose the BMXART0814 over the 4-channel RTD/thermocouple card when a temperature-monitoring station needs 8 channels in one slot rather than 4 — resolution and sensor-type support (Cu10, Ni100, Ni1000, Pt100, Pt1000 RTDs; B, E, J, K, L, N, R, S, T, U thermocouples) stay the same, but MTBF drops from 1,400,000 h at 4 channels to 900,000 h at 8, and current draw rises to 50 mA at 24 V DC. Each channel still carries its own cold-junction compensation via an external Pt100 probe, so mixing sensor types across channels on the same module is supported. The 40-way, 2-connector wiring layout keeps the 8 channels on the same physical footprint style as the 4-channel card, simplifying panel design when both module sizes appear across a project.

Specification

Full specification

51 values · Last verified 30 Oct 2026

Main 7

Range of Product Modicon X80
Product or Component Type Analog input module
Electrical connection 40 ways 2 connectors
Isolation between channels Isolated
Input level Low level
Analogue input number 8
Analogue input type Voltage +/- 1.28 V, Voltage +/- 160 mV, Voltage +/- 320 mV, Voltage +/- 40 mV, Voltage +/- 640 mV, Voltage +/- 80 mV, Resistor 400 Ohm 2 wires, Resistor 400 Ohm 3 wires, Resistor 400 Ohm 4 wires, Resistor 4000 Ohm 2 wires, Resistor 4000 Ohm 3 wires, Resistor 4000 Ohm 4 wires, Temperature probe -100...+260 °C Cu 10, Temperature probe -100...+450 °C Pt 100 UL/JIS, Temperature probe -100...+450 °C Pt 1000 UL/JIS, Temperature probe -200...+850 °C Pt 100 IEC, Temperature probe -200...+850 °C Pt 1000 IEC, Temperature probe -60...+180 °C Ni 100, Temperature probe -60...+180 °C Ni 1000, Thermocouple +130...+1820 °C thermocouple B, Thermocouple +270...+1300 °C thermocouple N, Thermocouple -200...+600 °C thermocouple U, Thermocouple -200...+760 °C thermocouple J, Thermocouple -200...+900 °C thermocouple L, Thermocouple -270...+1000 °C thermocouple E, Thermocouple -270...+1370 °C thermocouple K, Thermocouple -270...+400 °C thermocouple T, Thermocouple -50...+1769 °C thermocouple R, Thermocouple -50...+1769 °C thermocouple S

Complementary 20

Analog/digital conversion Sigma delta 16 bits
Analogue input resolution 15 bits + sign
Permitted overload on inputs +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 80 mV
Common mode rejection 120 dB 50/60 Hz
Differential mode rejection 60 dB 50/60 Hz
Cold junction compensation External by Pt100 probe
Type of filter First order digital filtering
Nominal read cycle time 400 ms with temperature probe, 200 ms with thermocouple
Measurement error +/- 0.7 °C Ni 1000 25 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 3 °C Ni 100 0...60 °C, +/- 3 °C thermocouple L 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4 °C Cu 10 25 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, 0.05 % of full scale +/- 1.28 V 25 °C, 0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C, 0.05 % of full scale +/- 40 mV 25 °C, 0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 80 mV 25 °C, 0.12 % of full scale 400 Ohm 25 °C, 0.12 % of full scale 4000 Ohm 25 °C, <= 0.2 % of full scale +/- 40 mV 0...60 °C, <= 0.3 % of full scale 400 Ohm 0...60 °C, 1.3 °C Ni 1000 0...60 °C
Temperature drift 25 ppm/°C 400 Ohm, 25 ppm/°C 4000 Ohm, 25 ppm/°C Ni 1000, 25 ppm/°C thermocouple B, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple U, 30 ppm/°C +/- 1.28 V, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 80 mV, 30 ppm/°C Cu 10, 30 ppm/°C Ni 100, 30 ppm/°C Pt 100, 30 ppm/°C Pt 1000
Recalibration Internal
Detection type Open circuit Cu 10, Open circuit Ni 100, Open circuit Ni 1000, Open circuit Pt 100, Open circuit Pt 1000, Open circuit thermocouple B, Open circuit thermocouple E, Open circuit thermocouple J, Open circuit thermocouple K, Open circuit thermocouple L, Open circuit thermocouple N, Open circuit thermocouple R, Open circuit thermocouple S, Open circuit thermocouple T, Open circuit thermocouple U
Maximum wiring resistance 20 Ohm 2 wires Cu 10, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Pt 100, 20 Ohm 3 wires Cu 10, 20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Pt 100, 200 Ohm 2 wires Ni 1000, 200 Ohm 2 wires Pt 1000, 200 Ohm 3 wires Ni 1000, 200 Ohm 3 wires Pt 1000, 50 Ohm 4 wires Cu 10, 50 Ohm 4 wires Ni 100, 50 Ohm 4 wires Pt 100, 500 Ohm 4 wires Ni 1000, 500 Ohm 4 wires Pt 1000
Measurement resolution 0.1 °C Cu 10, 0.1 °C Ni 100, 0.1 °C Ni 1000, 0.1 °C Pt 100, 0.1 °C Pt 1000, 0.1 °C thermocouple B, 0.1 °C thermocouple E, 0.1 °C thermocouple J, 0.1 °C thermocouple K, 0.1 °C thermocouple L, 0.1 °C thermocouple N, 0.1 °C thermocouple R, 0.1 °C thermocouple S, 0.1 °C thermocouple T, 0.1 °C thermocouple U, 1280/2exp14 mV +/- 1.28 V, 160/2exp14 mV +/- 160 mV, 320/2exp14 mV +/- 320 mV, 40/2exp14 mV +/- 40 mV, 12.5 mOhm 400 Ohm, 125 mOhm 4000 Ohm, 640/2exp14 mV +/- 640 mV, 80/2exp14 mV +/- 80 mV
Maximum conversion value +/- 100 % 400 Ohm, +/- 100 % 4000 Ohm, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 80 mV
MTBF reliability 900000 H
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Status LED 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
Net Weight 0.364 lb(US) (0.165 kg)
Current consumption 150 mA 3.3 V DC, 50 mA 24 V DC

Environment 11

Vibration resistance 3 gn
Shock resistance 30 gn
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative humidity 5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection IP20
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product Certifications CE, EAC, UL, CSA, Merchant Navy, RCM
Standards IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2, EN 61010-2-201
Environmental characteristic 3C3 IEC 60721-3-3, 3C4 IEC 60721-3-3
Protective treatment Standard version
Show all 51 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXART0814
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595863966794

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin US
Shipping weight 0.165 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for BMXART0814

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • EAC
  • IEC 61131-2
  • IEC 61000-6-4
  • IEC 61000-6-2
  • EN 61010-2-201
Quick answers

Questions about the BMXART0814

What is the HS code of BMXART0814 for customs?

The tariff (HS) code on file for BMXART0814 is 853710.

What is the EAN of BMXART0814?

The EAN (GTIN) of BMXART0814 is 3595863966794.

Where does BMXART0814 ship from, and how fast?

BMXART0814 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
