Modicon X80

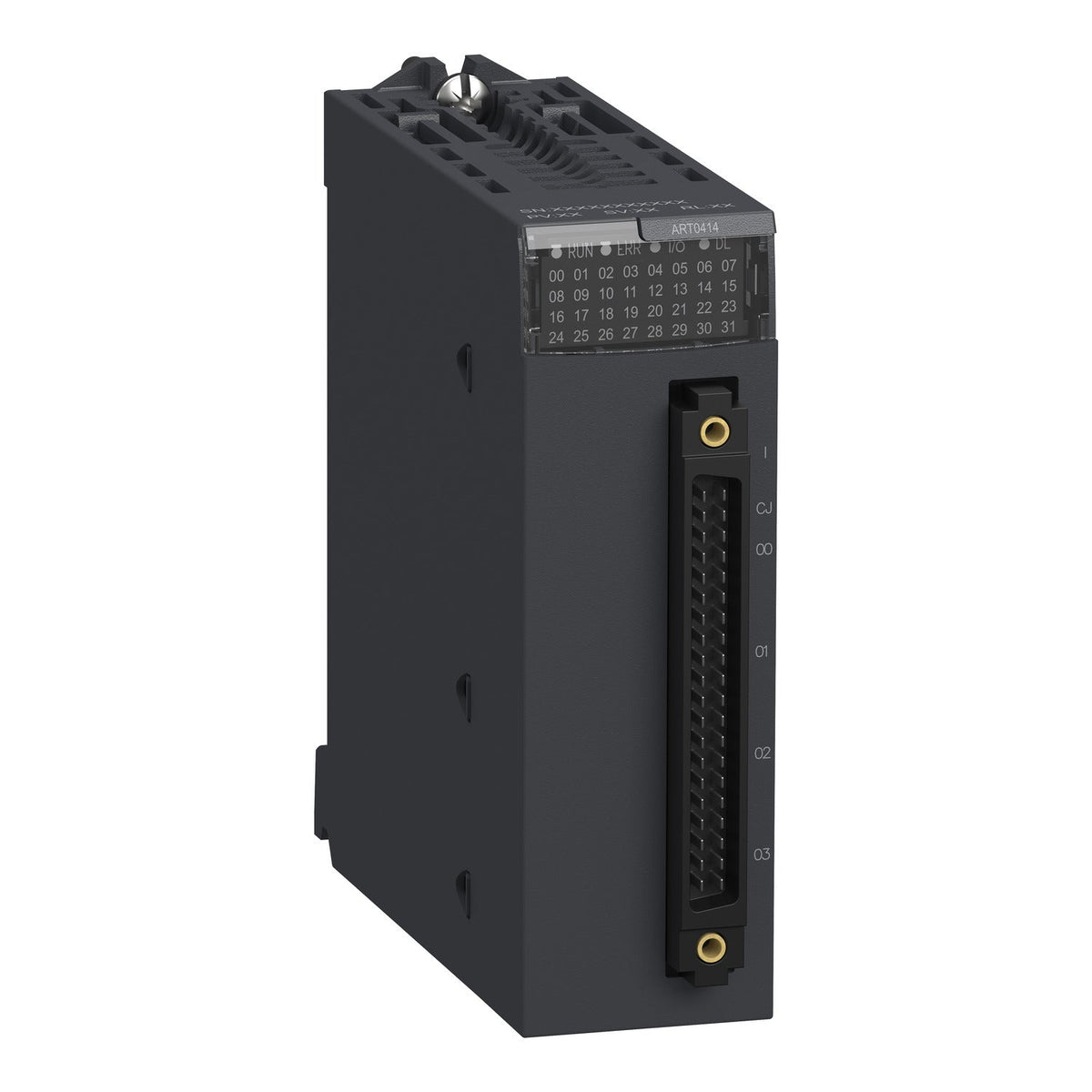

Schneider Electric BMXART0414 Modicon X80 4-Channel Isolated RTD/Thermocouple Input Module PLC I/O Module

Modicon X80 4-channel isolated RTD/thermocouple input module, 15-bit+sign, 0.1C resolution, IP20.

Range of Product
Modicon X80
Product or Component Type
Analog input module
Electrical connection
40 ways 1 connector
Isolation between channels
Isolated
Input level
Low level
Analogue input number
4
EAN
3595863910186
Description

About the BMXART0414

The Schneider Electric BMXART0414 is a Modicon X80 analog input module with 4 isolated, low-level channels for RTD and thermocouple temperature sensors, at 15-bit + sign resolution. It supports Cu10, Ni100, Ni1000, Pt100, and Pt1000 RTDs plus B, E, J, K, L, N, R, S, T, U thermocouples, with external cold-junction compensation.

Certifications & Standards

  • CE
  • EAC
  • RCM
  • UL
  • Merchant Navy
  • CSA
  • IEC 61131-2
  • IEC 61000-6-4
  • IEC 61000-6-2
  • EN 61010-2-201

Selection Notes

The BMXART0414 reads RTD or thermocouple sensors wired through a Telefast connection sub-base into one Modicon X80 rack slot — each of its 4 isolated channels accepts Cu10, Ni100, Ni1000, Pt100, or Pt1000 RTDs, or B, E, J, K, L, N, R, S, T, U thermocouples, with external cold-junction compensation via a Pt100 probe. Choose it over a standard process-signal analog input card whenever the field signal is a temperature sensor rather than 4-20mA or ±10V, since its sigma-delta 16-bit conversion and 0.1 °C measurement resolution are tuned for low-level millivolt inputs rather than higher-level process ranges.

Specification

Full specification

51 values · Last verified 30 Oct 2026

Main 7

Range of Product Modicon X80
Product or Component Type Analog input module
Electrical connection 40 ways 1 connector
Isolation between channels Isolated
Input level Low level
Analogue input number 4
Analogue input type Voltage +/- 1.28 V, Voltage +/- 160 mV, Voltage +/- 320 mV, Voltage +/- 40 mV, Voltage +/- 640 mV, Voltage +/- 80 mV, Resistor 400 Ohm 2 wires, Resistor 400 Ohm 3 wires, Resistor 400 Ohm 4 wires, Resistor 4000 Ohm 2 wires, Resistor 4000 Ohm 3 wires, Resistor 4000 Ohm 4 wires, Temperature probe -100...+260 °C Cu 10, Temperature probe -100...+450 °C Pt 100 UL/JIS, Temperature probe -100...+450 °C Pt 1000 UL/JIS, Temperature probe -200...+850 °C Pt 100 IEC, Temperature probe -200...+850 °C Pt 1000 IEC, Temperature probe -60...+180 °C Ni 100, Temperature probe -60...+180 °C Ni 1000, Thermocouple +130...+1820 °C thermocouple B, Thermocouple +270...+1300 °C thermocouple N, Thermocouple -200...+600 °C thermocouple U, Thermocouple -200...+760 °C thermocouple J, Thermocouple -200...+900 °C thermocouple L, Thermocouple -270...+1000 °C thermocouple E, Thermocouple -270...+1370 °C thermocouple K, Thermocouple -270...+400 °C thermocouple T, Thermocouple -50...+1769 °C thermocouple R, Thermocouple -50...+1769 °C thermocouple S

Complementary 21

Analog/digital conversion Sigma delta 16 bits
Analogue input resolution 15 bits + sign
Permitted overload on inputs +/- 7.5 V +/- 1.28 V, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 80 mV
Common mode rejection 120 dB 50/60 Hz
Differential mode rejection 60 dB 50/60 Hz
Cold junction compensation External by Pt100 probe
Type of filter First order digital filtering
Nominal read cycle time 400 ms with temperature probe, 200 ms with thermocouple
Measurement error +/- 0.7 °C Ni 1000 25 °C, +/- 1.3 °C Ni 1000 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 3 °C Ni 100 0...60 °C, +/- 3 °C thermocouple L 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 4 °C Cu 10 0...60 °C, +/- 4 °C Cu 10 25 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 40 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.2 % of full scale 400 Ohm 0...60 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, 0.05 % of full scale +/- 1.28 V 25 °C, 0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C, 0.05 % of full scale +/- 40 mV 25 °C, 0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 80 mV 25 °C, 0.12 % of full scale 400 Ohm 25 °C, 0.12 % of full scale 4000 Ohm 25 °C
Temperature drift 25 ppm/°C 400 Ohm, 25 ppm/°C 4000 Ohm, 25 ppm/°C Ni 1000, 25 ppm/°C thermocouple B, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple U, 30 ppm/°C +/- 1.28 V, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 80 mV, 30 ppm/°C Cu 10, 30 ppm/°C Ni 100, 30 ppm/°C Pt 100, 30 ppm/°C Pt 1000
Recalibration Internal
Isolation voltage 1400 V DC between channels and bus, 750 V DC between channels, 750 V DC between channels and ground
Detection type Open circuit Cu 10, Open circuit Ni 100, Open circuit Ni 1000, Open circuit Pt 100, Open circuit Pt 1000, Open circuit thermocouple B, Open circuit thermocouple E, Open circuit thermocouple J, Open circuit thermocouple K, Open circuit thermocouple L, Open circuit thermocouple N, Open circuit thermocouple R, Open circuit thermocouple S, Open circuit thermocouple T, Open circuit thermocouple U
Maximum wiring resistance 20 Ohm 2 wires Cu 10, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Pt 100, 20 Ohm 3 wires Cu 10, 20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Pt 100, 200 Ohm 2 wires Ni 1000, 200 Ohm 2 wires Pt 1000, 200 Ohm 3 wires Ni 1000, 200 Ohm 3 wires Pt 1000, 50 Ohm 4 wires Cu 10, 50 Ohm 4 wires Ni 100, 50 Ohm 4 wires Pt 100, 500 Ohm 4 wires Ni 1000, 500 Ohm 4 wires Pt 1000
Measurement resolution 0.1 °C Cu 10, 0.1 °C Ni 100, 0.1 °C Ni 1000, 0.1 °C Pt 100, 0.1 °C Pt 1000, 0.1 °C thermocouple B, 0.1 °C thermocouple E, 0.1 °C thermocouple J, 0.1 °C thermocouple K, 0.1 °C thermocouple L, 0.1 °C thermocouple N, 0.1 °C thermocouple R, 0.1 °C thermocouple S, 0.1 °C thermocouple T, 0.1 °C thermocouple U, 1280/2exp14 mV +/- 1.28 V, 160/2exp14 mV +/- 160 mV, 320/2exp14 mV +/- 320 mV, 40/2exp14 mV +/- 40 mV, 12.5 mOhm 400 Ohm, 125 mOhm 4000 Ohm, 640/2exp14 mV +/- 640 mV, 80/2exp14 mV +/- 80 mV
Maximum conversion value +/- 100 % 400 Ohm, +/- 100 % 4000 Ohm, +/- 102.5 % +/- 1.28 V, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 80 mV
MTBF reliability 1400000 H
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Status LED 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
Net Weight 0.298 lb(US) (0.135 kg)
Current consumption 150 mA 3.3 V DC, 40 mA 24 V DC

Environment 10

Vibration resistance 3 gn
Shock resistance 30 gn
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative humidity 5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection IP20
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product Certifications EAC, RCM, UL, Merchant Navy, CSA, CE
Standards IEC 61131-2, IEC 61000-6-4, IEC 61000-6-2, EN 61010-2-201
Protective treatment Standard version
Show all 51 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXART0414
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595863910186

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin US
Shipping weight 0.135 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
