BMXAMO0802
$743.82 On request Dispatch — · From TürkiyeGet a Quote
Modicon X80

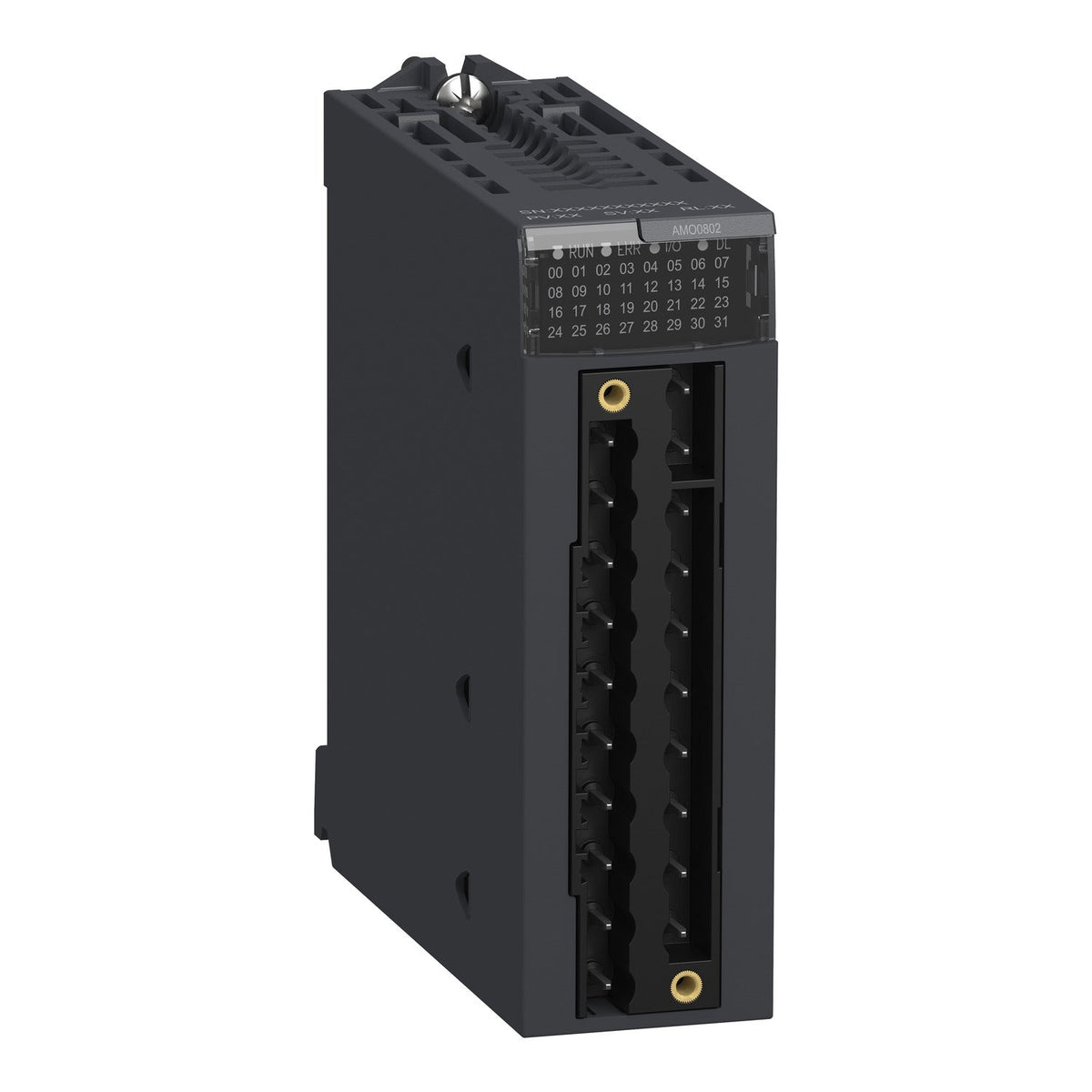

Schneider Electric BMXAMO0802 Modicon X80 8-Channel Analog Output Module Non-Isolated PLC I/O Module

Modicon X80 8-channel non-isolated analog output module, 16-bit, 0-20mA/4-20mA current loops, IP20.

Range of Product
Modicon X80
Product or Component Type
Analog output module
Electrical connection
20 ways 1 connector
Isolation between channels
Non isolated
EAN
3595864081588
Description

About the BMXAMO0802

The Schneider Electric BMXAMO0802 is a Modicon X80 analog output module with 8 non-isolated, high-level current-loop channels and 16-bit resolution. Each channel delivers 0-20mA or 4-20mA signals with a conversion time of ≤4 ms and a load impedance limit of ≤350 Ohm, drawing 135 mA at 24 V DC within an IP20 enclosure rated for a 1,500,000-hour MTBF.

Certifications & Standards

  • CE
  • UL
  • CSA
  • IEC 61131-2

Selection Notes

Pick the BMXAMO0802 when 8 current-loop outputs (0-20 mA / 4-20 mA only, no voltage range) fit in one slot and channel isolation is not required — the non-isolated design trades the 2- and 4-output modules' channel separation for double the output density per slot. Its 4 ms conversion time is slower than the isolated cards' 1 ms, a factor to weigh against loop-tuning requirements on fast analog control. Because there is no ±10V voltage output option on this module, it fits applications standardized on 4-20mA actuators rather than mixed current/voltage output stations, and the fallback mode still lets each channel hold or force a predefined value on a communication loss. The 20-way connector and rack-supplied internal power keep field wiring limited to the 8 current loops themselves, with no separate loop-power supply to install at the module.

Specification

Full specification

49 values · Last verified 30 Oct 2026

Main 4

Range of Product Modicon X80
Product or Component Type Analog output module
Electrical connection 20 ways 1 connector
Isolation between channels Non isolated

Complementary 22

Analogue input resolution 16 bits
Measurement error <= 0.25 % of full scale 0...60 °C, 0.1 % of full scale 25 °C
Temperature drift 45 ppm/°C 0...20 mA, 45 ppm/°C 4...20 mA
Minimum crosstalk attenuation 80 dB
Common mode rejection 80 dB
Isolation voltage 1400 V DC between channels and ground, 1400 V DC between channels and bus
Detection type Open circuit 4...20 mA, Short circuit 0...20 mA
Load impedance ohmic <= 350 Ohm 0...20 mA, <= 350 Ohm 4...20 mA
Output level High level
Analogue output number 8
Analogue output type Current 0...20 mA, Current 4...20 mA
Analogue output resolution 16 bits
Supply Internal power supply via rack
Conversion time <= 4 ms
Maximum conversion value 0...21 mA 0...20 mA, 0...21 mA 4...20 mA
Fallback mode Configurable, Predefined
MTBF reliability 1500000 H
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Status LED 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
Net Weight 0.33 lb(US) (0.15 kg)
Power consumption in W 3.6 W 24 V DC typical, 3.9 W 24 V DC maximum, 0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
Current consumption 150 mA 3.3 V DC, 135 mA 24 V DC

Environment 10

Vibration resistance 3 gn
Shock resistance 30 gn
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative humidity 5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection IP20
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product Certifications CE, RCM, CSA, EAC, Merchant Navy, UL
Standards IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
Protective treatment Standard version
Show all 49 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXAMO0802
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595864081588

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin US
Shipping weight 0.15 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
