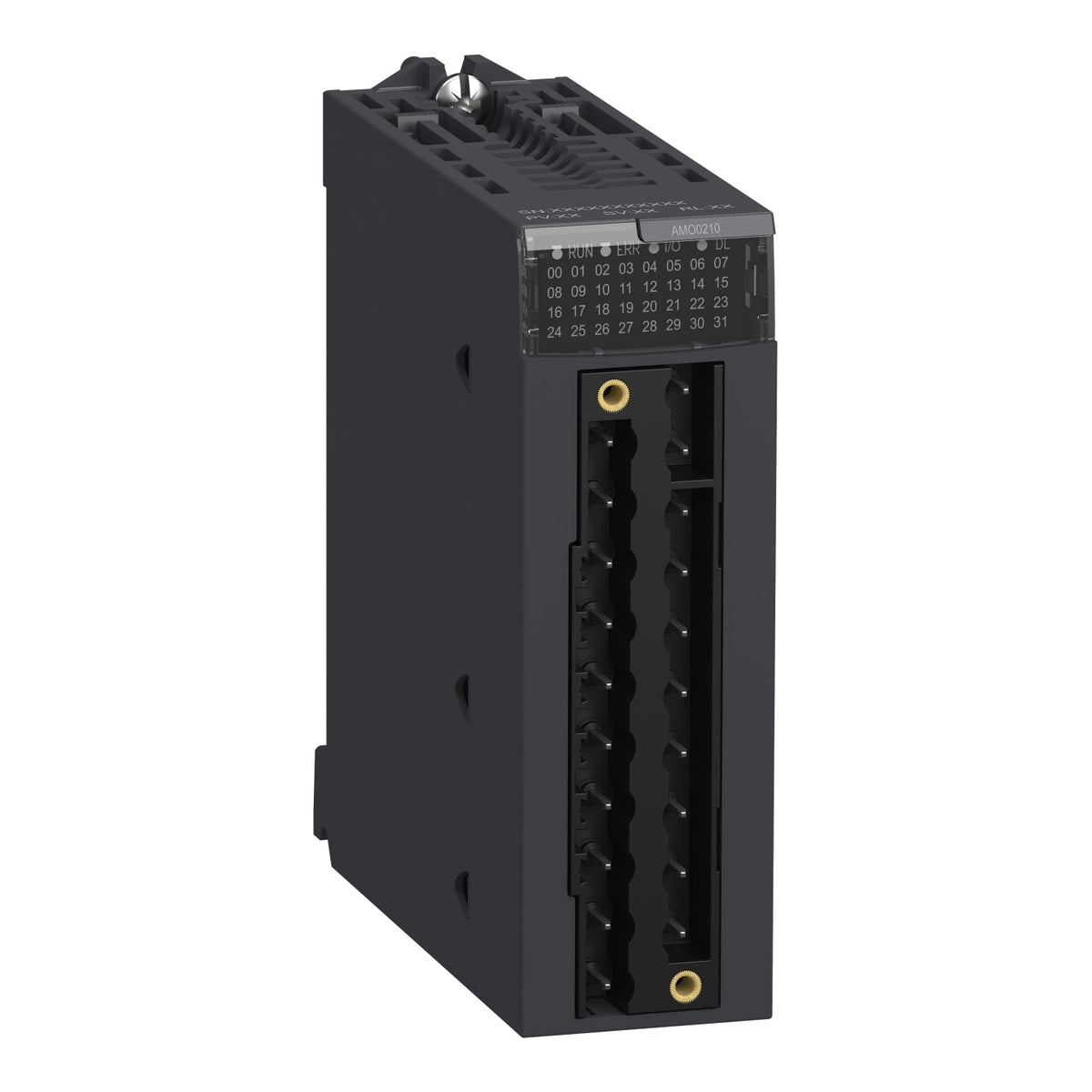

The Schneider Electric BMXAMO0210 is a Modicon X80 analog output module with 2 isolated, high-level channels and 15-bit + sign resolution. Each channel delivers current (0-20mA, 4-20mA) or voltage (±10V) signals, isolated to 1400 V DC from ground and bus and 750 V DC between channels, drawing 110 mA at 24 V DC.
Select the BMXAMO0210 when only 2 isolated analog outputs are needed per slot — each channel is isolated to 1400 V DC from ground/bus and 750 V DC from the other channel, which matters when driving actuators on separate machine sections from a shared rack. Its ≤1 ms conversion time and 15-bit + sign resolution give fine setpoint steps at lower channel density than the 4- and 8-output cards in the same range. The predefined or configurable fallback mode on loss of communication determines whether each output holds its last value or drops to a fixed level, a setting worth reviewing against the safety behaviour expected of the connected actuator. The module's 20-way connector and internal rack-supplied power keep external wiring limited to the two output loops themselves, with no separate output power supply to wire in.
| Range of Product | Modicon X80 |
|---|---|
| Product or Component Type | Analog output module |
| Electrical connection | 20 ways 1 connector |
| Isolation between channels | Isolated |
| Measurement error | <= 0.2 % of full scale 0...60 °C, 0.1 % of full scale 25 °C |
|---|---|
| Temperature drift | 30 ppm/°C |
| Recalibration | Factory calibrated |
| Minimum crosstalk attenuation | 90 dB |
| Common mode rejection | 100 dB |
| Isolation voltage | 1400 V DC between channels and ground, 1400 V DC between channels and bus, 750 V DC between channels |
| Detection type | Open circuit 0...20 mA, Open circuit 4...20 mA, Short circuit +/- 10 V |
| Load impedance ohmic | <= 600 Ohm 0...20 mA, <= 600 Ohm 4...20 mA, >= 1000 Ohm +/- 10 V |
| Output level | High level |
| Analogue output number | 2 |
| Analogue output type | Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V |
| Analogue output resolution | 15 bits + sign |
| Supply | Internal power supply via rack |
| Conversion time | <= 1 ms |
| Maximum conversion value | +/- 11.25 V +/- 10 V, 0...24 mA 0...20 mA, 0...24 mA 4...20 mA |
| Fallback mode | Predefined, Configurable |
| MTBF reliability | 1300000 H |
| Operating altitude | 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor |
| Status LED | 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O |
| Net Weight | 0.317 lb(US) (0.144 kg) |
| Power consumption in W | 2.1 W 24 V DC typical, 2.8 W 24 V DC maximum, 0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum |
| Current consumption | 150 mA 3.3 V DC, 110 mA 24 V DC |
| Vibration resistance | 3 gn |
|---|---|
| Shock resistance | 30 gn |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Product Certifications | CE, RCM, CSA, EAC, Merchant Navy, UL |
| Standards | IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
| Protective treatment | Standard version |
| Part number | BMXAMO0210 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595863910209 |
| Warranty (in months) | 18 |
|---|
| Country of origin | US |
|---|---|
| Shipping weight | 0.144 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
