Modicon X80

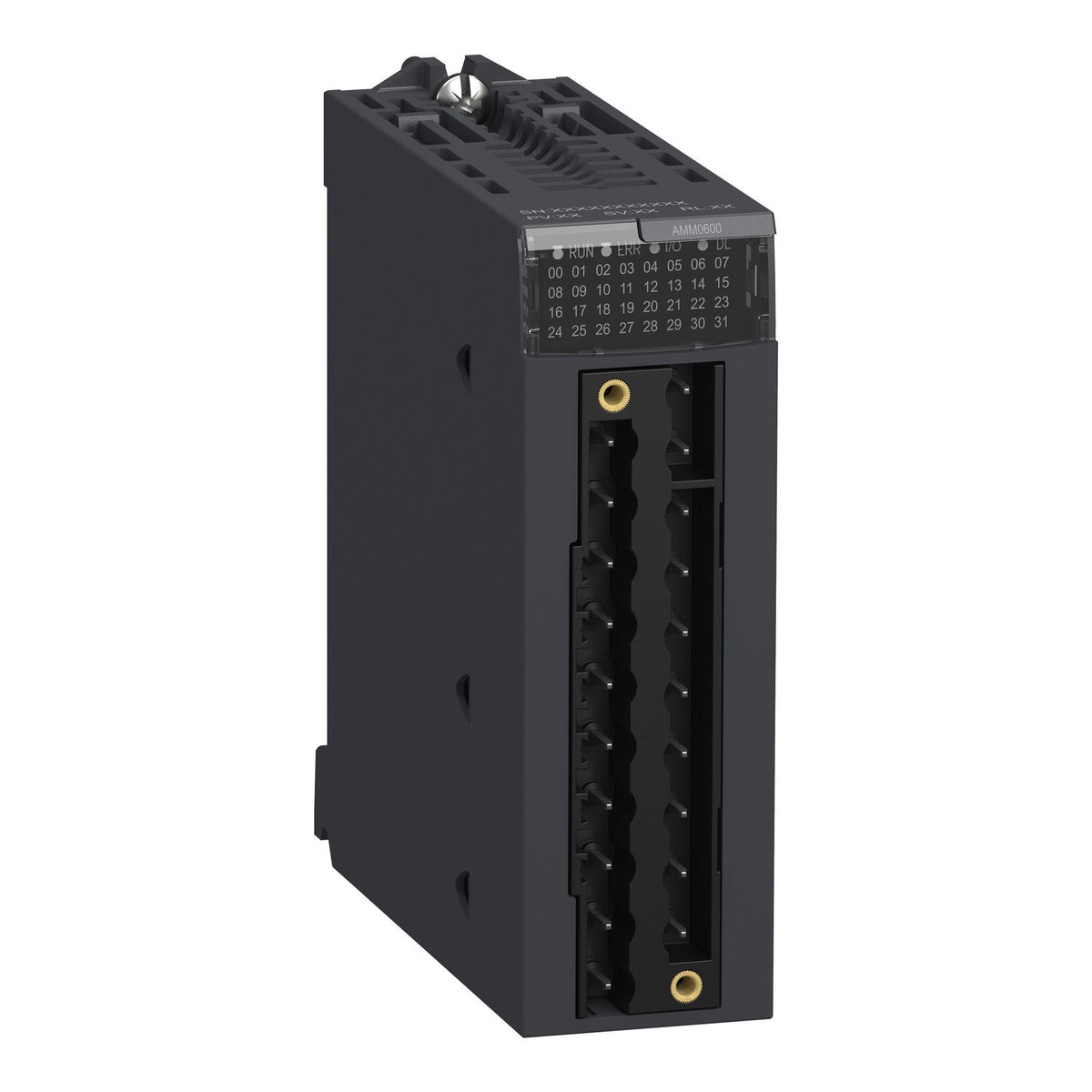

Schneider Electric BMXAMM0600 Modicon X80 4-Input 2-Output Mixed Analog I/O Module PLC I/O Module

Modicon X80 mixed analog I/O module, 4 inputs/2 outputs, non-isolated, 0/4-20mA and 0-10V, IP20.

Range of Product
Modicon X80
Product or Component Type
Mixed analog I/O module
Electrical connection
20 ways 1 connector
Isolation between channels
Non isolated
Input level
High level
Analogue input number
4
EAN
3595863966268
Description

About the BMXAMM0600

The Schneider Electric BMXAMM0600 is a Modicon X80 mixed analog I/O module combining 4 non-isolated inputs and 2 outputs in one slot. Inputs accept current (0-20mA, 4-20mA) or voltage (0-10V, 0-5V, 1-5V, ±10V) with 12-14 bit resolution, while outputs deliver current or ±10V at 11-12 bit resolution, drawing 240 mA at 3.3 V DC.

Certifications & Standards

  • CE
  • RCM
  • CSA
  • EAC
  • Merchant Navy
  • UL
  • IEC 61010-2-201
  • IEC 61131-2

Selection Notes

Choose the BMXAMM0600 when a single slot needs both analog sensing and analog actuation — its 4 inputs and 2 outputs save a rack slot compared with pairing a separate input-only and output-only card, though the trade-off is a lower output measurement accuracy (≤0.6% of full scale) than a dedicated output module achieves. The configurable fallback mode on both outputs holds or forces a predefined value on a communication loss, relevant for any output driving a valve or setpoint signal. Because inputs and outputs are non-isolated from each other in groups, wiring should keep the two I/O types on separate, similarly referenced circuits rather than mixing high-noise actuator loops with sensitive sensor inputs on the same module.

Specification

Full specification

56 values · Last verified 30 Oct 2026

Main 7

Range of Product Modicon X80
Product or Component Type Mixed analog I/O module
Electrical connection 20 ways 1 connector
Isolation between channels Non isolated
Input level High level
Analogue input number 4
Analogue input type Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage 0...10 V, Voltage 0...5 V, Voltage 1...5 V

Complementary 26

Analogue input resolution 12 bits 0...20 mA, 12 bits 0...5 V, 12 bits 1...5 V, 12 bits 4...20 mA, 13 bits 0...10 V, 14 bits +/- 10 V
Permitted overload on inputs +/- 30 mA 0...20 mA, +/- 30 mA 4...20 mA, +/- 30 V +/- 10 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V
Input impedance 250 Ohm
Precision of internal conversion resistor 0.1 % - 15 ppm/°C
Type of filter First order digital filtering by firmware
Fast read cycle time 1 ms + 1 ms x number of channels used
Nominal read cycle time 5 ms for 4 channels
Measurement error 0.25 % of full scale 0...20 mA 25 °C output, 0.25 % of full scale 4...20 mA 25 °C output, <= 0.35 % of full scale +/- 10 V 0...60 °C input, <= 0.35 % of full scale 0...10 V 0...60 °C input, <= 0.35 % of full scale 0...5 V 0...60 °C input, <= 0.35 % of full scale 1...5 V 0...60 °C input, <= 0.5 % of full scale 0...20 mA 0...60 °C input, <= 0.5 % of full scale 4...20 mA 0...60 °C input, <= 0.6 % of full scale +/- 10 V 0...60 °C output, <= 0.6 % of full scale 0...20 mA 0...60 °C output, <= 0.6 % of full scale 4...20 mA 0...60 °C output, 0.25 % of full scale +/- 10 V 25 °C output, 0.25 % of full scale +/- 10 V 25 °C input, 0.25 % of full scale 0...10 V 25 °C input, 0.25 % of full scale 0...5 V 25 °C input, 0.25 % of full scale 1...5 V 25 °C input, 0.35 % of full scale 0...20 mA 25 °C input, 0.35 % of full scale 4...20 mA 25 °C
Temperature drift 100 ppm/°C +/- 10 V output, 100 ppm/°C 0...20 mA output, 100 ppm/°C 4...20 mA output, 30 ppm/°C +/- 10 V input, 30 ppm/°C 0...10 V input, 30 ppm/°C 0...5 V input, 30 ppm/°C 1...5 V input, 50 ppm/°C 0...20 mA input, 50 ppm/°C 4...20 mA input
Recalibration Factory calibrated on outputs, Internal on inputs
Minimum crosstalk attenuation 70 dB
Common mode rejection 80 dB
Isolation voltage 1400 V DC between channels and ground, 1400 V DC between channels and bus, 750 V DC between group of I/O channels
Output level High level
Analogue output number 2
Analogue output type Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V
Analogue output resolution 11 bits, 0...20 mA, 11 bits, 4...20 mA, 12 bits, +/- 10 V
Conversion time <= 2 ms
Maximum conversion value +/- 11.25 V +/- 10 V output, +/- 11.25 V +/- 10 V input, 0...30 mA 0...20 mA input, 0...30 mA 4...20 mA input, +/- 11.25 V 0...10 V input, +/- 11.25 V 0...5 V input, +/- 11.25 V 1...5 V input, 0...24 mA 0...20 mA output, 0...24 mA 4...20 mA output
Fallback mode Predefined, Configurable
MTBF reliability 1400000 H
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Status LED 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
Net Weight 0.342 lb(US) (0.155 kg)
Power consumption in W 2.6 W 24 V DC typical, 3.2 W 24 V DC maximum, 0.35 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
Current consumption 240 mA 3.3 V DC

Environment 10

Vibration resistance 3 gn
Shock resistance 30 gn
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative humidity 5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection IP20
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product Certifications CE, RCM, CSA, EAC, Merchant Navy, UL
Standards IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
Protective treatment Standard version
