Modicon X80

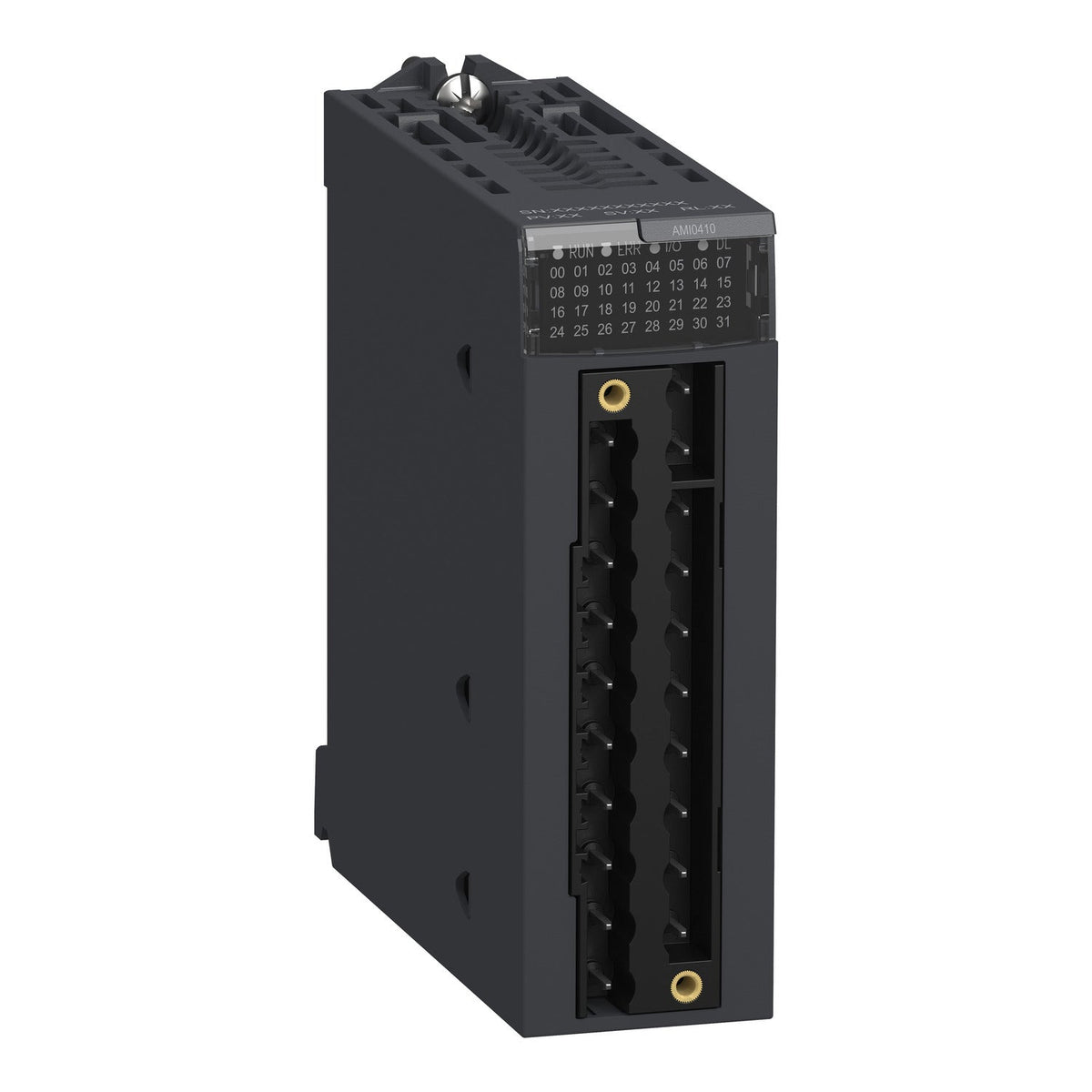

Schneider Electric BMXAMI0410 Modicon X80 4-Channel Isolated Analog Input Module 16-Bit PLC I/O Module

Modicon X80 4-channel isolated analog input module, 16-bit, 0/4-20mA and 0-10V ranges, IP20.

Range of Product
Modicon X80
Product or Component Type
Analog input module
Electrical connection
20 ways 1 connector
Isolation between channels
Isolated
Input level
High level
Analogue input number
4
EAN
3595863910179
Description

About the BMXAMI0410

The Schneider Electric BMXAMI0410 is a Modicon X80 analog input module with 4 isolated, high-level channels and 16-bit resolution. Each channel accepts current (0-20mA, 4-20mA, ±20mA) or voltage (0-10V, 0-5V, 1-5V, ±10V, ±5V) signals, converted internally at 24-bit resolution. Channel-to-bus isolation reaches 1400 V DC, and the module carries an IP20 rating with a 1,200,000-hour MTBF.

Certifications & Standards

  • CE
  • UL
  • CSA
  • RCM
  • EAC
  • Merchant Navy
  • IEC 61010-2-201
  • IEC 61131-2

Selection Notes

Choose the BMXAMI0410 over a higher-channel-count card when a rack slot only needs 4 isolated analog inputs — its 1400 V DC channel-to-bus isolation and internal converter keep each input electrically separate, useful when sensors share a rack with noisy high-power modules. The 16-bit resolution with 24-bit internal conversion gives a measurement error of ≤0.1% of full scale in voltage mode, tighter than the accuracy a non-isolated input card typically holds at the same channel density. Each channel independently accepts current or voltage signals through software configuration, so a single module type covers mixed 4-20mA transmitters and 0-10V sensors on the same station without ordering separate hardware variants.

Specification

Full specification

53 values · Last verified 30 Oct 2026

Main 7

Range of Product Modicon X80
Product or Component Type Analog input module
Electrical connection 20 ways 1 connector
Isolation between channels Isolated
Input level High level
Analogue input number 4
Analogue input type Current +/- 20 mA, Current 0...20 mA, Current 4...20 mA, Voltage +/- 10 V, Voltage +/- 5 V, Voltage 0...10 V, Voltage 0...5 V, Voltage 1...5 V

Complementary 23

Analog/digital conversion 24 bits
Analogue input resolution 16 bits
Permitted overload on inputs +/- 30 V +/- 10 V, +/- 30 V +/- 5 V, +/- 30 V 0...10 V, +/- 30 V 0...5 V, +/- 30 V 1...5 V, +/- 90 mA +/- 20 mA, +/- 90 mA 0...20 mA, +/- 90 mA 4...20 mA
Input impedance 10 MOhm in voltage mode, 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
Precision of internal conversion resistor 0.1 % - 15 ppm/°C
Type of filter First order digital filtering
Fast read cycle time 1 ms + 1 ms x number of channels used
Nominal read cycle time 5 ms for 4 channels
Measurement error <= 0.1 % of full scale +/- 10 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, 0.075 % of full scale +/- 10 V 25 °C, 0.075 % of full scale +/- 5 V 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 1...5 V 25 °C, 0.15 % of full scale +/- 20 mA 25 °C, 0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale 4...20 mA 25 °C
Temperature drift 15 ppm/°C +/- 10 V, 15 ppm/°C +/- 5 V, 15 ppm/°C 0...10 V, 15 ppm/°C 0...5 V, 15 ppm/°C 1...5 V, 30 ppm/°C +/- 20 mA, 30 ppm/°C 0...20 mA, 30 ppm/°C 4...20 mA
Recalibration Internal
Minimum crosstalk attenuation 80 dB
Common mode rejection 90 dB
Digital value format - 32768 to + 32767 in maximum user scale, +/- 10000 by default
Isolation voltage 300 V DC between channels, 1400 V DC between channels and ground, 1400 V DC between channels and bus
Measurement resolution 0.35 mV +/- 10 V, 0.35 mV +/- 5 V, 0.35 mV 0...10 V, 0.35 mV 0...5 V, 0.35 mV 1...5 V, 0.92 µA +/- 20 mA, 0.92 µA 0...20 mA, 0.92 µA 4...20 mA
Maximum conversion value +/- 11.4 V +/- 10 V, +/- 11.4 V +/- 5 V, +/- 11.4 V 0...10 V, +/- 11.4 V 0...5 V, +/- 11.4 V 1...5 V, 0...30 mA +/- 20 mA, 0...30 mA 0...20 mA, 0...30 mA 4...20 mA
MTBF reliability 1200000 H
Operating altitude 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
Status LED 1 LED (Green) RUN, 1 LED per channel (Green) channel diagnostic, 1 LED (Red) ERR, 1 LED (Red) I/O
Net Weight 0.315 lb(US) (0.143 kg)
Power consumption in W 0.82 W 24 V DC typical, 1.30 W 24 V DC maximum, 0.32 W 3.3 V DC typical, 0.48 W 3.3 V DC maximum
Current consumption 150 mA 3.3 V DC, 45 mA 24 V DC

Environment 10

Vibration resistance 3 gn
Shock resistance 30 gn
Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative humidity 5…95 % 131 °F (55 °C) without condensation
IP Degree of Protection IP20
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Product Certifications CE, RCM, CSA, EAC, Merchant Navy, UL
Standards IEC 61010-2-201, IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201
Protective treatment Standard version
Show all 53 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number BMXAMI0410
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3595863910179

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin US
Shipping weight 0.143 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
