Schneider Electric BMEXBP0800 Modicon X80 8-Slot Ethernet Backplane Rack PLC Accessory

% $-333.39

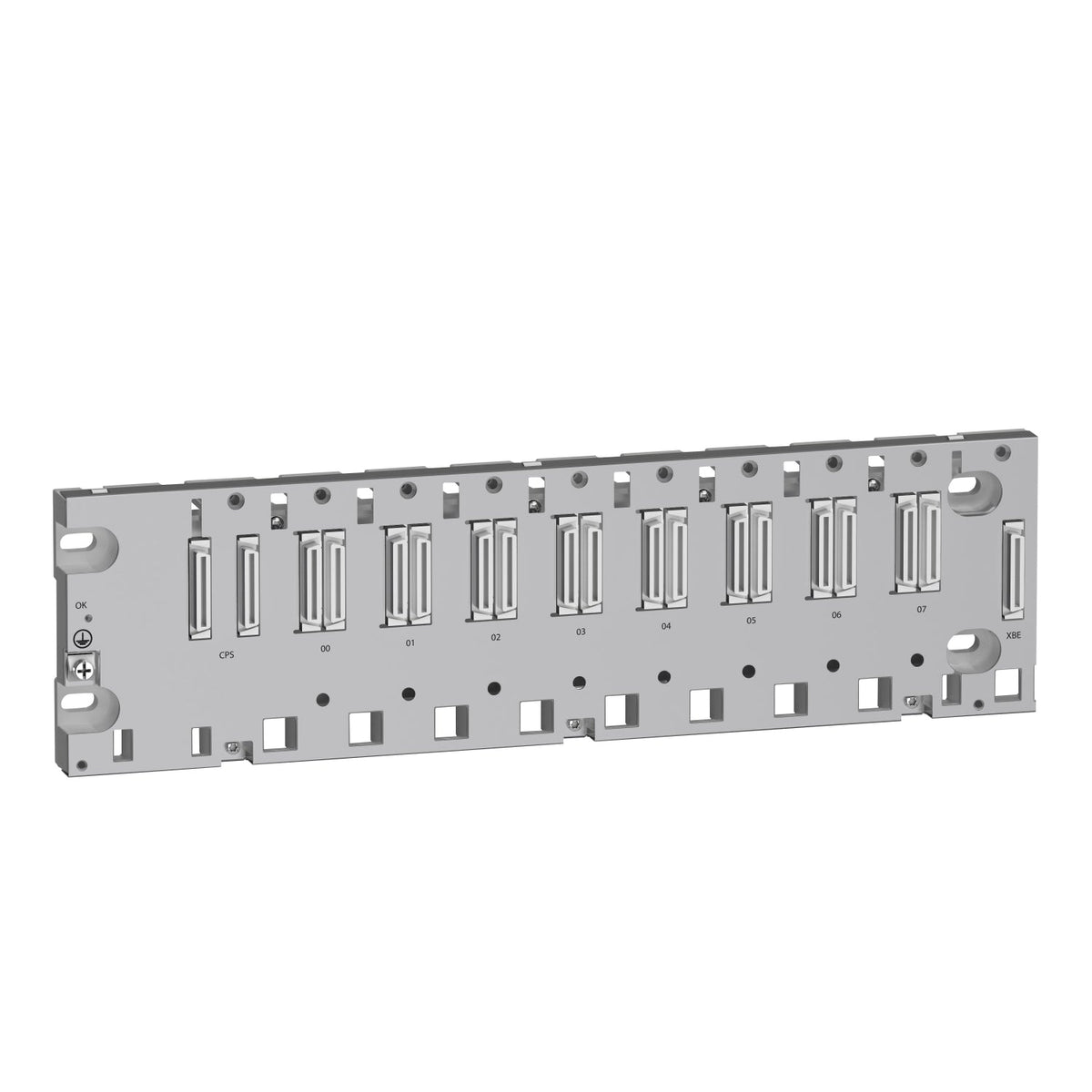

Schneider Electric BMEXBP0800 Modicon X80 8-slot Ethernet backplane rack
Schneider Electric BMEXBP0800 Modicon X80 8-slot Ethernet backplane rack

Schneider Electric BMEXBP0800 Modicon X80 8-Slot Ethernet Backplane Rack PLC Accessory

Brand: Schneider Electric
Reference No: BMEXBP0800
Catalog No: BMEXBP0800
Series: Modicon X80
Tariff Code (HS): 853890
Communication: Ethernet and X-bus backplane (module interconnect)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$333.39

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric BMEXBP0800 is a Modicon X80 rack providing 8 slots on a dual Ethernet and X-bus backplane for Modicon M340 and M580 Programmable Automation Controllers. It accepts I/O modules, BMX/BME processors, specific application modules, and BMXCPS power supplies, drawing 164 mA at 24 V DC and 64 mA at 3.3 V DC, within an IP20 enclosure.

Technical Specifications

Reference BMEXBP0800
Brand Schneider Electric
Range Modicon X80
GTIN 3595864174068
Product Type Rack (Ethernet backplane)
Number of Slots 8 (Bus X + Ethernet)
Product Compatibility I/O modules, BMX/BME processors, specific application modules, BMXCPS power supply
Power Consumption 3.9 W at 24 V DC, 211 mW at 3.3 V DC
Current Consumption 164 mA at 24 V DC, 64 mA at 3.3 V DC
Electrical Connection 1x XBE expansion connector
Fixing Mode 4 panel screws, 4 M6 plate screws, or 35 mm DIN rail clips
MTBF 1,297,516 h
IP Degree of Protection IP20
Ambient Temperature, Operation 0...60 °C
Relative Humidity 5-95%, without condensation
Net Weight 1.06 kg

Certifications & Standards

  • EN 61131-2
  • EN 61000-6-4
  • EN 61000-6-2
  • EN 61010-2-201

Selection Notes

Choose the BMEXBP0800 over the 4-slot rack when a local M580 or M340 station needs 8 I/O slots on one backplane — the connector, fixing modes, and module compatibility stay identical between the two rack sizes, so mixing rack sizes across a system does not change which modules fit. Its 164 mA draw at 24 V DC is higher than the 4-slot rack's, which matters when a BMXCPS supply is shared across several fully populated racks.

Technical Details

Short Description
Modicon X80 8-slot Ethernet and X-bus backplane rack for M340/M580, IP20, 164 mA at 24V DC.
Mounting Type
35 mm DIN rail clips, panel screws, or M6 plate screws
Protection Type
IP20
Catalog No
BMEXBP0800
Delivery Date (Days)
30 days
Model Number
Modicon X80
Tariff Code
853890
