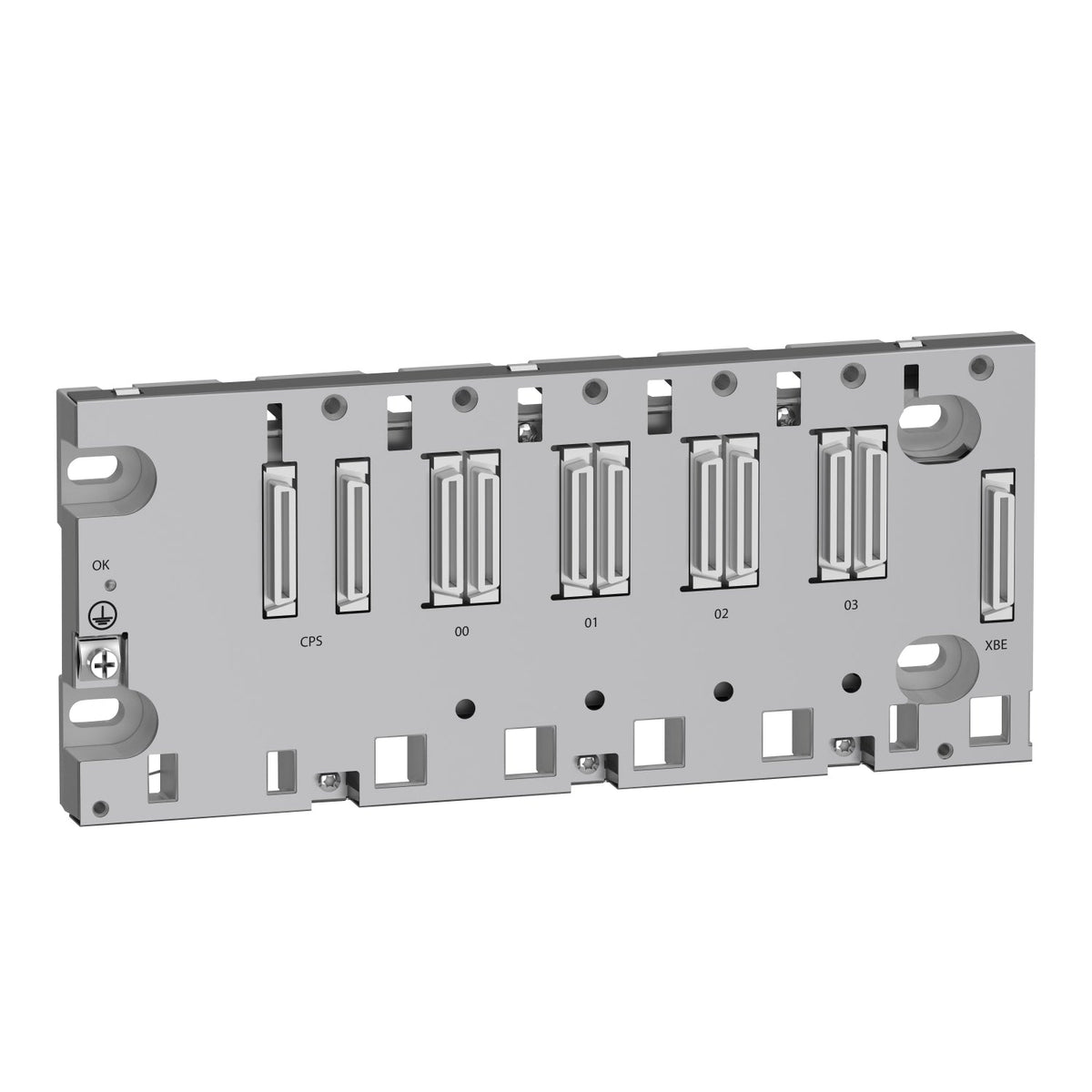

The Schneider Electric BMEXBP0400 is a Modicon X80 rack providing 4 slots on a dual Ethernet and X-bus backplane for Modicon M340 and M580 Programmable Automation Controllers. It accepts I/O modules, BMX/BME processors, specific application modules, and BMXCPS power supplies, drawing 118 mA at 24 V DC and 49 mA at 3.3 V DC, within an IP20 enclosure.
Choose the BMEXBP0400 when a local M580 or M340 rack only needs 4 I/O slots — its dual Ethernet and X-bus backplane accepts the same I/O, power-supply, and processor modules as the larger rack in the range, so module part numbers stay the same when scaling up later. At 118 mA the rack's own 24 V DC draw is lower than the 8-slot rack's, a detail worth checking when sizing the BMXCPS power-supply budget for a fully populated 4-slot station.
| Range of Product | Modicon X80 |
|---|---|
| Accessory / Separate Part Type | Rack |
| Number of slots | 4 bus X + Ethernet |
|---|---|
| Product Compatibility | I/O module, BMX processor, Specific application module, BMXCPS power supply, BME processor |
| Power consumption in W | 162 mW 3.3 V DC, 2.8 W 24 V DC |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 screws 0.17…0.25 in (4.32…6.35 mm) panel, By 4 M6 screws plate, By clips 35 mm symmetrical DIN rail |
| Current consumption | 49 mA 3.3 V DC, 118 mA 24 V DC |
| MTBF reliability | 1588025 H |
| Net Weight | 1.554 lb(US) (0.705 kg) |
| IP Degree of Protection | IP20 |
|---|---|
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative Humidity | 5…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Part number | BMEXBP0400 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595864174037 |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.598 in (6.600 cm) |
| Package 1 Width | 6.024 in (15.300 cm) |
| Package 1 Length | 12.795 in (32.500 cm) |
| Package weight(Lbs) | 26.208 oz (743.000 g) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 13 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 15.748 in (40.000 cm) |
| Package 2 Length | 23.622 in (60.000 cm) |
| Package 2 Weight | 22.719 lb(US) (10.305 kg) |
| Shipping weight | 0.705 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
