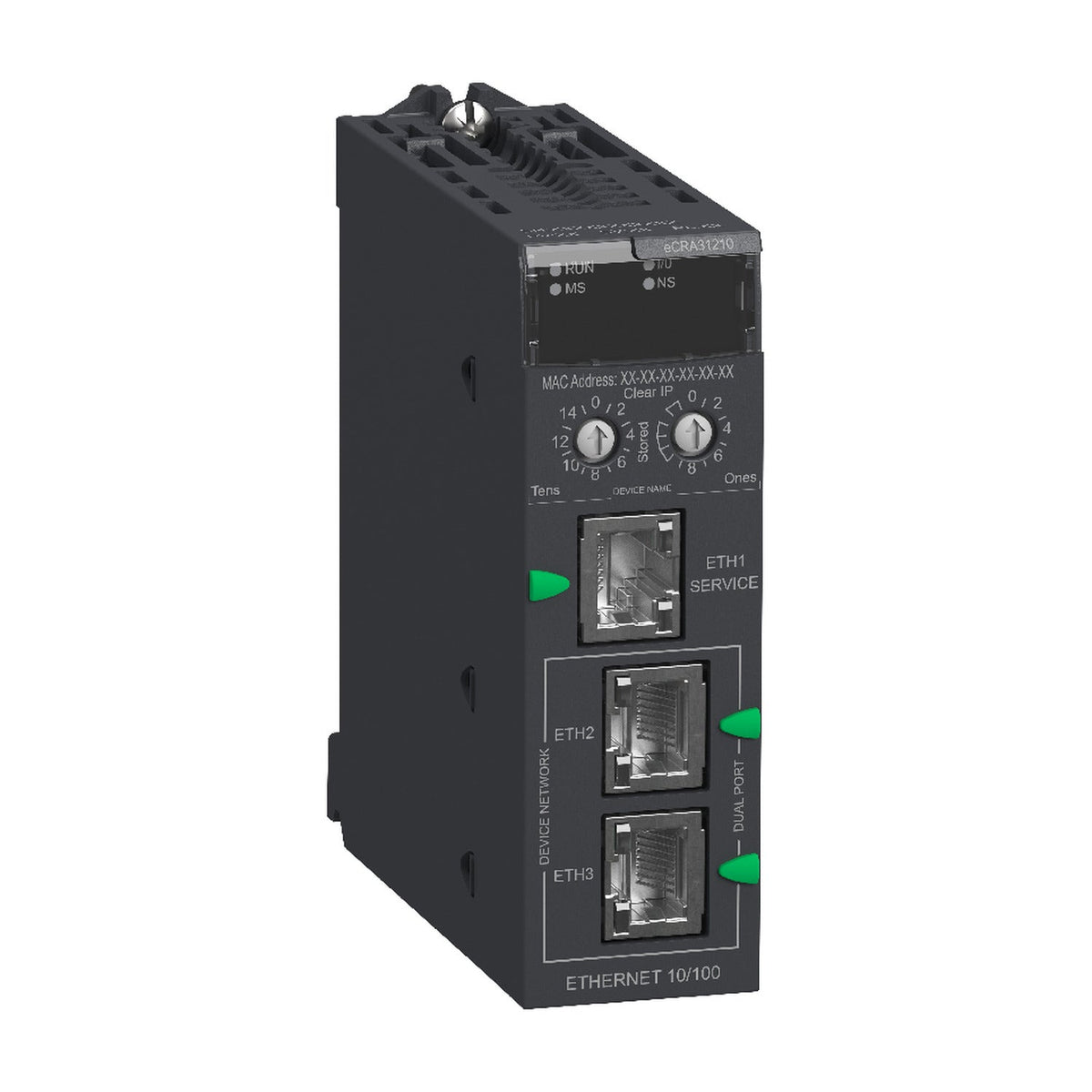

The Schneider Electric BMECRA31210 is a Modicon X80 Ethernet remote I/O (RIO) drop adapter for Modicon M580 distributed architectures. It provides 3 ports — 2 for the Ethernet RIO ring network and 1 service port — over EtherNet/IP, and the drop it heads can support up to 1024 discrete and 256 analog local I/O channels, all within an IP20 enclosure.
Choose the BMECRA31210 when extending a Modicon M580 distributed architecture with a dedicated Ethernet remote I/O drop — its 2-port ring interface plus 1 service port lets the drop join an RSTP ring topology, so a single cable fault does not take the station off-line. The adapter's 1024 discrete / 256 analog I/O ceiling sets the limit for how many local X80 modules the drop can host, so rack population should be planned against that figure rather than the M580 processor's own local I/O budget. Diagnostics run over Modbus TCP, letting maintenance staff query module status on the drop without touching the processor's service port.
| Range of Product | Modicon X80 |
|---|---|
| Range Compatibility | Modicon M580 |
| Product or Component Type | I/O expansion module |
| Device Application | X80 Ethernet RIO drop adaptor |
| Product Specific Application | For remote I/O modules |
| Bus type | Bus X across the remote backplane, Ethernet across the remote backplane |
|---|---|
| Number of port | 3 |
| Integrated connection type | 1 port service or distributed equipment, 2 port Ethernet RIO Network (RSTP) |
| Communication Network Type | IPv4 (internet protocol) |
| Communication Port Protocol | EtherNet/IP |
| Communication Service | Ethernet/IP adapter, RSTP (Ring topology support), Ethernet RIO network, Quality of Service (QoS), CIP Explicit messaging (server), Modbus TCP server for module diagnostics, DHCP client, TFTP client, FTP client, FDR client, SNTP client, SNMP agent |
| Cybersecurity | Enable/disable communication ports, Syslog protocol support |
| Connector Type | 3 RJ45 |
| Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Transmission Rate | 10/100 Mbit/s |
| Port Ethernet | 10/100BASE-TX |
| Function Available | CCOTF (configuration change on the fly), Input data is collected and published to the remote I/O head adaptor, Output modules are updated with the data received from remote I/O head adaptor, Diagnostics for remote I/O devices (Device DDT), Port mirroring, System time stamping, Non-interfering type 1, I/O extension rack |
| Data recording | 10 ms time stamps |
| Topology | Ring |
| Local signalling | 1 LED (green) for module active (RUN), 1 LED (red) for module error (ERR), 1 LED (green/red) for module status (Mod Status), 1 LED (green/red) for network communication status (Net Status), 1 LED (green) for Ethernet link diagnostics (STS) |
| Current Consumption | 1800 mA |
| Input voltage | 3.3 V DC |
| Product compatibility | 0…1024 discrete channel, 0…256 analog channel, counter module, time-stamping module, SSI encoder interface module, motion control module, frequency input module, AS-Interface module, serial link module, fiber converter modules, HART module, weighing module, CANopen master module (standalone CPU only), PROFIBUS module (standalone CPU only), Ethernet switch module |
| Module format | Standard |
| Net Weight | 0.496 lb(US) (0.225 kg) |
| Maximum altitude transport | 9842.5 ft (3000 m) |
| Relative Humidity | 95 % without condensation |
| Fixing Mode | By screws |
| Mounting Mode | Rack-mounted |
| Width | 1.3 in (32 mm) |
| Height | 3.9 in (100 mm) |
| Depth | 3.4 in (87.5 mm) |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Product certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Standards | IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, IEC 61000-6-5, interface type 1 and type 2, IEC 61850-3, location G |
| Environmental characteristic | Standard environment |
| IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Part number | BMECRA31210 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3595864174013 |
| Warranty (in months) | 18 |
|---|
| Country of origin | US |
|---|---|
| Shipping weight | 0.225 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
