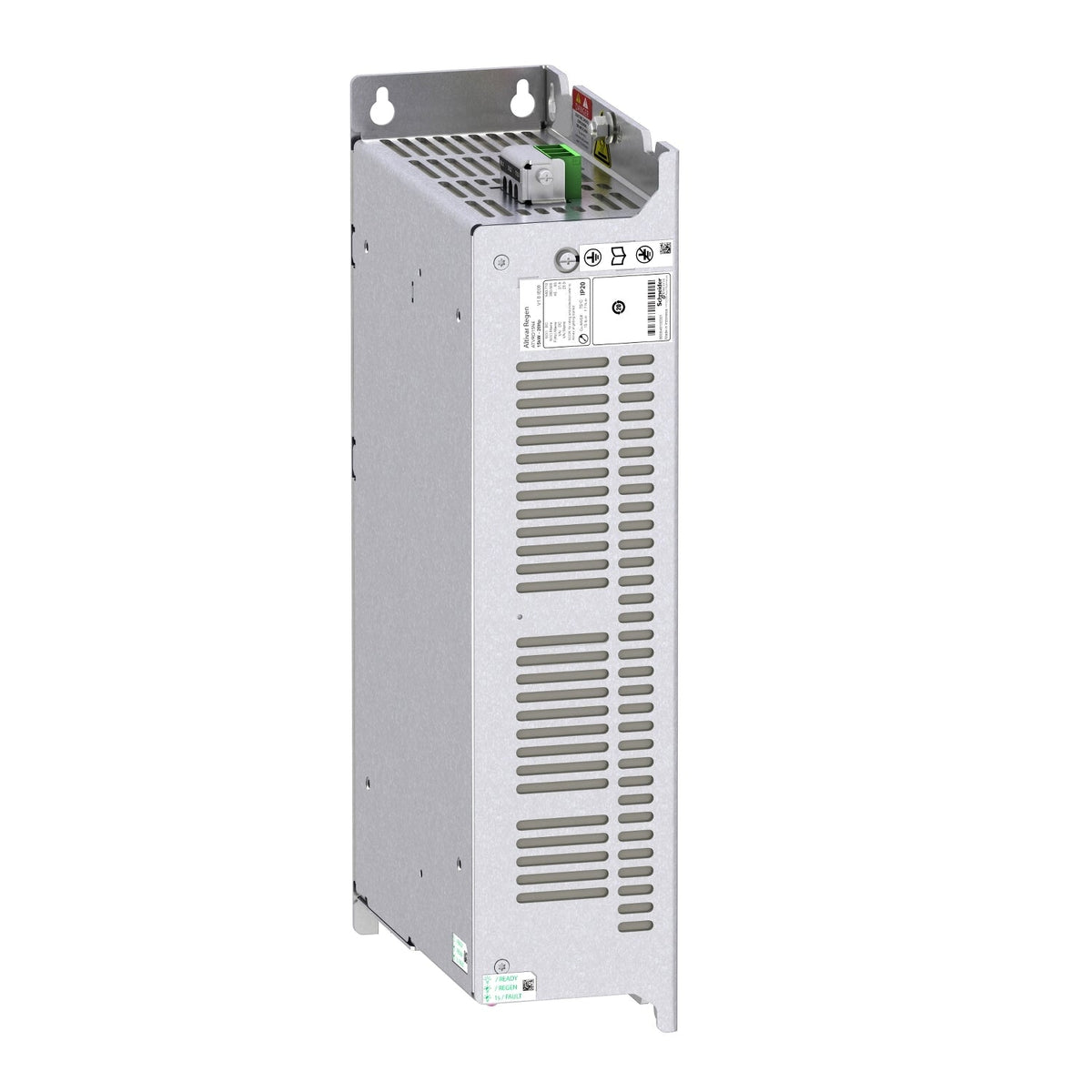

The Schneider Electric ATVRD15N4 is a 15 kW class regenerative unit from the Altivar range, rated for 380-500 V three-phase supply, with 13.5 kW continuous input power and a built-in EMC filter conforming to IEC 61800-3. It returns braking energy from Altivar ATV320, ATV340 and ATV900 drives back to the AC supply instead of dissipating it through a resistor, for heavy braking duty such as material handling and hoisting.
Use the ATVRD15N4 in place of a braking resistor when the application returns energy to the line repeatedly rather than dissipating it as heat: hoists, centrifuges and other loads with frequent regenerative braking cycles benefit most, since the unit feeds recovered energy back to the 380-500 V AC supply instead of a resistor bank. It is sized for compatibility with ATV320, ATV340 and ATV900 drives; match its DC bus voltage range of 456-778 V to the connected drive's bus before installing it, and provide clear airflow around its fan-cooled enclosure, since it relies on forced ventilation rather than natural convection to stay within its rated ambient range.
| Range of Product | Altivar |
|---|---|
| Range Compatibility | Altivar Machine ATV340, Altivar Machine ATV320, Altivar Process ATV900 |
| Product or Component Type | Power module |
| Device Application | Energy regeneration |
| [Us] rated supply voltage | 380...500 V - 15...10 % |
| [Ue] rated operational voltage | 456...778 V DC |
| Rated power in W | 13.5 kW |
| Network Frequency | 45...65 Hz |
|---|---|
| Phase | 3 phase |
| Fixing Mode | By screws |
| Maximum voltage drop at rated load | 3 % |
| Electrical connection | Control removable screw terminal block 0.5...1.5 mm², 20 AWG...16 AWG bottom), Power supply removable screw terminal block 6 mm², 8 AWG top), DC bus removable screw terminal block 6 mm², 8 AWG bottom) |
| Input current | 31.8 A 380 V AC voltage inputs continuous), 27.9 A 500 V AC voltage inputs continuous), 43.1 A 380 V AC voltage inputs transient for 60 s), 36.3 A 500 V AC voltage inputs transient for 60 s) |
| Input power | 13.5 kW 380...500 V AC voltage inputs continuous), 20.3 kW 380...500 V AC voltage inputs transient for 60 s) |
| Maximum DC bus voltage | 300...880 V DC |
| Output Current | 25.9 A 380 V AC continuous), 23.2 A 500 V AC continuous), 36.5 A 380 V AC transient for 60 s), 29.7 A 500 V AC transient for 60 s) |
| Width | 4.1 in (105 mm) |
| Height | 15.7 in (399 mm) |
| Depth | 9.3 in (235 mm) |
| Net Weight | 25.4 lb(US) (11.5 kg) |
| Standards | IEC 61800-3, IEC 61800-5-1 |
|---|---|
| Product Certifications | cUL |
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) without derating, 122…140 °F (50…60 °C) with derating factor |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Operating altitude | <= 3280.84 ft (1000 m) without derating, 3280.84...9842.52 ft (1000...3000 m) with power derating 1 % per 100 m |
| Operating position | Vertical or horizontal position |
| Type of cooling | Fan |
| Environmental characteristic | Chemical pollution resistance class 3C3 IEC 60721-3-3, Dust pollution resistance class 3S2 IEC 60721-3-3 |
| Pollution degree | 2 IEC 61800-5-1 |
| Part number | ATVRD15N4 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481144225 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 11.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of ATVRD15N4 is 25.9 A.
The rated operational voltage of ATVRD15N4 is 380–500 V AC.
The rated motor power of ATVRD15N4 is 13.5 kW.
The tariff (HS) code on file for ATVRD15N4 is 850440.
The EAN (GTIN) of ATVRD15N4 is 3606481144225.
ATVRD15N4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
