Part number
ATV630U40N4
Model no
ATV630
$1,170.13 On request Dispatch — · From TürkiyeGet a Quote

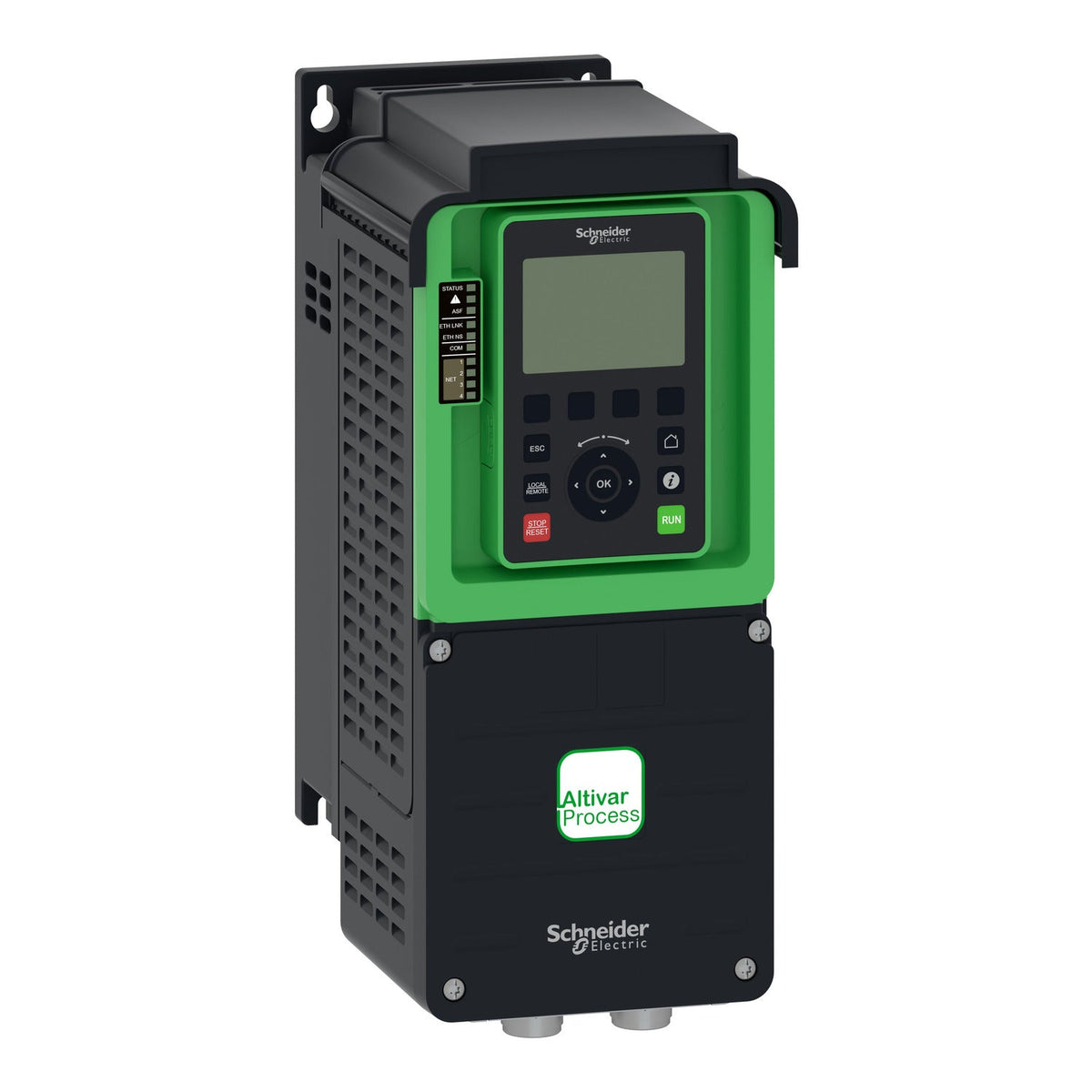

Schneider Electric ATV630U40N4 Altivar Process ATV630 4 kW 380-480 V 3-Phase IP21 Variable Frequency Drive

Schneider Electric ATV630U40N4 Altivar Process ATV630 VFD, 4 kW, 380-480 V 3-phase, IP21, STO safety.

Rated current
9.3 A
Rated operational voltage
380–480 V AC
Motor power
4 kW
Communication
Ethernet, Modbus TCP, Modbus serial (RS 485)
Display
Graphic display terminal
EAN
3606480758133
Description

About the ATV630

The Schneider Electric ATV630U40N4 is a 3-phase Altivar Process ATV630 variable frequency drive rated for 4 kW motors at 380-480 V AC, with a continuous output current of 9.3 A. It integrates Safe Torque Off (STO) SIL 3 safety, native Ethernet, Modbus TCP and Modbus serial ports, and ships in an IP21 / UL Type 1 enclosure for wall mounting. Normal duty allows overload to 120% of In; heavy duty extends to 150% for harder-starting loads.

Certifications & Standards

  • CE
  • UL
  • CSA
  • IEC 61800-5-1

Selection Notes

The ATV630U40N4 covers motors up to 4 kW at 400 V in normal duty (120% overload for 60 s); where starts are longer or more frequent, size to the 3 kW heavy-duty rating (150% overload for 60 s) instead of the higher normal-duty figure. Its 9.3 A continuous output is the number to match against the motor's nameplate current, not the kW label, since actual full-load current varies with motor efficiency. The integrated STO input removes torque directly at the drive without an external contactor, which simplifies wiring a safety circuit around the motor. Native Ethernet and Modbus TCP let a PLC or SCADA system read drive status and write speed references without a separate gateway; step up to a higher-power ATV630 model if the application's motor exceeds this frame's rating.

Applications

The ATV630 targets fluid-handling and process loads: pumps, fans and compressors in water and wastewater treatment, oil and gas, mining and minerals, and food and beverage processing. The Stop-and-Go standby function cuts energy use on intermittent pump and fan duty without extra hardware.

Specification

Full specification

136 values · Last verified 30 Oct 2026

Main 24

Range of Product Altivar Process ATV600
Product Specific Application Process and utilities
Product or Component Type Variable speed drive
Variant Standard version
Device short name ATV630
Mounting Mode Wall mount
Communication Port Protocol Ethernet, Modbus serial, Modbus TCP
[Us] rated supply voltage 380...480 V - 15...10 %
Relative symmetric mains voltage tolerance 10 %
Relative symmetric network frequency tolerance 5 %
nominal output current 9.3 A
IP degree of protection IP21
Product destination Asynchronous motors, Synchronous motors
EMC filter Integrated 164.04 ft (50 m) IEC 61800-3 category C2, Integrated 492.1 ft (150 m) IEC 61800-3 category C3
Degree of protection UL type 1 UL 508C
Type of cooling Forced convection
Supply frequency 50...60 Hz - 5...5 %
Motor power kW 4 kW normal duty), 3 kW heavy duty)
Maximum Horse Power Rating 5 hp normal duty, 4 hp heavy duty
Line current 7.6 A 380 V normal duty), 6.7 A 480 V normal duty), 6 A 380 V heavy duty), 5.4 A 480 V heavy duty)
Continuous output current 9.3 A 4 kHz normal duty, 7.2 A 4 kHz heavy duty
Speed drive output frequency 0.1…500 Hz
Safety function STO (safe torque off) SIL 3
Option card Slot A communication module, Profibus DP V1, Slot A communication module, PROFINET, Slot A communication module, DeviceNet, Slot A communication module, Modbus TCP/EtherNet/IP, Slot A communication module, CANopen daisy chain RJ45, Slot A communication module, CANopen SUB-D 9, Slot A communication module, CANopen screw terminals, Slot A/slot B digital and analog I/O extension module, Slot A/slot B output relay extension module, Slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink

Complementary 74

Discrete input number 8
Discrete input type DI7, DI8 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V)
Discrete input logic 16 preset speeds
Discrete output number 0
Discrete output type Relay outputs R1A, R1B, R1C 250 V AC 3000 mA, Relay outputs R1A, R1B, R1C 30 V DC 3000 mA, Relay outputs R2A, R2C 250 V AC 5000 mA, Relay outputs R2A, R2C 30 V DC 5000 mA, Relay outputs R3A, R3C 250 V AC 5000 mA, Relay outputs R3A, R3C 30 V DC 5000 mA
Analogue input number 3
Analogue input type AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
Analogue output number 2
Analogue output type Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, Software-configurable current AQ1, AQ2 0...20 mA 10 bits, Software-configurable current DQ-, DQ+ 30 V DC, Software-configurable current DQ-, DQ+ 100 mA
Relay output number 3
Relay output type Configurable relay logic R1 fault relay NO/NC 100000 cycles, Configurable relay logic R2 sequence relay NO 100000 cycles, Configurable relay logic R3 sequence relay NO 100000 cycles
Maximum switching current Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current Relay output R1, R2, R3 5 mA 24 V DC
Phase 3 phase
Physical interface Ethernet, 2-wire RS 485
Method of access Slave Modbus TCP
Transmission Rate 10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Transmission frame RTU
Output voltage <= power supply voltage
Permissible temporary current boost 1.1 x In 60 s normal duty), 1.5 x In 60 s heavy duty)
Data format 8 bits, configurable odd, even or no parity
Type of polarization No impedance
Frequency resolution Display unit 0.1 Hz, Analog input 0.012/50 Hz
Electrical connection Control removable screw terminals 0.5...1.5 mm² 20 AWG...16 AWG, Motor screw terminal 2.5...6 mm² 14 AWG...10 AWG, Line side screw terminal 2.5...6 mm² 14 AWG...10 AWG
Connector type RJ45 on the remote graphic terminal)Ethernet/Modbus TCP, RJ45 on the remote graphic terminal)Modbus serial
Exchange mode Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Number of addresses 1…247 Modbus serial
Supply External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection, Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection
Local signalling 3 LEDs for local diagnostic, 3 LEDs (dual colour) for embedded communication status, 4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage
Input compatibility DI1...DI6 discrete input level 1 PLC IEC 61131-2, DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
Sampling duration 2 ms +/- 0.5 ms DI1...DI4) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output
Accuracy +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input, +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Linearity error AI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AO1, AO2 +/- 0.2 % analog output
Refresh time Relay output R1, R2, R3)5 ms +/- 0.5 ms)
Isolation Between power and control terminals
Discrete and process manufacturing Building - HVAC compressor centrifugal, Food and beverage processing other application, Mining mineral and metal fan, Mining mineral and metal pump, Oil and gas fan, Water and waste water other application, Building - HVAC screw compressor, Food and beverage processing pump, Food and beverage processing fan, Food and beverage processing atomization, Oil and gas electro submersible pump (ESP), Oil and gas water injection pump, Oil and gas jet fuel pump, Oil and gas compressor for refinery, Water and waste water centrifuge pump, Water and waste water positive displacement pump, Water and waste water electro submersible pump (ESP), Water and waste water screw pump, Water and waste water lobe compressor, Water and waste water screw compressor, Water and waste water compressor centrifugal, Water and waste water fan, Water and waste water conveyor, Water and waste water mixer
Power range 4…6 kW 380…440 V 3 phase, 4…6 kW 480…500 V 3 phase
Enclosure mounting Wall mounted
4 quadrant operation possible False
Asynchronous motor control profile Constant torque standard, Optimized torque mode, Variable torque standard
Synchronous motor control profile Permanent magnet motor, Synchronous reluctance motor
Maximum output frequency 500 kHz
Acceleration and deceleration ramps Linear adjustable separately from 0.01...9999 s
Motor slip compensation Adjustable, Can be suppressed, Not available in permanent magnet motor law, Automatic whatever the load
Switching frequency 2...12 kHz adjustable, 4...12 kHz with derating factor
Nominal switching frequency 4 kHz
Braking to standstill By DC injection
Brake chopper integrated False
Maximum Input Current per Phase 7.6 A
Maximum output voltage 480.0 V
Apparent power 5.6 kVA 480 V normal duty), 4.5 kVA 480 V heavy duty)
Maximum transient current 10.8 A 60 s heavy duty), 10.2 A 60 s normal duty)
Network Frequency 50-60 Hz
Prospective line Isc 50 kA
Base load current at high overload 7.2 A
Base load current at low overload 9.3 A
Power dissipation in W Natural convection 33 W 380 V 4 kHz, Forced convection 97 W 380 V 4 kHz
With safety function Safely Limited Speed (SLS) False
With safety function Safe brake management (SBC/SBT) False
With safety function Safe Operating Stop (SOS) False
With safety function Safe Position (SP) False
With safety function Safe programmable logic False
With safety function Safe Speed Monitor (SSM) False
With safety function Safe Stop 1 (SS1) False
With sft fct Safe Stop 2 (SS2) False
With safety function Safe torque off (STO) True
With safety function Safely Limited Position (SLP) False
With safety function Safe Direction (SDI) False
Protection type Thermal protection motor, Safe torque off motor, Motor phase break motor, Thermal protection drive, Safe torque off drive, Overheating drive, Overcurrent between output phases and earth drive, Overload of output voltage drive, Short-circuit protection drive, Motor phase break drive, Overvoltages on the DC bus drive, Line supply overvoltage drive, Line supply undervoltage drive, Line supply phase loss drive, Overspeed drive, Break on the control circuit drive
Quantity per Set 1
Width 5.7 in (144 mm)
Height 13.8 in (350 mm)
Depth 8.0 in (203 mm)
Net Weight 10.1 lb(US) (4.6 kg)

Environment 24

Insulation resistance > 1 MOhm 500 V DC for 1 minute to earth
Noise level 54.5 dB 86/188/EEC
Pollution degree 2 IEC 61800-5-1
Vibration resistance 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn 11 ms IEC 60068-2-27
Relative humidity 5…95 % without condensation IEC 60068-2-3
Ambient air temperature for operation 5…122 °F (-15…50 °C) (without derating), 122…140 °F (50…60 °C) (with derating factor)
Operating altitude <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m
Operating position Vertical +/- 10 degree
Product Certifications DNV-GL, ATEX zone 2/22, ATEX INERIS, TÜV, CSA, UL
Marking CE
Standards UL 508C, IEC 61800-3, IEC 61800-3 environment 1 category C2, EN/IEC 61800-3 environment 2 category C3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Maximum THDI <48 % full load IEC 61000-3-12
Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Environmental class (during operation) Class 3C3 according to IEC 60721-3-3, Class 3S3 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation) 150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation) 10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation) 1.5 mm at 2...13 Hz
Permitted relative humidity (during operation) Class 3K5 according to EN 60721-3
Volume of cooling air 10038.7 Gal/hr(US) (38 m3/h)
Overvoltage category III
Regulation loop Adjustable PID regulator
Ambient air transport temperature -40…158 °F (-40…70 °C)
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Show all 136 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number ATV630U40N4
Type designation ATV630
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480758133

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 4.6 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
