Part number
ATV630D45N4
Model no
ATV630
$4,365.52 On request Dispatch — · From Türkiye

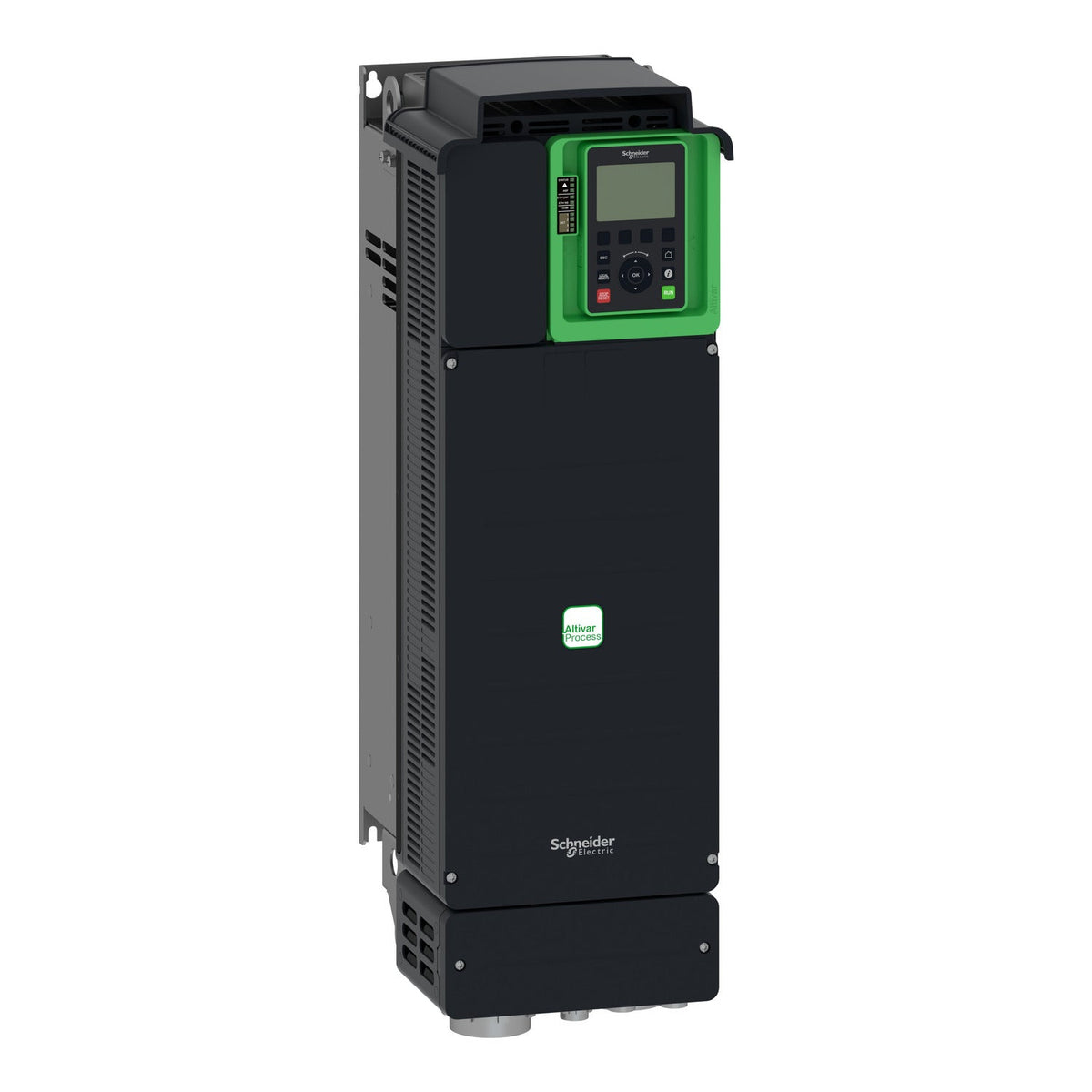

Schneider Electric ATV630D45N4 Altivar Process ATV630 45 kW 380-480 V 3-Phase IP21 Variable Frequency Drive

Schneider Electric ATV630D45N4 – Altivar ATV630 VFD, 45 kW, 380-480 V, IP21, Modbus TCP/serial.

Rated current
88 A
Rated operational voltage
380–480 V AC
Motor power
45 kW
Communication
Modbus TCP (Ethernet), Modbus serial (RS 485)
Display
Graphic display terminal
EAN
3606480701436
Description

About the ATV630

The Schneider Electric ATV630D45N4 is an Altivar Process ATV630 variable frequency drive rated for 45 kW motors in normal duty (37 kW heavy duty) on a 380-480 V three-phase supply. Its continuous output current is 88 A in normal duty (74.5 A heavy duty), housed in an IP21 / UL Type 1 enclosure. Built-in Modbus TCP and Modbus serial ports plus an integrated STO (SIL 3) safety function are standard.

Certifications & Standards

  • CE
  • UL
  • UL 508C
  • CSA
  • TÜV
  • DNV-GL
  • ATEX zone 2/22
  • ATEX INERIS
  • IEC 61800-3
  • IEC 61800-3 environment 1 category C2
  • EN/IEC 61800-3 environment 2 category C3
  • IEC 61800-5-1
  • IEC 61000-3-12
  • IEC 60721-3
  • IEC 61508
  • IEC 13849-1

Selection Notes

The ATV630D45N4 covers motors up to 45 kW in normal duty (120% overload) or 37 kW where the application needs the 150% heavy-duty overload margin, such as positive-displacement pumps or screw compressors. Its 88 A continuous output current sets the ceiling for constant-torque loads; for variable-torque loads like centrifugal fans the same frame can drive a larger motor within the heavy-duty current limit. The integrated STO function allows a safety circuit to be wired directly into the drive without an external contactor.

Applications

The ATV630 targets fluid-handling and utility processes – water and wastewater pumps, HVAC fans and compressors, and oil and gas transfer pumps – where its built-in PID regulator and 'Stop and Go' standby mode reduce energy use during idle periods.

Specification

Full specification

136 values · Last verified 30 Oct 2026

Main 24

Range of Product Altivar Process ATV600
Product Specific Application Process and utilities
Product or Component Type Variable speed drive
Variant Standard version
Device short name ATV630
Mounting Mode Wall mount
Communication Port Protocol Modbus serial, Ethernet, Modbus TCP
[Us] rated supply voltage 380...480 V - 15...10 %
Relative symmetric mains voltage tolerance 10 %
Relative symmetric network frequency tolerance 5 %
nominal output current 88.0 A
IP degree of protection IP21
Product destination Asynchronous motors, Synchronous motors
EMC filter Integrated 164.04 ft (50 m) IEC 61800-3 category C2, Integrated 492.1 ft (150 m) IEC 61800-3 category C3
Degree of protection UL type 1 UL 508C
Type of cooling Forced convection
Supply frequency 50...60 Hz - 5...5 %
Motor power kW 45 kW normal duty), 37 kW heavy duty)
Maximum Horse Power Rating 60 hp normal duty, 50 hp heavy duty
Line current 79.8 A 380 V normal duty), 69.1 A 480 V normal duty), 67.1 A 380 V heavy duty), 59 A 480 V heavy duty)
Continuous output current 88 A 4 kHz normal duty, 74.5 A 4 kHz heavy duty
Speed drive output frequency 0.1…500 Hz
Safety function STO (safe torque off) SIL 3
Option card Slot A communication module, Profibus DP V1, Slot A communication module, PROFINET, Slot A communication module, DeviceNet, Slot A communication module, Modbus TCP/EtherNet/IP, Slot A communication module, CANopen daisy chain RJ45, Slot A communication module, CANopen SUB-D 9, Slot A communication module, CANopen screw terminals, Slot A/slot B digital and analog I/O extension module, Slot A/slot B output relay extension module, Slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink

Complementary 74

Discrete input number 8
Discrete input type DI7, DI8 programmable as pulse input 0…30 kHz, 24 V DC <= 30 V)
Discrete input logic 16 preset speeds
Discrete output number 0
Discrete output type Relay outputs R1A, R1B, R1C 250 V AC 3000 mA, Relay outputs R1A, R1B, R1C 30 V DC 3000 mA, Relay outputs R2A, R2C 250 V AC 5000 mA, Relay outputs R2A, R2C 30 V DC 5000 mA, Relay outputs R3A, R3C 250 V AC 5000 mA, Relay outputs R3A, R3C 30 V DC 5000 mA
Analogue input number 3
Analogue input type AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
Analogue output number 2
Analogue output type Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, Software-configurable current AQ1, AQ2 0...20 mA 10 bits, Software-configurable current DQ-, DQ+ 30 V DC, Software-configurable current DQ-, DQ+ 100 mA
Relay output number 3
Relay output type Configurable relay logic R1 fault relay NO/NC 100000 cycles, Configurable relay logic R2 sequence relay NO 100000 cycles, Configurable relay logic R3 sequence relay NO 100000 cycles
Maximum switching current Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Minimum switching current Relay output R1, R2, R3 5 mA 24 V DC
Phase 3 phase
Physical interface Ethernet, 2-wire RS 485
Method of access Slave Modbus TCP
Transmission Rate 10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Transmission frame RTU
Output voltage <= power supply voltage
Permissible temporary current boost 1.1 x In 60 s normal duty), 1.5 x In 60 s heavy duty)
Data format 8 bits, configurable odd, even or no parity
Type of polarization No impedance
Frequency resolution Display unit 0.1 Hz, Analog input 0.012/50 Hz
Electrical connection Control removable screw terminals 0.5...1.5 mm² 20 AWG...16 AWG, Line side screw terminal 35...50 mm² 2 AWG...1 AWG, Motor screw terminal 50 mm² 1 AWG
Connector type RJ45 on the remote graphic terminal)Ethernet/Modbus TCP, RJ45 on the remote graphic terminal)Modbus serial
Exchange mode Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Number of addresses 1…247 Modbus serial
Supply External supply for digital inputs 24 V DC 19…30 V), <1.25 mA overload and short-circuit protection, Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, Internal supply for digital inputs and STO 24 V DC 21…27 V), <200 mA overload and short-circuit protection
Local signalling 3 LEDs for local diagnostic, 3 LEDs (dual colour) for embedded communication status, 4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage
Input compatibility DI1...DI6 discrete input level 1 PLC IEC 61131-2, DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
Sampling duration 2 ms +/- 0.5 ms DI1...DI4) - discrete input, 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output
Accuracy +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input, +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Linearity error AI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AO1, AO2 +/- 0.2 % analog output
Refresh time Relay output R1, R2, R3)5 ms +/- 0.5 ms)
Isolation Between power and control terminals
Discrete and process manufacturing Building - HVAC compressor centrifugal, Food and beverage processing other application, Mining mineral and metal fan, Mining mineral and metal pump, Oil and gas fan, Water and waste water other application, Building - HVAC screw compressor, Food and beverage processing pump, Food and beverage processing fan, Food and beverage processing atomization, Oil and gas electro submersible pump (ESP), Oil and gas water injection pump, Oil and gas jet fuel pump, Oil and gas compressor for refinery, Water and waste water centrifuge pump, Water and waste water positive displacement pump, Water and waste water electro submersible pump (ESP), Water and waste water screw pump, Water and waste water lobe compressor, Water and waste water screw compressor, Water and waste water compressor centrifugal, Water and waste water fan, Water and waste water conveyor, Water and waste water mixer
Power range 30…50 kW 380…440 V 3 phase, 30…50 kW 480…500 V 3 phase
Enclosure mounting Wall mounted
4 quadrant operation possible False
Asynchronous motor control profile Constant torque standard, Optimized torque mode, Variable torque standard
Synchronous motor control profile Permanent magnet motor, Synchronous reluctance motor
Maximum output frequency 500 kHz
Acceleration and deceleration ramps Linear adjustable separately from 0.01...9999 s
Motor slip compensation Adjustable, Can be suppressed, Not available in permanent magnet motor law, Automatic whatever the load
Switching frequency 2...12 kHz adjustable, 4...12 kHz with derating factor
Nominal switching frequency 4 kHz
Braking to standstill By DC injection
Brake chopper integrated False
Maximum Input Current per Phase 79.8 A
Maximum output voltage 480.0 V
Apparent power 57.4 kVA 480 V normal duty), 49.1 kVA 480 V heavy duty)
Maximum transient current 96.8 A 60 s normal duty), 111.8 A 60 s heavy duty)
Network Frequency 50-60 Hz
Prospective line Isc 50 kA
Base load current at high overload 74.5 A
Base load current at low overload 88.0 A
Power dissipation in W Natural convection 121 W 380 V 4 kHz, Forced convection 943 W 380 V 4 kHz
With safety function Safely Limited Speed (SLS) False
With safety function Safe brake management (SBC/SBT) False
With safety function Safe Operating Stop (SOS) False
With safety function Safe Position (SP) False
With safety function Safe programmable logic False
With safety function Safe Speed Monitor (SSM) False
With safety function Safe Stop 1 (SS1) False
With sft fct Safe Stop 2 (SS2) False
With safety function Safe torque off (STO) True
With safety function Safely Limited Position (SLP) False
With safety function Safe Direction (SDI) False
Protection type Thermal protection motor, Safe torque off motor, Motor phase break motor, Thermal protection drive, Safe torque off drive, Overheating drive, Overcurrent between output phases and earth drive, Overload of output voltage drive, Short-circuit protection drive, Motor phase break drive, Overvoltages on the DC bus drive, Line supply overvoltage drive, Line supply undervoltage drive, Line supply phase loss drive, Overspeed drive, Break on the control circuit drive
Quantity per Set 1
Width 8.9 in (226 mm)
Height 26.5 in (673 mm)
Depth 10.7 in (271 mm)
Net Weight 63.3 lb(US) (28.7 kg)

Environment 24

Insulation resistance > 1 MOhm 500 V DC for 1 minute to earth
Noise level 63.5 dB 86/188/EEC
Pollution degree 2 IEC 61800-5-1
Vibration resistance 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn 11 ms IEC 60068-2-27
Relative humidity 5…95 % without condensation IEC 60068-2-3
Ambient air temperature for operation 5…122 °F (-15…50 °C) (without derating), 122…140 °F (50…60 °C) (with derating factor)
Operating altitude <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m
Operating position Vertical +/- 10 degree
Product Certifications UL, ATEX zone 2/22, ATEX INERIS, CSA, TÜV, DNV-GL
Marking CE
Standards UL 508C, IEC 61800-3, IEC 61800-3 environment 1 category C2, EN/IEC 61800-3 environment 2 category C3, IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Maximum THDI <48 % from 80...100 % of load IEC 61000-3-12
Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Environmental class (during operation) Class 3C3 according to IEC 60721-3-3, Class 3S3 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation) 150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation) 10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation) 1.5 mm at 2...13 Hz
Permitted relative humidity (during operation) Class 3K5 according to EN 60721-3
Volume of cooling air 63402.4 Gal/hr(US) (240 m3/h)
Overvoltage category III
Regulation loop Adjustable PID regulator
Ambient air transport temperature -40…158 °F (-40…70 °C)
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Show all 136 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number ATV630D45N4
Type designation ATV630
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480701436

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin IN
Shipping weight 28.7 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for ATV630D45N4

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • UL 508C
  • IEC 61800-3
  • IEC 61800-3 environment 1 category C2
  • EN/IEC 61800-3 environment 2 category C3
  • IEC 61800-5-1
  • IEC 61000-3-12
  • IEC 60721-3
  • IEC 61508
  • IEC 13849-1
Quick answers

Questions about the ATV630

What is the rated current of ATV630?

The rated current of ATV630 is 88 A.

Which supply voltage is ATV630 rated for?

The rated operational voltage of ATV630 is 380–480 V AC.

What motor power is ATV630 rated for?

The rated motor power of ATV630 is 45 kW.

What is the HS code of ATV630 for customs?

The tariff (HS) code on file for ATV630 is 850440.

What is the EAN of ATV630?

The EAN (GTIN) of ATV630 is 3606480701436.

Where does ATV630 ship from, and how fast?

ATV630 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
