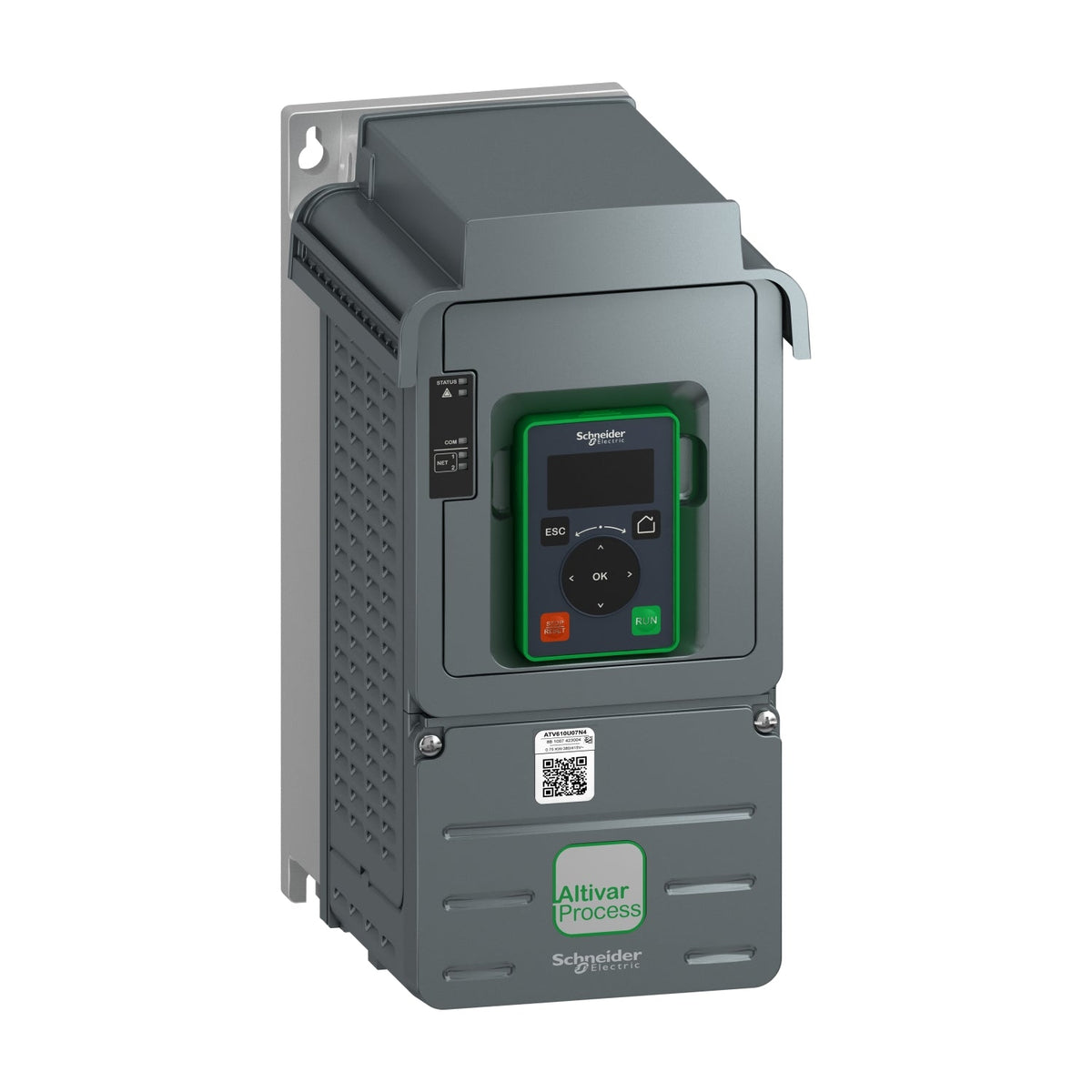

Schneider Electric ATV610U07N4 Easy Altivar 610 ATV610 0.75 kW 380-460 V 3-Phase IP20 Variable Frequency Drive

The Schneider Electric ATV610U07N4 is a 0.75 kW variable frequency drive from the Easy Altivar 610 range, rated for 380-460 V three-phase supply with a continuous output current of 2.2 A at 4 kHz switching frequency. Built for fan, pump, compressor and conveyor applications, it carries IP20 protection, an integrated EMC filter conforming to IEC 61800-3 category C3, and Modbus serial communication as standard.

Technical Specifications

Certifications & Standards

• CE
• IEC 61800-3
• IEC 61800-5-1
• IEC 60721-3

Selection Notes

The ATV610U07N4 runs two duty ratings on the same frame: Normal Duty at 0.75 kW / 2.2 A continuous with a 109% transient overload for 60 s, or Heavy Duty at 0.37 kW / 1.5 A continuous with a 153% overload for 60 s. Pick Normal Duty for centrifugal loads such as fans, pumps and compressors, where torque demand stays flat and the higher continuous rating covers the motor's full nameplate power. Pick Heavy Duty for conveyors and other constant-torque or shock-loaded applications, where the lower continuous current trades headroom for the larger short-time overload margin. Both ratings run from the same ATV610U07N4 unit; the choice is a parameter setting, not a different part number.
