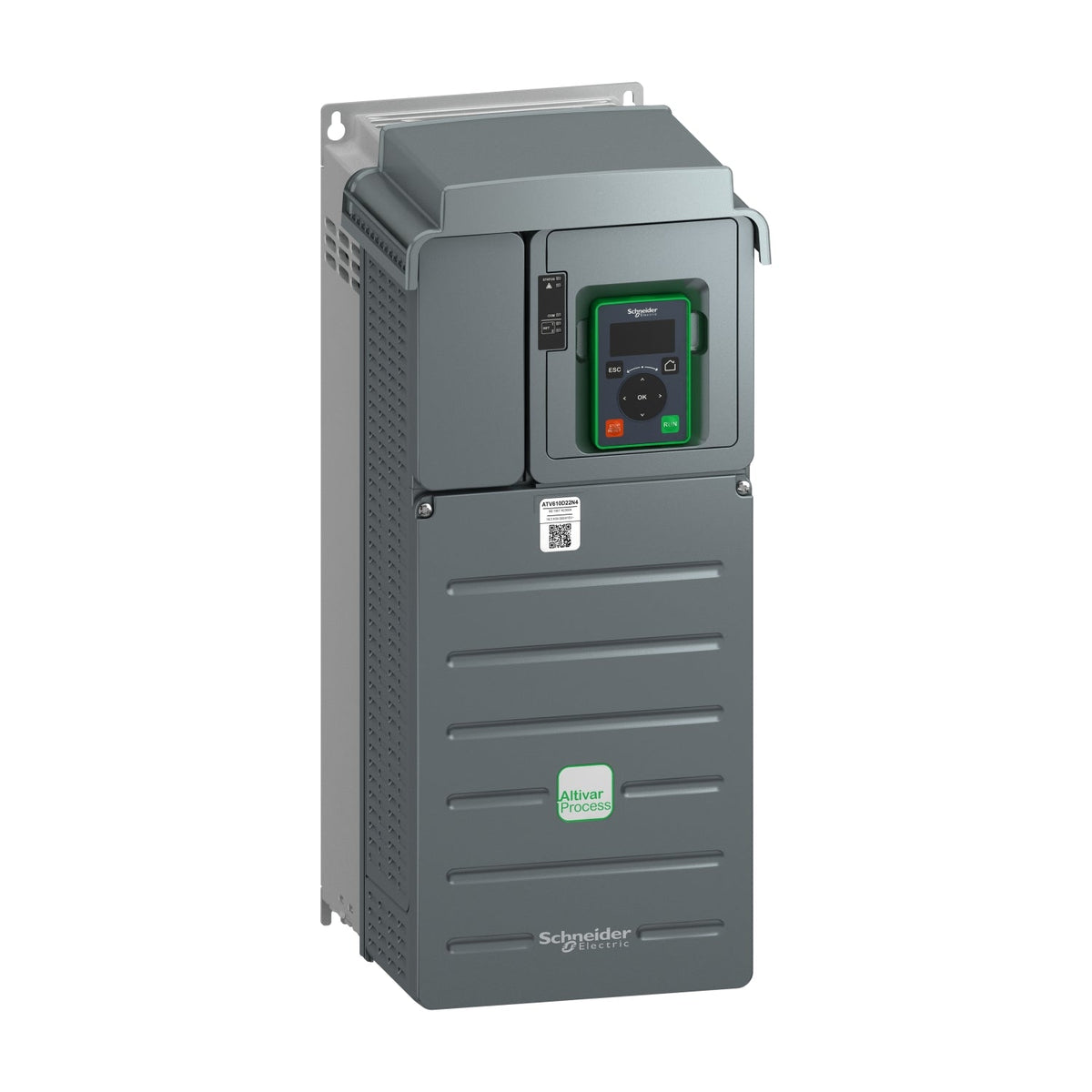

Schneider Electric ATV610D22N4 Easy Altivar 610 ATV610 22 kW 380-460 V 3-Phase IP20 Variable Frequency Drive

The Schneider Electric ATV610D22N4 is an Easy Altivar 610 variable frequency drive rated for 22 kW motor power in normal duty (18.5 kW heavy duty) on a 380-460 V three-phase supply. It delivers 46.3 A continuous output current at 4 kHz switching frequency and carries an IP20 enclosure rating. The drive controls asynchronous and synchronous motors on fans, pumps, compressors and conveyors.

Technical Specifications

Certifications & Standards

• CE
• IEC 61800-3
• IEC 61800-5-1
• IEC 60721-3

Selection Notes

Selection between normal duty and heavy duty ratings depends on load torque profile: choose the 22 kW/46.3 A normal duty rating for variable-torque loads like fans and pumps, or size to the 18.5 kW/39.2 A heavy duty rating for constant-torque loads such as compressors and conveyors that need more starting torque margin. At IP20, the drive can be panel- or wall-mounted with protection against finger contact and dust ingress, without requiring a sealed enclosure. It shares its 211 x 232 mm frame with the 18.5 kW variant, so a panel built for one accepts the other if the load is later resized. The integrated Category C3 EMC filter (IEC 61800-3) covers motor cable runs up to 50 m without an external filter.
