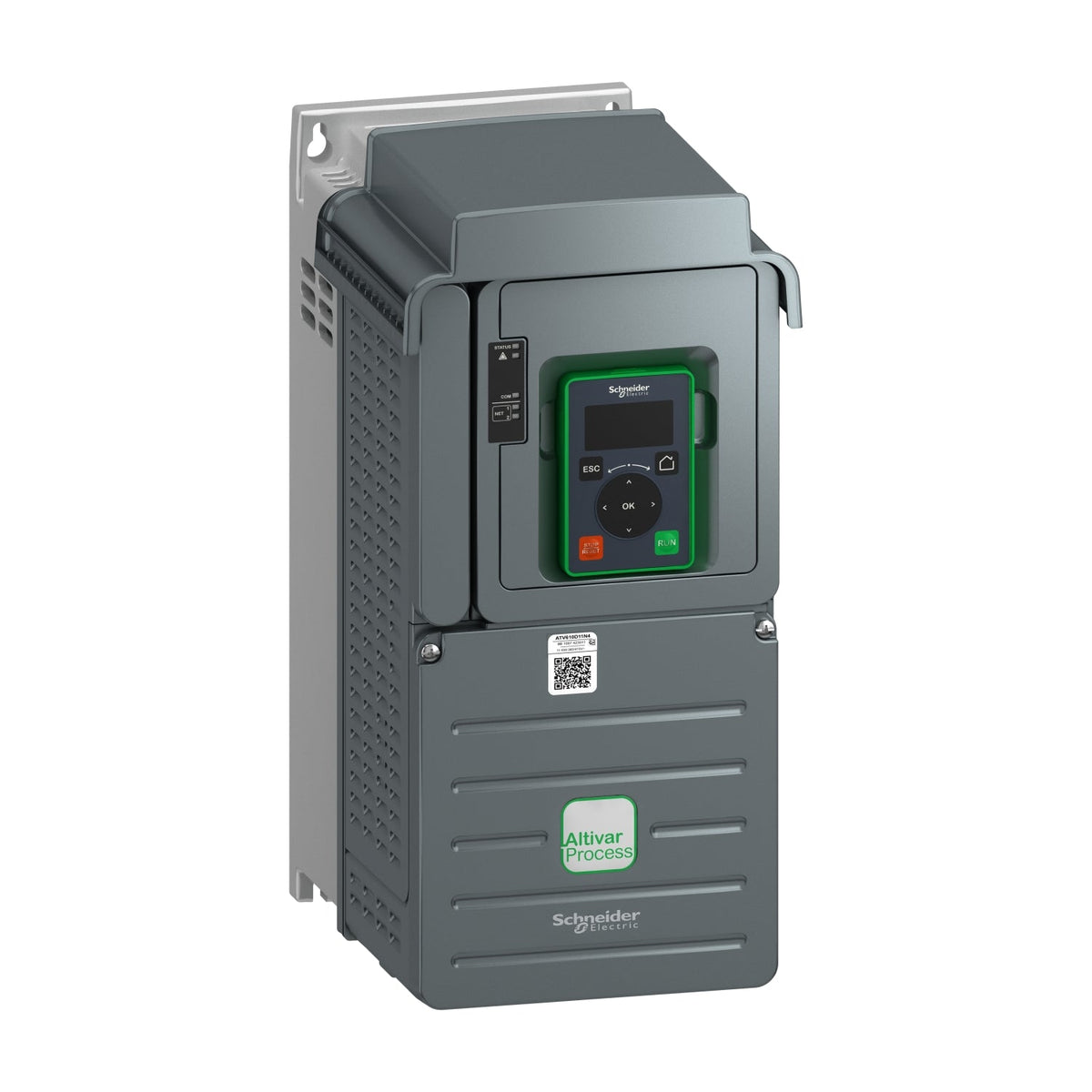

Schneider Electric ATV610D11N4 Easy Altivar 610 ATV610 11 kW 380-460 V 3-Phase IP20 Variable Frequency Drive

Schneider Electric ATV610D11N4 VFD, 11 kW normal duty motor power, 380-460V 3-phase supply, IP20, 23.5A continuous output current.

Rated current
23.5 A
Rated operational voltage
380–460 V AC
Motor power
11 kW
Poles
3P
Communication
Modbus serial (RS485, RJ45)
Description

About the ATV610

The Schneider Electric ATV610D11N4 is an Easy Altivar 610 variable frequency drive rated for 11 kW motor power in normal duty (7.5 kW heavy duty) on a 380-460 V three-phase supply. It delivers 23.5 A continuous output current at 4 kHz switching frequency and carries an IP20 enclosure rating. The drive controls asynchronous and synchronous motors on fans, pumps, compressors and conveyors.

Certifications & Standards

  • CE
  • IEC 61800-3
  • IEC 61800-5-1
  • IEC 60721-3

Selection Notes

Selection between normal duty and heavy duty ratings depends on load torque profile: choose the 11 kW/23.5 A normal duty rating for variable-torque loads like fans and pumps, or size to the 7.5 kW/16.5 A heavy duty rating for constant-torque loads such as compressors and conveyors that need more starting torque margin. At IP20, the drive can be panel- or wall-mounted with protection against finger contact and dust ingress, without requiring a sealed enclosure. It shares its 171 x 233 mm frame with the 15 kW variant, so a panel built for one accepts the other if the load is later resized. The integrated Category C3 EMC filter (IEC 61800-3) covers motor cable runs up to 50 m without an external filter.

Specification

Full specification

101 values · Last verified 30 Oct 2026

Main 27

Range of product Altivar ATV610
Product specific application Fan, pump, compressor, conveyor
Product or component type Variable speed drive
Device short name ATV610
Variant Standard version
Product destination Asynchronous motors, Synchronous motors
Mounting mode Cabinet mount
EMC filter Integrated conforming to IEC 61800-3 category C3 with 50 m
IP degree of protection IP20
Type of cooling Forced convection
Supply frequency 50...60 Hz +/-5 %
Network number of phases 3 phases
[Us] rated supply voltage 380...460 V - 15...10 %
Motor power kW 11 kW for normal duty, 7.5 kW for heavy duty
Motor power hp 15 hp for normal duty, 10 hp for heavy duty
Line current 22 A at 380 V (normal duty), 19.6 A at 460 V (normal duty), 16.4 A at 380 V (heavy duty), 14.6 A at 460 V (heavy duty)
Prospective line Isc 22 kA
Apparent power 15.6 kVA at 460 V (normal duty), 11.6 kVA at 460 V (heavy duty)
Continuous output current 23.5 A at 4 kHz for normal duty, 16.5 A at 4 kHz for heavy duty
Maximum transient current 25.9 A during 60 s (normal duty), 24.8 A during 60 s (heavy duty)
Asynchronous motor control profile Constant torque standard, Optimized torque mode, Variable torque standard
Output frequency 0.1…500 Hz
Nominal switching frequency 4 kHz
Switching frequency 2...12 kHz adjustable
number of preset speeds 16 preset speeds
Communication port protocol Modbus serial
Option card Slot A: communication card, Profibus DP V1, Slot A: digital or analog I/O extension card, Slot A: relay output card

Complementary 37

Output voltage <= power supply voltage
Motor slip compensation Automatic whatever the load, Adjustable, Not available in permanent magnet motor law, Can be suppressed
Acceleration and deceleration ramps S, U or customized, Linear adjustable separately from 0.01 to 9000 s
Braking to standstill By DC injection
Protection type Thermal protection: motor, Motor phase break: motor, Thermal protection: drive, Overheating: drive, Overcurrent between output phases and earth: drive, Overload of output voltage: drive, Short-circuit protection: drive, Motor phase break: drive, Overvoltages on the DC bus: drive, Line supply overvoltage: drive, Line supply undervoltage: drive, Line supply phase loss: drive, Overspeed: drive, Break on the control circuit: drive
Frequency resolution Display unit: 0.1 Hz, Analog input: 0.012/50 Hz
Electrical connection Control, screw terminal: 0.5...1.5 mm², Line side, screw terminal: 4...16 mm², Motor, screw terminal: 4...16 mm²
Connector type 1 RJ45 (on the remote graphic terminal) for Modbus serial
Physical interface 2-wire RS 485 for Modbus serial
Transmission frame RTU for Modbus serial
Transmission rate 4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial
Type of polarization No impedance for Modbus serial
Number of addresses 1…247 for Modbus serial
Method of access Slave
Supply External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection, Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Local signalling 2 LEDs for local diagnostic, 1 LED (yellow) for embedded communication status, 2 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage
Width 171 mm
Depth 233 mm
Net weight 7.730 kg
Analogue input number 3
Analogue input type AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits, AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits, AI2, AI3 software-configurable temperature probe or water level sensor
Discrete input number 6
Discrete input type DI1...DI6 programmable as logic input, 24 V DC (<= 30 V), impedance: 3.5 kOhm, DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
Input compatibility DI1...DI6: logic input level 1 PLC conforming to IEC 61131-2, DI5, DI6: pulse input level 1 PLC conforming to IEC 65A-68
Discrete input logic Positive logic (source): DI1...DI6 configurable logic input, 11 V (state 1), Negative logic (sink): DI1...DI6 configurable logic input, > 16 V (state 0), < 10 V (state 1), Positive logic (source): DI5, DI6 configurable pulse input, 2.5 V (state 1)
Analogue output number 2
Analogue output type Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits, Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Sampling duration 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input, 2 ms +/- 0.5 ms (DI1...DI6)configurable - discrete input, 5 ms +/- 1 ms (DI5, DI6)configurable - pulse input, 10 ms +/- 1 ms (AQ1, AQ2) - analog output
Accuracy +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input, +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
Linearity error AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input, AQ1, AQ2: +/- 0.2 % for analog output
Relay output number 3
Relay output type Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles, Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles, Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles
Refresh time Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
Minimum switching current Relay output R1, R2, R3: 5 mA at 24 V DC
Maximum switching current Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC, Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC, Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC, Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC
Isolation Between power and control terminals
Insulation resistance > 1 MOhm 500 V DC for 1 minute to earth

Environment 13

Noise level 56 dB conforming to 86/188/EEC
Power dissipation in W 310 W(forced convection) at 380 V, switching frequency 4 kHz, 54 W(natural convection) at 380 V, switching frequency 4 kHz
Operating position Vertical +/- 10 degree
Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Pollution degree 2 conforming to IEC 61800-5-1
Vibration resistance 1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn for 11 ms conforming to IEC 60068-2-27
Relative humidity 5…95 % without condensation conforming to IEC 60068-2-3
Ambient air temperature for operation -15…45 °C (without derating), 45…60 °C (with derating factor)
Operating altitude <= 1000 m without derating, 1000...4800 m with current derating 1 % per 100 m
Environmental characteristic Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3, Dust pollution resistance class 3S3 conforming to IEC 60721-3-3
Standards IEC 61800-3, Environment 2 category C3 IEC 61800-3, IEC 61800-5-1, IEC 60721-3
Marking CE
Show all 101 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number ATV610D11N4
Type designation ATV610
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 21.500 cm
Package 1 Width 34.000 cm
Package 1 Length 58.000 cm
Package 1 Weight 9.480 kg
Unit Type of Package 2 P06
Number of Units in Package 2 3
Package 2 Height 73.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 36.440 kg
Shipping weight 7.73 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
