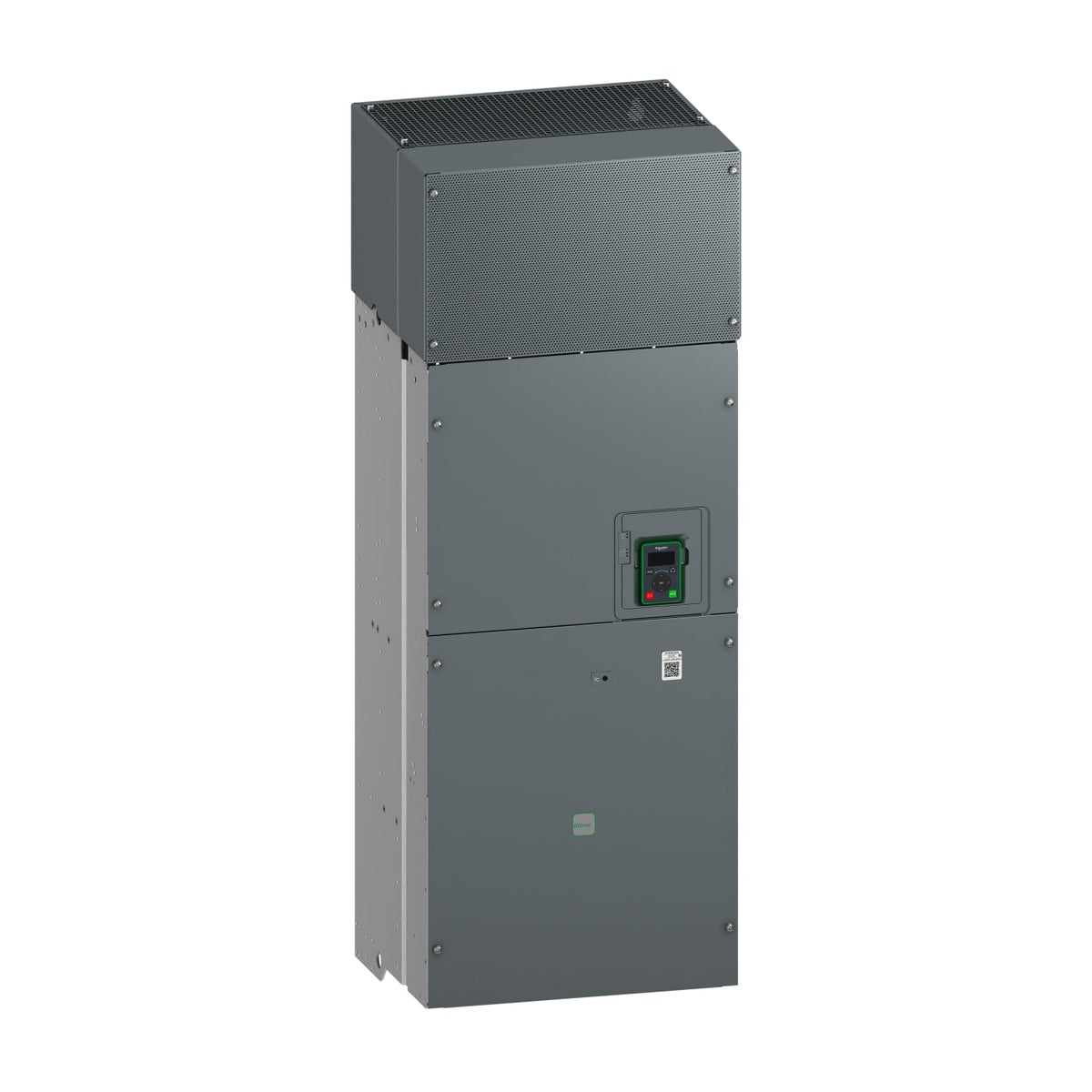

Schneider Electric ATV610C25N4 Easy Altivar 610 ATV610 250 kW 380-460 V 3-Phase IP00 Variable Frequency Drive

The Schneider Electric ATV610C25N4 is an Easy Altivar 610 variable frequency drive rated for 250 kW motor power in normal duty (200 kW heavy duty) on a 380-460 V three-phase supply. It delivers 481 A continuous output current at 2.5 kHz switching frequency and mounts in a cabinet enclosure at IP00. The drive controls asynchronous motors on fans, pumps, compressors and conveyors.

Technical Specifications

Certifications & Standards

• CE
• IEC 61800-3
• IEC 61800-5-1
• IEC 60721-3

Selection Notes

Selection between normal duty and heavy duty ratings depends on load torque profile: choose the 250 kW/481 A normal duty rating for variable-torque loads like fans and centrifugal pumps, where torque demand tapers with speed, or size to the 200 kW/370 A heavy duty rating for constant-torque loads such as compressors and conveyors that need more torque margin during acceleration. At IP00, the drive is built for mounting inside a ventilated cabinet rather than as a stand-alone enclosure, so plan for panel-level ingress protection and forced-air cooling in the panel design. The integrated Category C3 EMC filter (IEC 61800-3) covers motor cable runs up to 50 m without an external filter, and the 50 kA prospective line short-circuit rating sets the minimum upstream protection needed ahead of the drive.
