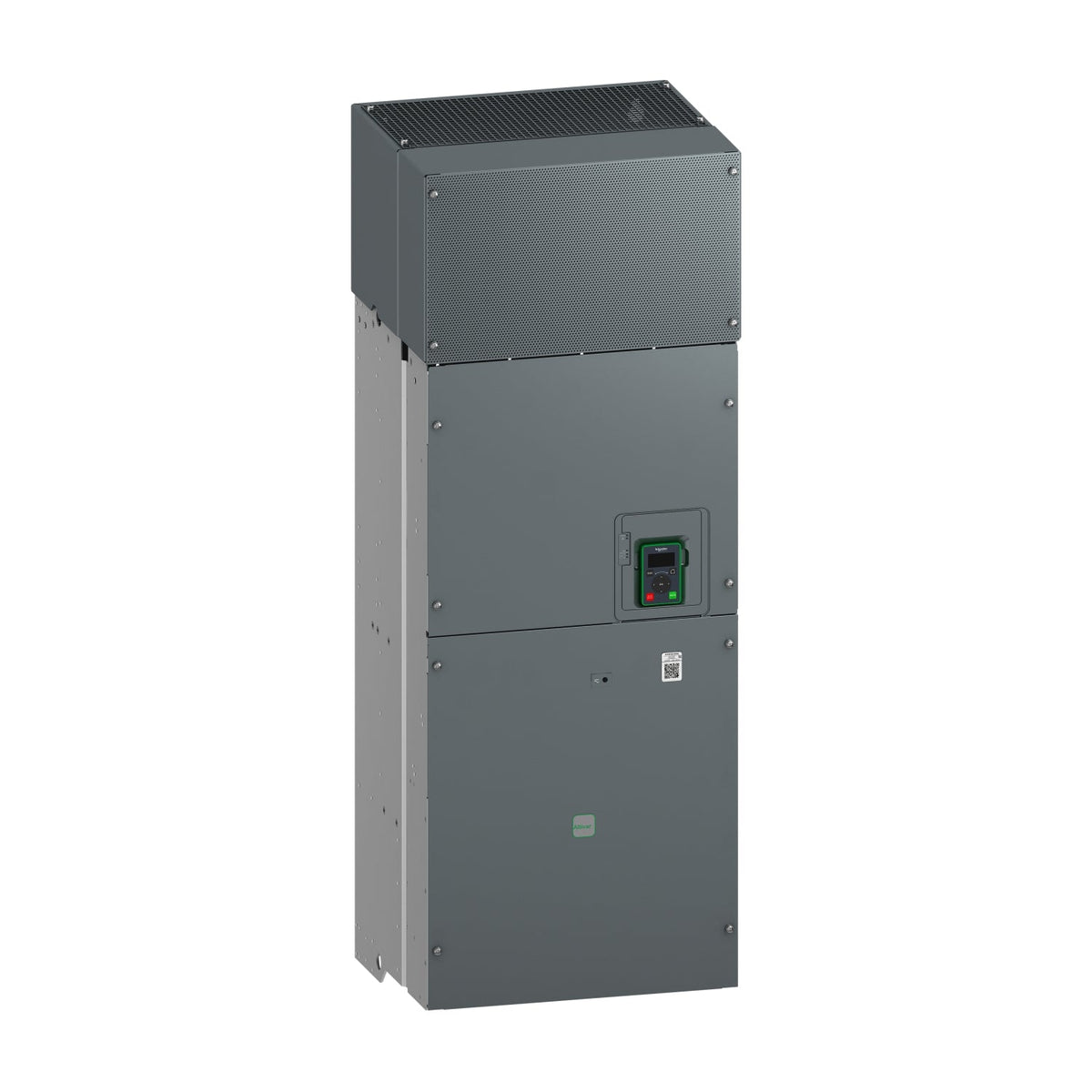

Schneider Electric ATV610C22N4 Easy Altivar 610 ATV610 220 kW 380-460V 3-Phase IP00 Variable Frequency Drive

The Schneider Electric ATV610C22N4 is an Altivar ATV610 variable speed drive for fan, pump, compressor and conveyor applications, rated 220 kW normal duty and 160 kW heavy duty. It runs from a 380-460 V three-phase supply, delivers 427 A continuous output current in normal duty, and mounts in a cabinet as an IP00 chassis weighing 173 kg. An integrated EMC filter meets IEC 61800-3 category C3.

Technical Specifications

Certifications & Standards

• CE
• IEC 61800-3
• IEC 61800-5-1
• IEC 60721-3

Selection Notes

The ATV610C22N4's normal-duty rating (220 kW, 427 A continuous) is the drive's marketed size on this larger 440 x 397.4 mm, 173 kg chassis, roughly double the weight of the ATV610 power steps below it, to carry the 397 A line current at 380 V. Switch to heavy duty (160 kW, 302 A continuous, 453 A/60 s transient) for constant-torque conveyor or hoisting duty that needs deeper start-up overload margin instead of the higher continuous current. The narrower -10...40 degC unrestricted ambient range (versus -15...45 degC on the smaller frames) should be checked against the panel's expected cabinet temperature.
