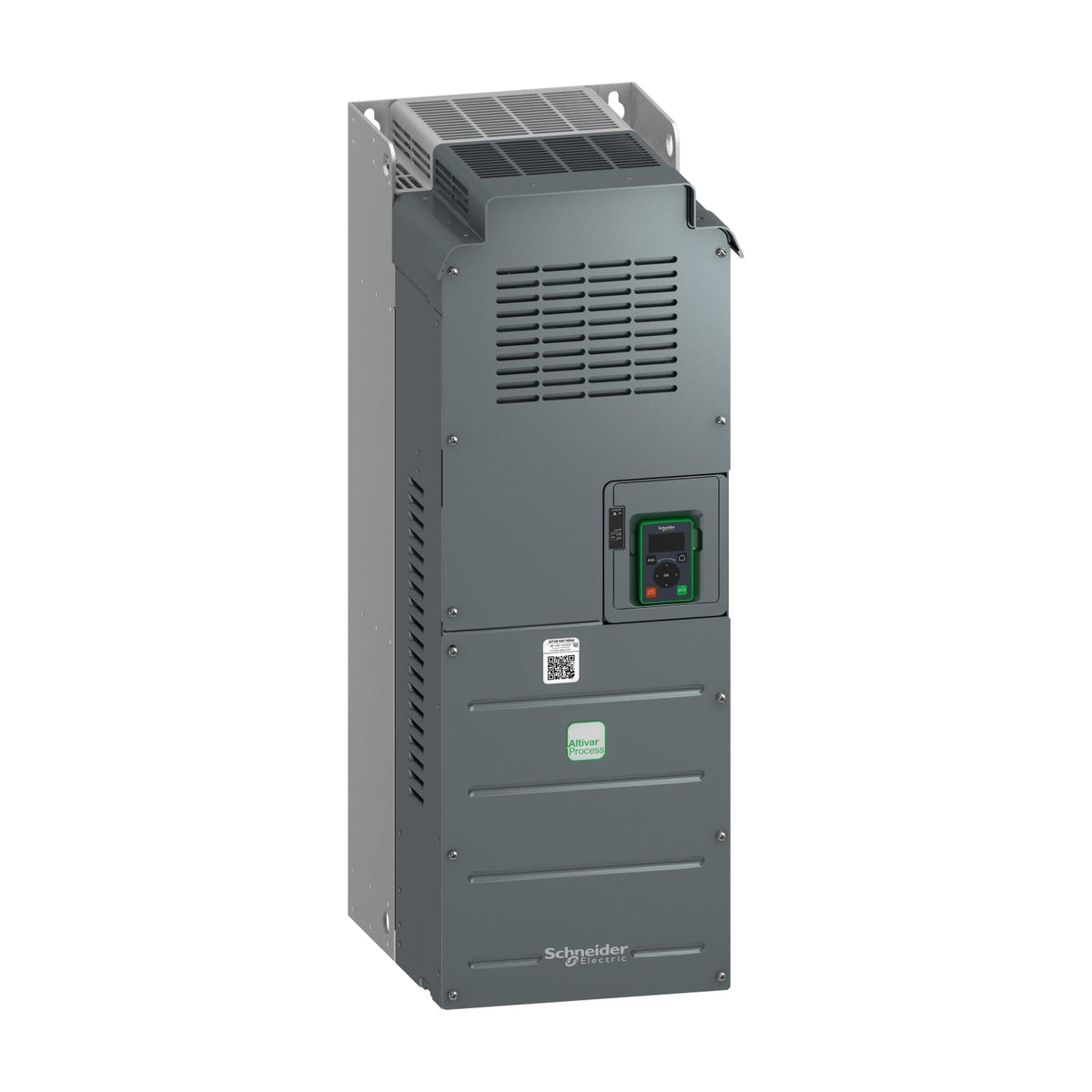

Schneider Electric ATV610C16N4 Easy Altivar 610 ATV610 160 kW 380-460V 3-Phase IP00 Variable Frequency Drive

The Schneider Electric ATV610C16N4 is an Altivar ATV610 variable speed drive for fan, pump, compressor and conveyor applications, rated 160 kW normal duty and 132 kW heavy duty. It runs from a 380-460 V three-phase supply, delivers 302 A continuous output current in normal duty, and mounts in a cabinet as an IP00 chassis. An integrated EMC filter meets IEC 61800-3 category C3.

Technical Specifications

Certifications & Standards

• CE
• IEC 61800-3
• IEC 61800-5-1
• IEC 60721-3

Selection Notes

The ATV610C16N4's normal-duty rating (160 kW, 302 A continuous) is the drive's marketed size, sharing the 300 x 375 mm footprint and 85.5 kg weight with the two power steps below it. Switch to heavy duty (132 kW, 250 A continuous, 375 A/60 s transient) for constant-torque conveyor or hoist loads that need deeper start-up overload margin rather than the higher continuous current. Line-side conductors up to 2 x 95...3 x 120 mm2 handle the 284 A line current at 380 V in normal duty.
