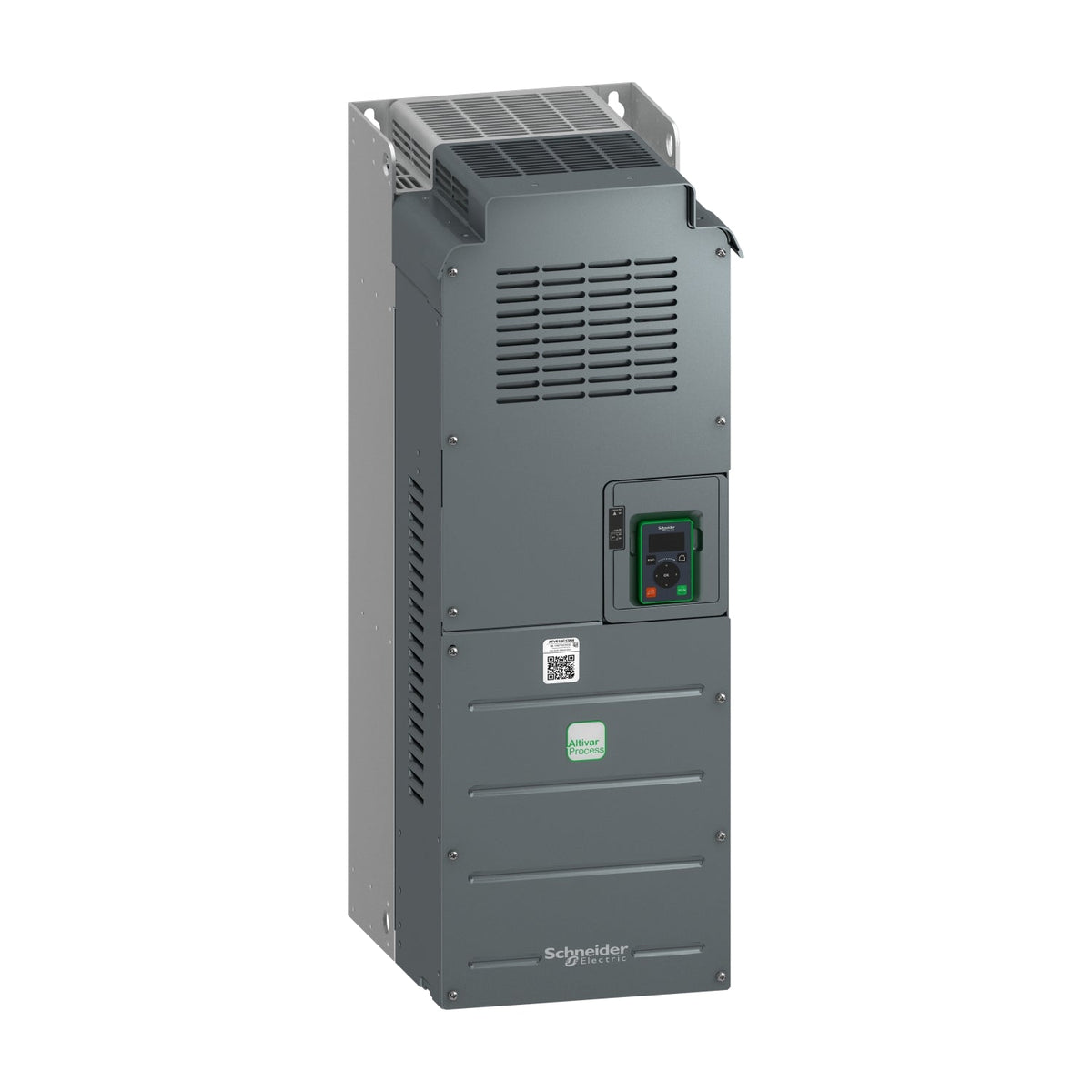

Schneider Electric ATV610C13N4 Easy Altivar 610 ATV610 132 kW 380-460V 3-Phase IP00 Variable Frequency Drive

The Schneider Electric ATV610C13N4 is an Altivar ATV610 variable speed drive for fan, pump, compressor and conveyor applications, rated 132 kW normal duty and 110 kW heavy duty. It runs from a 380-460 V three-phase supply, delivers 250 A continuous output current in normal duty, and mounts in a cabinet as an IP00 chassis. An integrated EMC filter meets IEC 61800-3 category C3.

Technical Specifications

Certifications & Standards

• CE
• IEC 61800-3
• IEC 61800-5-1
• IEC 60721-3

Selection Notes

The ATV610C13N4's normal-duty rating (132 kW, 250 A continuous) is the drive's marketed size and suits variable-torque fans, pumps and compressors on this 300 x 375 mm chassis. Switch to heavy duty (110 kW, 211 A continuous, 317 A/60 s transient) when the load is constant-torque, such as a conveyor or hoist, and needs the deeper start-up overload margin instead of the higher continuous current. Line-side and motor-side screw terminals accept up to 3 x 120 mm2 conductors to carry the 237 A line current at 380 V in normal duty.
