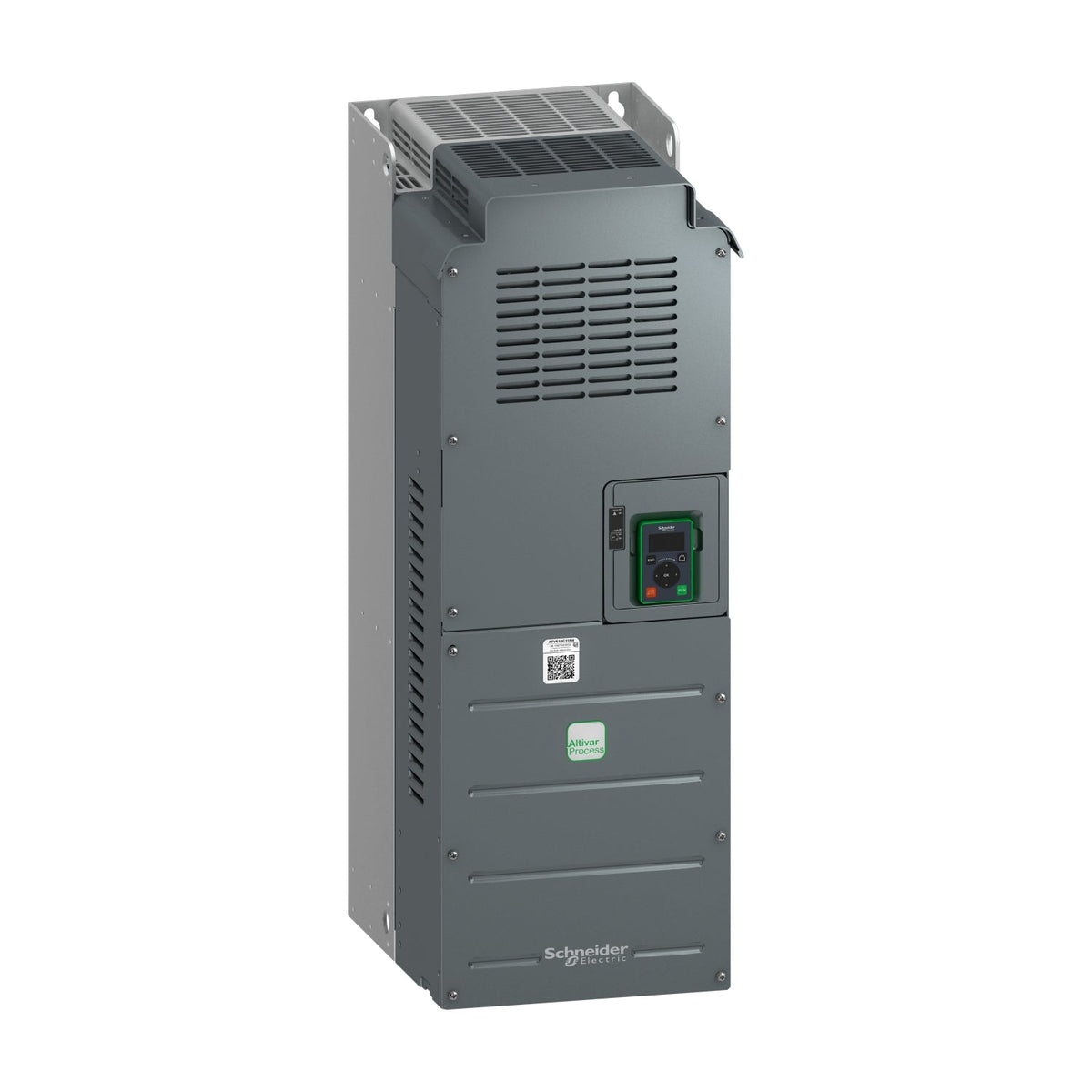

Schneider Electric ATV610C11N4 Easy Altivar 610 ATV610 110 kW 380-460V 3-Phase IP00 Variable Frequency Drive

The Schneider Electric ATV610C11N4 is an Altivar ATV610 variable speed drive for fan, pump, compressor and conveyor applications, rated 110 kW normal duty and 90 kW heavy duty. It runs from a 380-460 V three-phase supply, delivers 211 A continuous output current in normal duty, and mounts in a cabinet as an IP00 chassis. An integrated EMC filter meets IEC 61800-3 category C3.

Technical Specifications

Certifications & Standards

• CE
• IEC 61800-3
• IEC 61800-5-1
• IEC 60721-3

Selection Notes

The ATV610C11N4's normal-duty rating (110 kW, 211 A continuous) is the drive's marketed size and fits variable-torque loads such as fans, pumps and compressors that need less overload margin. Switch to the heavy-duty setting (90 kW, 173 A continuous, 260 A/60 s transient) on the same chassis when the application is constant-torque, such as a conveyor or hoist, and needs the deeper overload headroom instead of the higher continuous current. Forced-convection cooling and the IP00 chassis assume cabinet mounting with the enclosure providing the ingress protection, so panel airflow design matters more here than on a self-contained IP20 unit.
