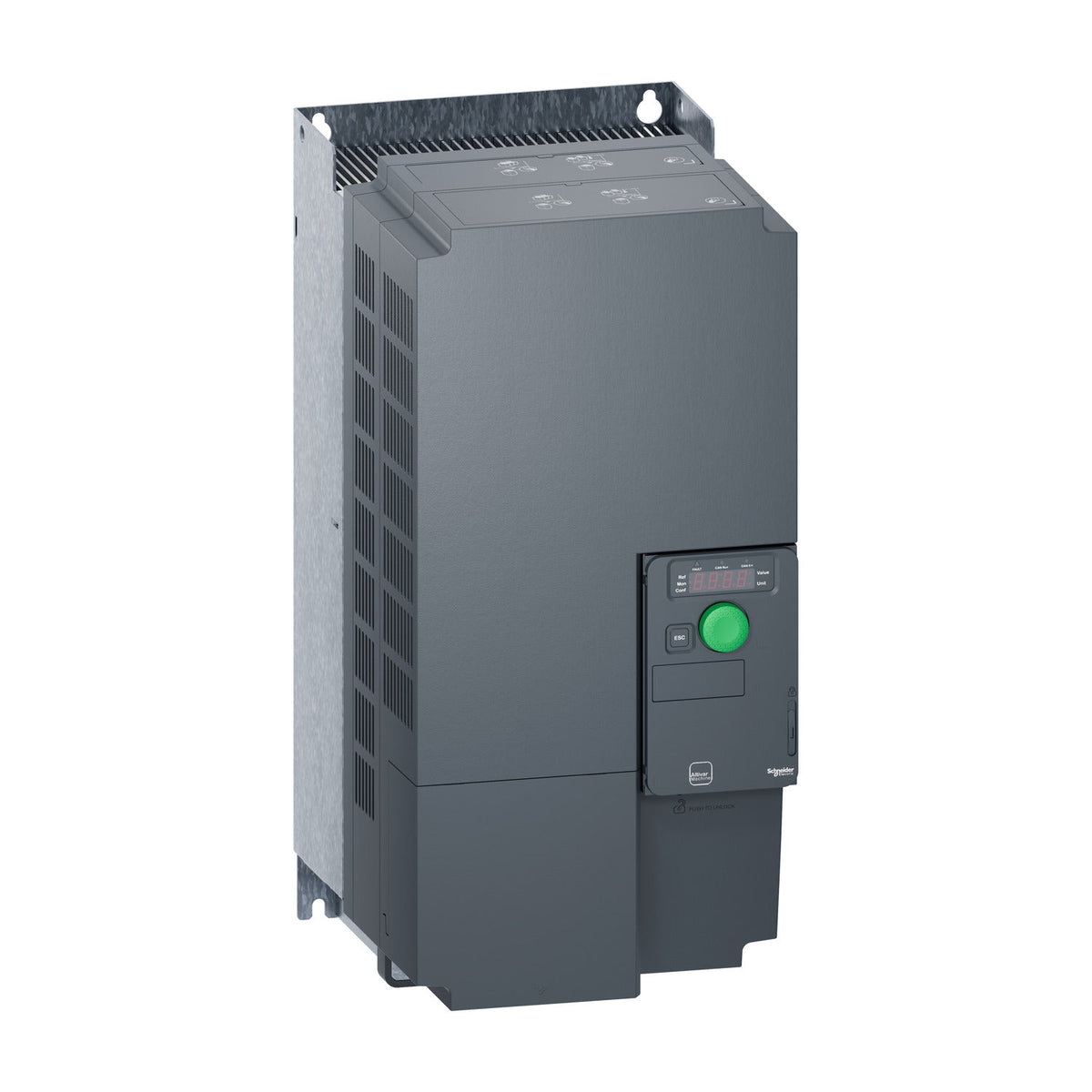

Schneider Electric ATV320D18N4C Altivar Machine ATV320 Compact 18.5 kW 380-500V IP20 Variable Frequency Drive

Schneider Electric ATV320D18N4C Altivar Machine ATV320 compact VFD, 18.5 kW heavy duty, 380-500V 3-phase, IP20.

Rated current
55.3 A
Rated operational voltage
380–500 V AC
Motor power
18.5 kW
Poles
3P
Communication
Modbus serial (option: CANopen, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, DeviceNet)
EAN
3606486358061
Description

About the ATV320D18N4C

The Schneider Electric ATV320D18N4C is an Altivar Machine ATV320 variable speed drive in compact format, rated 18.5 kW heavy duty for OEM machine panels. It runs from a 380-500 V three-phase supply, draws 55.3 A line current at 380 V, and carries an IP20 enclosure with a 22 kA prospective line Isc rating. Safe Torque Off (STO) and Safe Stop 1 (SS1) are built in.

Selection Notes

The ATV320D18N4C's compact wall-mount format and 3C3-coated boards (IEC 60721-3-3) let it run at up to 60 degC ambient without extra panel cooling, which is the deciding factor for tight OEM enclosures. Built-in STO and SS1 remove the need for an external safety relay on machines that only require torque-off on demand; if Safe Speed Monitor or Safe Direction is needed, a different safety function set applies. Confirm the 22 kA prospective Isc rating against the panel's available fault current before selecting this frame over a lower-Isc drive in the same range.

Specification

Full specification

87 values · Last verified 30 Oct 2026

Main 11

Range of Product Altivar Machine ATV320
Product or Component Type Variable speed drive
Product Specific Application Complex machines
Variant Standard version
Format of the drive Compact
Mounting Mode Wall mount
Communication Port Protocol Modbus serial
Option card communication module, CANopen, communication module, Profibus DP V1, communication module, PROFINET, communication module, Ethernet Powerlink, communication module, EtherNet/IP, communication module, DeviceNet
[Us] rated supply voltage 380...500 V - 15...10 %
Motor power kW 18.5 kW heavy duty
IP degree of protection IP20

Complementary 48

Discrete input number 7
Discrete input type STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0…30 kHz, 24 V DC 30 V)
Discrete input logic Positive logic (source), Negative logic (sink)
Discrete output number 3
Discrete output type Open collector DQ+ 0…1 kHz 30 V DC 100 mA, Open collector DQ- 0…1 kHz 30 V DC 100 mA
Analogue input number 3
Analogue input type AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits, AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
Analogue output number 1
Analogue output type Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits, Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Relay output type Configurable relay logic R1A 1 NO 100000 cycles, Configurable relay logic R1B 1 NC 100000 cycles, Configurable relay logic R1C, Configurable relay logic R2A 1 NO 100000 cycles, Configurable relay logic R2C
Maximum switching current Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC, Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC, Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC, Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC, Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
Minimum switching current Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Method of access Slave CANopen
4 quadrant operation possible True
Asynchronous motor control profile Voltage/frequency ratio, 5 points, Flux vector control without sensor, standard, Voltage/frequency ratio - Energy Saving, quadratic U/f, Flux vector control without sensor - Energy Saving, Voltage/frequency ratio, 2 points
Synchronous motor control profile Vector control without sensor
Maximum output frequency 0.599 kHz
Acceleration and deceleration ramps Linear, U, S, CUS, Ramp switching, Acceleration/deceleration ramp adaptation, Acceleration/deceleration automatic stop with DC injection
Motor slip compensation Automatic whatever the load, Adjustable 0...300 %, Not available in voltage/frequency ratio (2 or 5 points)
Switching frequency 2...16 kHz adjustable, 4...16 kHz with derating factor
Nominal switching frequency 4 kHz
Braking to standstill By DC injection
Brake chopper integrated True
Line current 55.3 A 380 V heavy duty), 42.4 A 500 V heavy duty)
Maximum Input Current per Phase 55.3 A
Maximum output voltage 500 V
Apparent power 36.7 kVA 500 V heavy duty)
Network Frequency 50-60 Hz
Relative symmetric network frequency tolerance 5 %
Prospective line Isc 22 kA
Base load current at high overload 40.0 A
With safety function Safely Limited Speed (SLS) True
With safety function Safe brake management (SBC/SBT) False
With safety function Safe Operating Stop (SOS) False
With safety function Safe Position (SP) False
With safety function Safe programmable logic False
With safety function Safe Speed Monitor (SSM) False
With safety function Safe Stop 1 (SS1) True
With sft fct Safe Stop 2 (SS2) False
With safety function Safe torque off (STO) True
With safety function Safely Limited Position (SLP) False
With safety function Safe Direction (SDI) False
Protection type Input phase breaks drive, Overcurrent between output phases and earth drive, Overheating protection drive, Short-circuit between motor phases drive, Thermal protection drive
Width 7.09 in (180 mm)
Height 15.4 in (390 mm)
Depth 9.02 in (229 mm)
Net Weight 20.9 lb(US) (9.5 kg)
Transient overtorque 170…200 % of nominal motor torque

Environment 15

Operating position Vertical +/- 10 degree
Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Environmental class (during operation) Class 3C3 according to IEC 60721-3-3, Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation) 150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation) 10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during operation) 1.5 mm at 2...13 Hz
Permitted relative humidity (during operation) Class 3K5 according to EN 60721-3
Volume of cooling air 41211.6 Gal/hr(US) (156.0 m3/h)
Overvoltage category III
Regulation loop Adjustable PID regulator
Speed accuracy +/- 10 % of nominal slip 0.2 Tn to Tn
Pollution degree 2
Ambient air transport temperature -13…158 °F (-25…70 °C)
Ambient air temperature for operation 14…122 °F (-10…50 °C) without derating, 122…140 °F (50…60 °C) with derating factor
Ambient Air Temperature for Storage -13…158 °F (-25…70 °C)
Show all 87 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number ATV320D18N4C
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606486358061

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 9.5 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for ATV320D18N4C

No documents are on file for this part yet.

Ask us for the datasheet
Quick answers

Questions about the ATV320D18N4C

What is the rated current of ATV320D18N4C?

The rated current of ATV320D18N4C is 55.3 A.

Which supply voltage is ATV320D18N4C rated for?

The rated operational voltage of ATV320D18N4C is 380–500 V AC.

What motor power is ATV320D18N4C rated for?

The rated motor power of ATV320D18N4C is 18.5 kW.

What is the HS code of ATV320D18N4C for customs?

The tariff (HS) code on file for ATV320D18N4C is 850440.

What is the EAN of ATV320D18N4C?

The EAN (GTIN) of ATV320D18N4C is 3606486358061.

Where does ATV320D18N4C ship from, and how fast?

ATV320D18N4C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
