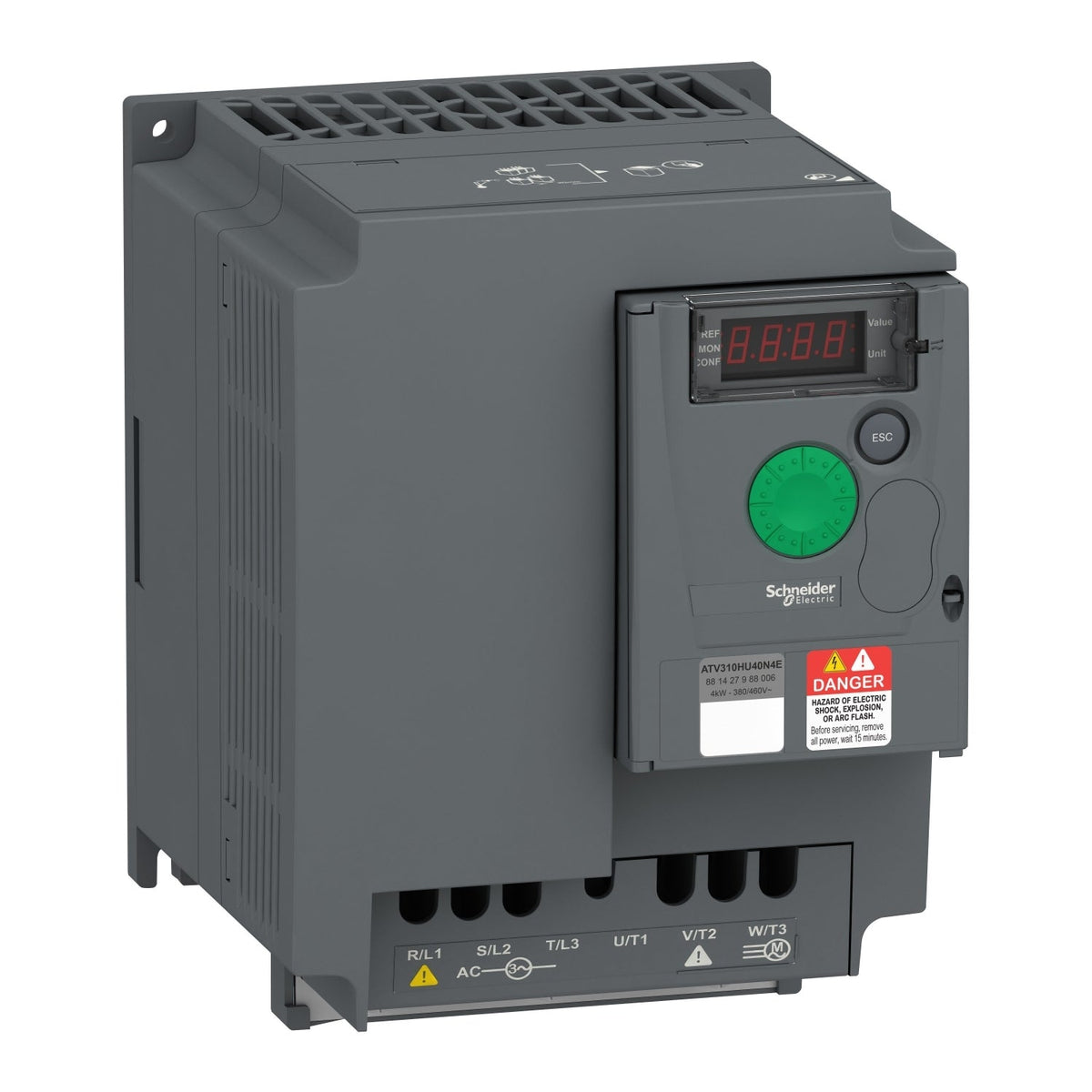

Schneider Electric ATV310HU40N4E Easy Altivar 310 ATV310 4 kW 380-460V 3-Phase IP20 Variable Frequency Drive

% $-435.83
Schneider Electric ATV310HU40N4E Easy Altivar 310 VFD - 4 kW 380-460V
Schneider Electric ATV310HU40N4E Easy Altivar 310 VFD - 4 kW 380-460V

Schneider Electric ATV310HU40N4E Easy Altivar 310 ATV310 4 kW 380-460V 3-Phase IP20 Variable Frequency Drive

Brand: Schneider Electric
Reference No: ATV310HU40N4E
Catalog No: ATV310HU40N4E
Series: Easy Altivar 310
Tariff Code (HS): 850440
Rated Current: 9.5 A
Power: 4 kW
Rated Voltage: 380-460 V
Poles: 3P
Communication: Modbus RTU (RS485, RJ45)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$435.83

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric ATV310HU40N4E is an Easy Altivar 310 variable speed drive rated 4 kW (5 hp) heavy duty and 5.5 kW (7.5 hp) normal duty for simple asynchronous-motor machines. It runs from a 380-460 V three-phase supply, delivers 9.5 A continuous output current in heavy duty, and carries an IP20 enclosure with built-in Modbus RTU communication over RJ45.

Technical Specifications

SKU ATV310HU40N4E
Brand Schneider Electric
Range Easy Altivar 310
Device Short Name ATV310
Product Type Variable speed drive
Rated Supply Voltage 380-460 V (-15/+10%)
Network Phases Three phase
Motor Power (heavy duty) 4 kW / 5 hp
Motor Power (normal duty) 5.5 kW / 7.5 hp
Continuous Output Current (heavy duty) 9.5 A
Continuous Output Current (normal duty) 12.1 A
Line Current (heavy duty) 13.7 A at 380 V / 11.4 A at 460 V
Maximum Transient Current 14.3 A for 60 s (heavy duty)
Apparent Power 9.1 kVA at 460 V (heavy duty)
Prospective Line Isc 5 kA
Output Frequency Range 0.5-400 Hz
Switching Frequency 4 kHz nominal, 2-12 kHz adjustable
Motor Control Profile V/f, V/f Energy Saving, Sensorless vector control (SVC)
Communication Modbus RTU, RS485 2-wire, RJ45
Discrete I/O 4 inputs / 2 outputs
IP Degree of Protection IP20 (IP4X top)
Dimensions (H x W x D) 184 x 140 x 151 mm
Net Weight 1.8 kg
Ambient Operating Temperature -10...55 °C (derated to 60 °C)
Pollution Degree 2 (IEC 61800-5-1)

Certifications & Standards

  • CE
  • EAC
  • KC
  • IEC 61800-5-1
  • IEC 61800-3

Selection Notes

At 9.5 A continuous heavy duty and 12.1 A normal duty, the ATV310HU40N4E shares its 184 x 140 x 151 mm body and terminal block with the HU30 power step but pulls more line current (13.7 A at 380 V), so panel wiring and upstream breaker sizing should follow this SKU's own line-current row, not a lower frame's. Use the normal-duty setting for fan and pump loads to draw on the 12.1 A continuous rating; use heavy duty for constant-torque conveyors and mixers.

Technical Details

Short Description
Schneider Electric ATV310HU40N4E Easy Altivar 310 VFD, 4 kW heavy duty, 380-460V 3-phase, IP20, integrated Modbus RTU.
Rated Current (Ampere)
9.5 A
Rated Voltage (VAC)
380-460 V
Protection Type
IP20
Catalog No
ATV310HU40N4E
Number of Poles
3P
Power (kW)
4 kW
Delivery Date (Days)
30 days
Model Number
ATV310
Tariff Code
850440
