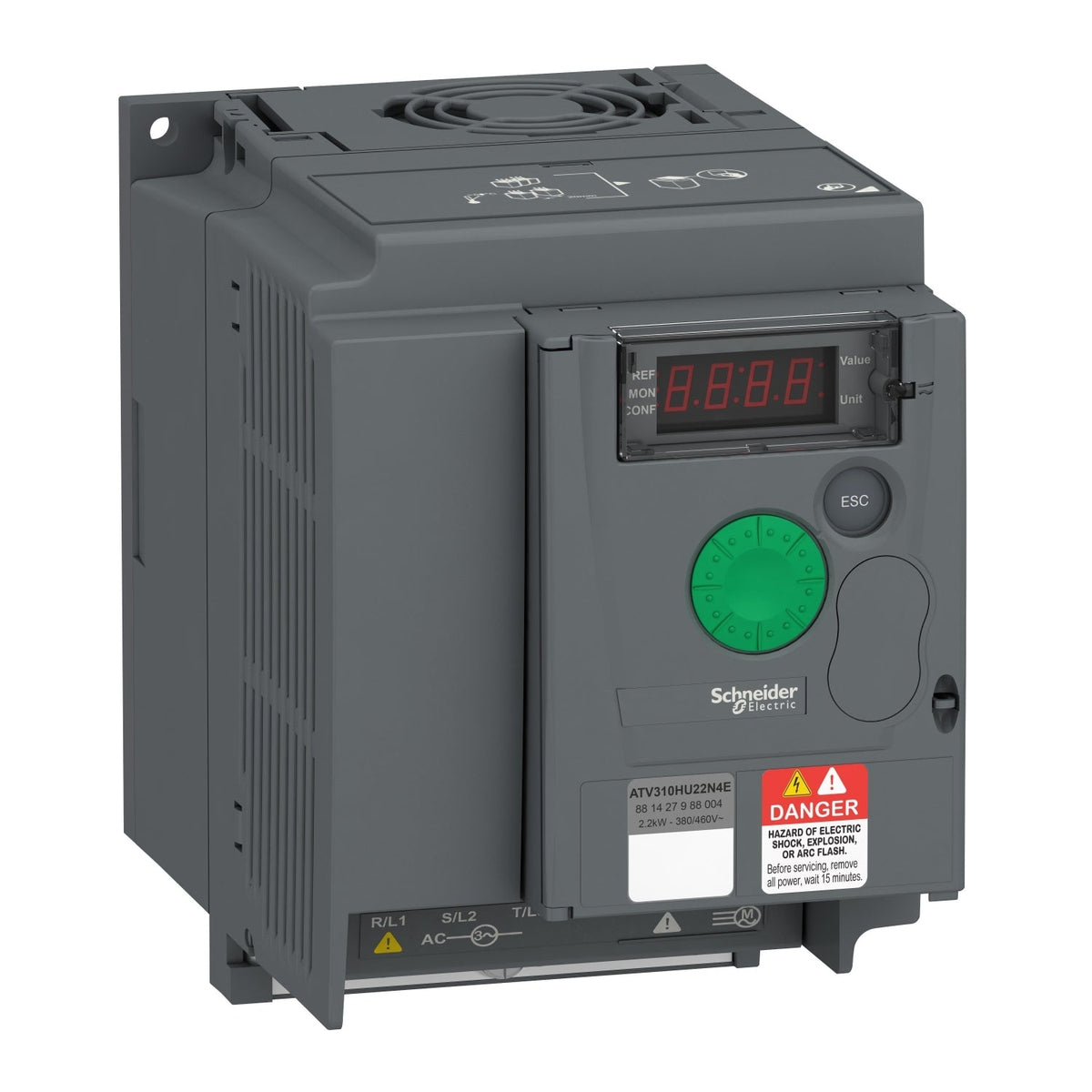

Schneider Electric ATV310HU22N4E Easy Altivar 310 ATV310 2.2 kW 380-460V 3-Phase IP20 Variable Frequency Drive

The Schneider Electric ATV310HU22N4E is an Easy Altivar 310 variable speed drive rated 2.2 kW (3 hp) heavy duty for simple asynchronous-motor machines. It runs from a 380-460 V three-phase supply, delivers 5.5 A continuous output current, and carries an IP20 enclosure with an integrated fan. Communication is built in over Modbus RTU via a front-face RJ45 port.

Technical Specifications

Certifications & Standards

• CE
• EAC
• KC
• IEC 61800-3

Selection Notes

The ATV310HU22N4E's 2.2 kW heavy-duty rating and 5.5 A continuous output current suit constant-torque loads such as conveyors and mixers, where the 8.3 A transient rating covers a 60 s start-up overload. Its integrated Modbus RTU port over RJ45 lets it join a multi-drive network without an add-on communication card. Pick this frame only when the driven motor's full-load current is at or below 5.5 A continuous; a higher-power frame in the same range is needed above that.
