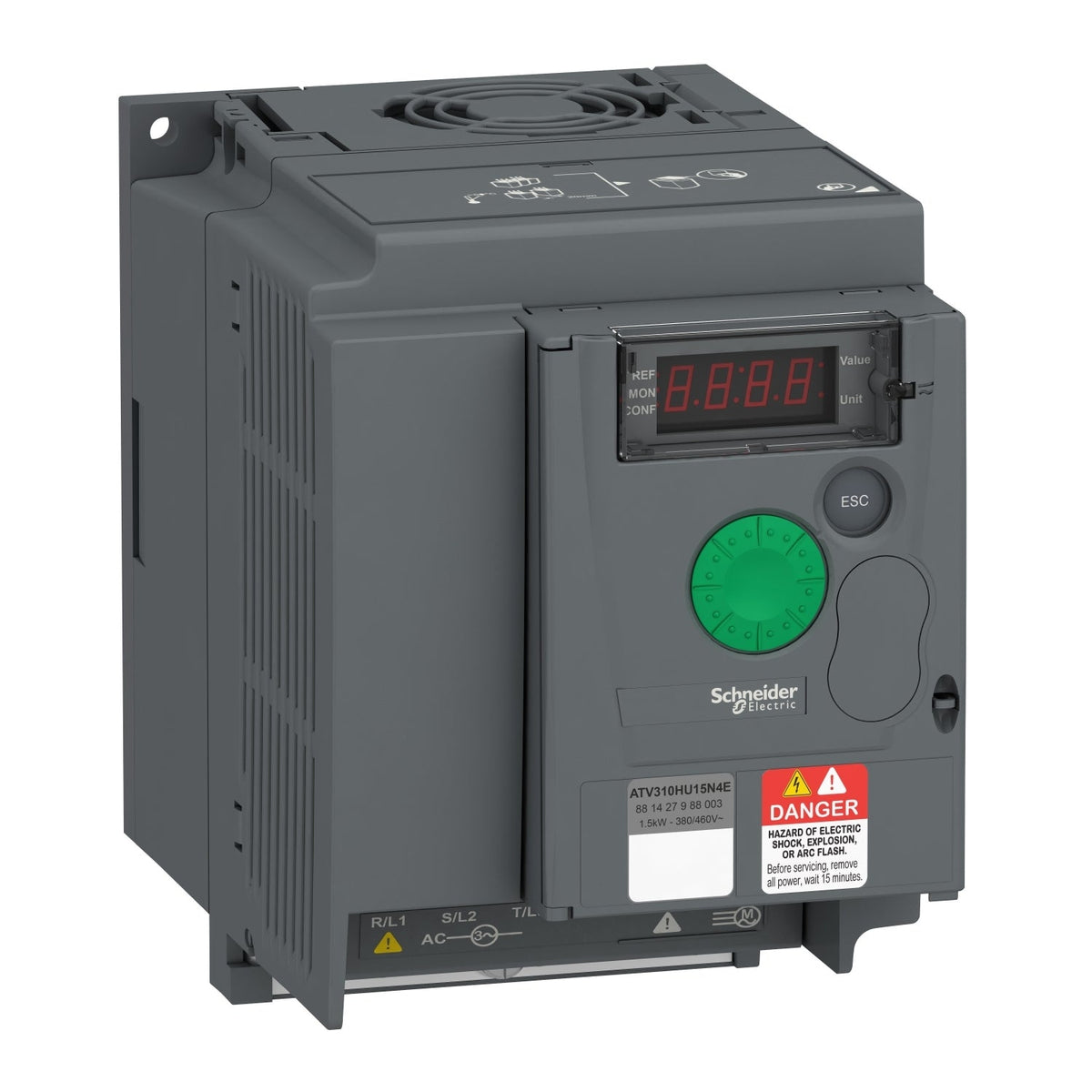

Schneider Electric ATV310HU15N4E Easy Altivar 310 VFD, 1.5 kW, 380-460 V 3-phase, IP20, Modbus RTU.
The Schneider Electric ATV310HU15N4E is a three-phase variable speed drive from the Easy Altivar 310 range, rated 1.5 kW for simple-machine applications at a 380-460 V supply. It delivers a continuous output current of 4.1 A to asynchronous motors, communicates over Modbus RTU through a front-panel RJ45 port, and ships without an integrated EMC filter.
The ATV310HU15N4E is the smallest frame in this Easy Altivar 310 selection, sized for a 1.5 kW asynchronous motor with a single heavy duty rating rather than a dual heavy/normal duty split. Its 4.1 A continuous output current and 6.2 A 60 s transient rating leave headroom for the 170-200% transient overtorque a simple machine start can demand, and the 1.5-2.5 mm2 terminal clamping keeps wiring compact in small panels. Choose a variant with an integrated EMC filter instead when the installation needs Class C3 conducted-emission compliance without adding an external filter.
| Range of product | Altivar 310 |
|---|---|
| Product or component type | Variable speed drive |
| Product specific application | Simple machine |
| Assembly style | With heat sink |
| Device short name | ATV310 |
| Network number of phases | Three phase |
| [Us] rated supply voltage | 380...460 V - 15...10 % |
| Motor power kW | 1.5 kW for heavy duty |
| Motor power hp | 2 hp for heavy duty |
| Noise level | 50 dB |
| Quantity per set | Set of 1 |
|---|---|
| EMC filter | Without EMC filter |
| Type of cooling | Integrated fan |
| Communication port protocol | Modbus |
| Connector type | RJ45 (on front face) for Modbus |
| Physical interface | 2-wire RS 485 for Modbus |
| Transmission frame | RTU for Modbus |
| Transmission rate | 4800 bit/s, 9600 bit/s, 19200 bit/s, 38400 bit/s |
| Number of addresses | 1…247 for Modbus |
| Communication service | Read holding registers (03) 29 words, Write single register (06) 29 words, Write multiple registers (16) 27 words, Read/write multiple registers (23) 4/4 words, Read device identification (43) |
| Line current | 6.5 A at 380 V (heavy duty), 5.4 A at 460 V (heavy duty) |
| Apparent power | 4.3 kVA at 460 V (heavy duty) |
| Prospective line Isc | 5 kA ( heavy duty ) |
| Continuous output current | 4.1 A heavy duty |
| Maximum transient current | 6.2 A during 60 s (heavy duty) |
| Power dissipation in W | 60.4 W, at In (heavy duty) |
| Speed drive output frequency | 0.5…400 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2...12 kHz adjustable |
| Speed range | 1…20 for asynchronous motor |
| Transient overtorque | 170…200 % of nominal motor torque depending on drive rating and type of motor |
| Braking torque | Up to 150 % of nominal motor torque with braking resistor, Up to 70 % of nominal motor torque without braking resistor |
| Asynchronous motor control profile | Voltage/frequency ratio (V/f), Voltage/frequency ratio - Energy Saving, quadratic U/f, Sensorless vector control (SVC) |
| Motor slip compensation | Adjustable |
| Output voltage | 380...460 V three phase |
| Electrical connection | Terminal, clamping capacity: 1.5...2.5 mm², 16 AWG...14 AWG (L1, L2, L3, PA/+, PB, U, V, W) |
| Tightening torque | 0.8…1 N.m |
| Insulation | Electrical between power and control |
| Supply | Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and short-circuit protection, Internal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection |
| Analogue input number | 1 |
| Analogue input type | Configurable current AI1 0...20 mA 250 Ohm, Configurable voltage AI1 0...10 V 30 kOhm, Configurable voltage AI1 0...5 V 30 kOhm |
| Discrete input number | 4 |
| Discrete input type | Programmable LI1...LI4 24 V 18...30 V |
| Discrete input logic | Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm, Positive logic (source), 0... 11 V (state 1) |
| Sampling duration | 10 ms for analogue input, 20 ms, tolerance +/- 1 ms for logic input |
| Linearity error | +/- 0.3 % of maximum value for analogue input |
| Analogue output number | 1 |
| Analogue output type | AO1 software-configurable voltage: 0...10 V AC 0...10 V 0…0.02 A, impedance: 470 Ohm, resolution 8 bits, AO1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 8 bits |
| Discrete output number | 2 |
| Discrete output type | Logic output LO+, LO-, Protected relay output R1A, R1B, R1C 1 C/O |
| Minimum switching current | 5 mA at 24 V DC for logic relay |
| Maximum switching current | 2 A at 250 V AC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay, 2 A at 30 V DC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay, 3 A at 250 V AC on resistive load cos phi = 1 L/R = 0 ms for logic relay, 4 A at 30 V DC on resistive load cos phi = 1 L/R = 0 ms for logic relay |
| Acceleration and deceleration ramps | Linear from 0...999.9 s, S, U |
| Braking to standstill | By DC injection, <30 s |
| Protection type | Line supply overvoltage, Line supply undervoltage, Overcurrent between output phases and earth, Overheating protection, Short-circuit between motor phases, Against input phase loss in three-phase, Thermal motor protection via the drive by continuous calculation of I²t |
| Frequency resolution | Analog input: converter A/D, 10 bits, Display unit: 0.1 Hz |
| Time constant | 20 ms +/- 1 ms for reference change |
| Operating position | Vertical +/- 10 degree |
| Height | 143 mm |
| Width | 105 mm |
| Depth | 151 mm |
| Net weight | 1.1 kg |
| Supply frequency | 50/60 Hz +/- 5 % |
| Product destination | Asynchronous motors |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: level 4 conforming to IEC 61000-4-4, Electrostatic discharge immunity test - test level: level 3 conforming to IEC 61000-4-2, Immunity to conducted disturbances - test level: level 3 conforming to IEC 61000-4-6, Radiated radio-frequency electromagnetic field immunity test - test level: level 3 conforming to IEC 61000-4-3, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11, Surge immunity test - test level: level 3 conforming to IEC 61000-4-5 |
|---|---|
| Standards | IEC 61800-5-1, IEC 61800-3 |
| Product certifications | CE, EAC, KC |
| IP degree of protection | IP20 without blanking plate on upper part, IP4X top |
| Pollution degree | 2 conforming to IEC 61800-5-1 |
| Environmental characteristic | Dust pollution resistance class 3S2 conforming to IEC 60721-3-3, Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3 |
| Shock resistance | 15 gn conforming to IEC 60068-2-27 for 11 ms |
| Relative humidity | 5…95 % without condensation conforming to IEC 60068-2-3, 5…95 % without dripping water conforming to IEC 60068-2-3 |
| Ambient air temperature for storage | -25…70 °C |
| Ambient air temperature for operation | -10…55 °C without derating, 55…60 °C protective cover from the top of the drive removed with current derating 2.2 % per °C |
| Operating altitude | <= 1000 m without derating |
| Part number | ATV310HU15N4E |
|---|---|
| Type designation | ATV310 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Warranty (in months) | 18 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 16.000 cm |
| Package 1 Width | 17.500 cm |
| Package 1 Length | 19.500 cm |
| Package 1 Weight | 1.264 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 33 |
| Package 2 Height | 72.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 58.000 kg |
| Shipping weight | 1.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
