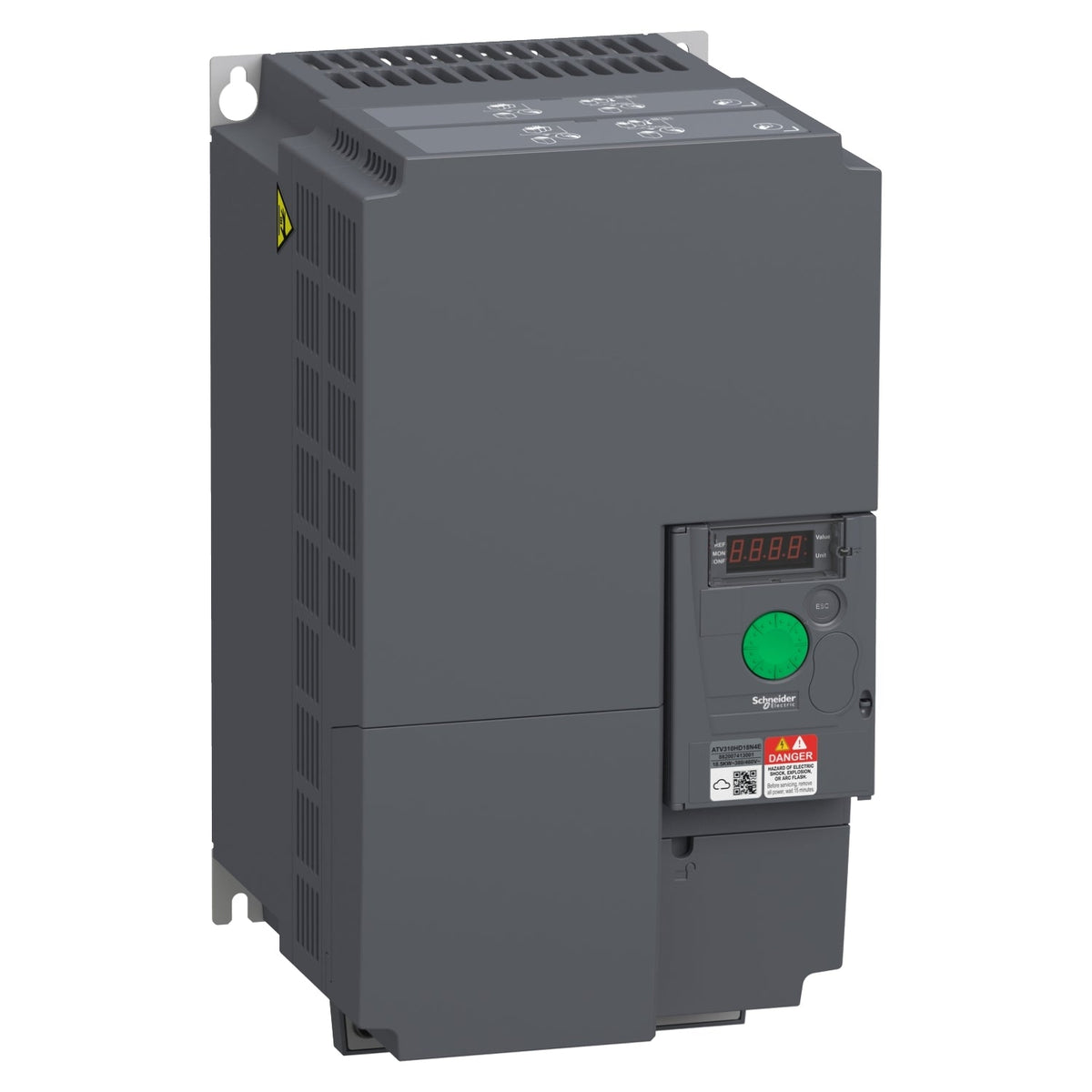

Schneider Electric ATV310HD18N4E Easy Altivar 310 ATV310 18.5 kW 380-460V IP20 Variable Frequency Drive

The Schneider Electric ATV310HD18N4E is a three-phase variable speed drive from the Easy Altivar 310 range, rated 18.5 kW heavy duty (22 kW normal duty) at a 380-460 V supply. It delivers a continuous output current of 39 A in heavy duty mode, communicates over Modbus RTU through a front-panel RJ45 port, and drives asynchronous motors on simple machines without an integrated EMC filter.

Technical Specifications

Certifications & Standards

• CE
• EAC
• KC
• IEC 61800-5-1
• IEC 61800-3

Selection Notes

The ATV310HD18N4E carries two nameplate ratings on the same frame: 18.5 kW heavy duty with a 58.5 A 60 s transient current for constant-torque loads that need overload margin at start, and 22 kW normal duty with a lower 47.3 A transient margin for variable-torque loads that rarely overload. Pick the heavy duty rating when the driven machine needs the 170-200% transient overtorque headroom; pick the normal duty rating to run the larger 22 kW motor on the same drive frame when the load itself has less starting demand. This variant ships without an integrated EMC filter; add an external filter if the installation needs Class C3 conducted-emission compliance, or choose the EF-suffix sibling that has one built in. The 22 kA heavy duty short-circuit withstand sets the upstream protective device coordination.
