ATS22D32S6, Altistart 22 Series Soft Starter, 15 kW, 32 A, 230 to 600V AC

Schneider Electric ATS22 Soft Starter Series – Overview

Schneider Electric ATS22 soft starters are compact and reliable motor starting solutions designed for smooth acceleration and deceleration of asynchronous motors in standard industrial applications. The ATS22 series focuses on reducing mechanical stress, limiting starting current, and simplifying motor starting without advanced digital control requirements. With a proven design and straightforward configuration, ATS22 soft starters are commonly used for pumps, fans, compressors, conveyors, and general-purpose machinery where controlled motor starting is required.

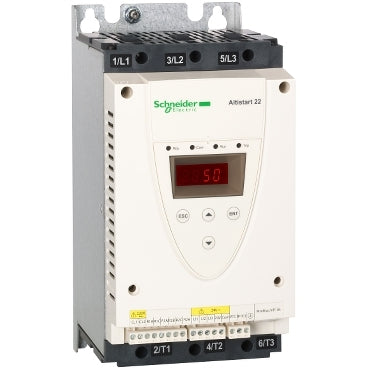

Product Description: ATS22D32S6

The Schneider ATS22D32S6 is an Altistart 22 motor soft starter rated for a nominal operational current of 32 A and designed for three-phase supply voltages from 230 V up to 600 V. Depending on supply voltage, the unit covers motors from 7.5 kW at 230 V up to 18.5 kW at 500 V (typical ratings: 7.5 kW @230 V; 15 kW @400–440 V; 18.5 kW @500 V). The ATS22D32S6 uses torque-controlled starting (current-limited to 3.5 × In) to provide a smooth, controlled ramp that limits inrush and mechanical stress—making it well suited to pumps, fans, compressors and light conveyor applications where reduced starting torque and controlled current are required. This model includes an internal bypass function to reduce power dissipation during run and support energy-efficient operation. Factory default current and protection settings are provided for quick commissioning, while discrete relay outputs and standard control-voltage inputs support straightforward integration into typical industrial control panels.

Key Soft Starter Attributes
