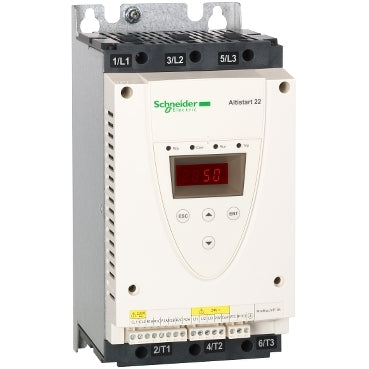

ATS22D17Q, Altistart 22 Series Soft Starter, 7,5 kW, 17 A, 230 to 440V AC

Schneider Electric ATS22 Soft Starter Series – Overview

Schneider Electric ATS22 soft starters are compact and reliable motor starting solutions designed for smooth acceleration and deceleration of asynchronous motors in standard industrial applications. The ATS22 series focuses on reducing mechanical stress, limiting starting current, and simplifying motor starting without advanced digital control requirements. With a proven design and straightforward configuration, ATS22 soft starters are commonly used for pumps, fans, compressors, conveyors, and general-purpose machinery where controlled motor starting is required.

Product Description: ATS22D17Q

The Schneider ATS22D17Q (Altistart 22) is a compact motor soft starter for 3‑phase supplies, rated for operation across the 230–440 V class. It is specified for a starter rating of 17 A with a factory set current of 14.8 A, supporting typical motor power ratings of 4 kW at 230 V and 7.5 kW at 400–440 V. Designed primarily for pumps and fans, the ATS22D17Q uses torque (current) control with a current limit of 3.5 In to reduce mechanical stress and limit inrush current during industrial motor starting. Standout, verified features for this SKU include an integrated bypass to reduce power dissipation in run, basic motor protection functions (thermal protection and phase-failure detection) and compact assembly with a heatsink for panel mounting. The ATS22D17Q is suitable for procurement when you need a straightforward, reliable solution for industrial motor starting where simple configuration, limited communication needs, and reduced starting torque are the main priorities.

Key Soft Starter Attributes
