ATH230U75N4
Model no
ATH230
$792.52 On request Dispatch — · From TürkiyeGet a Quote

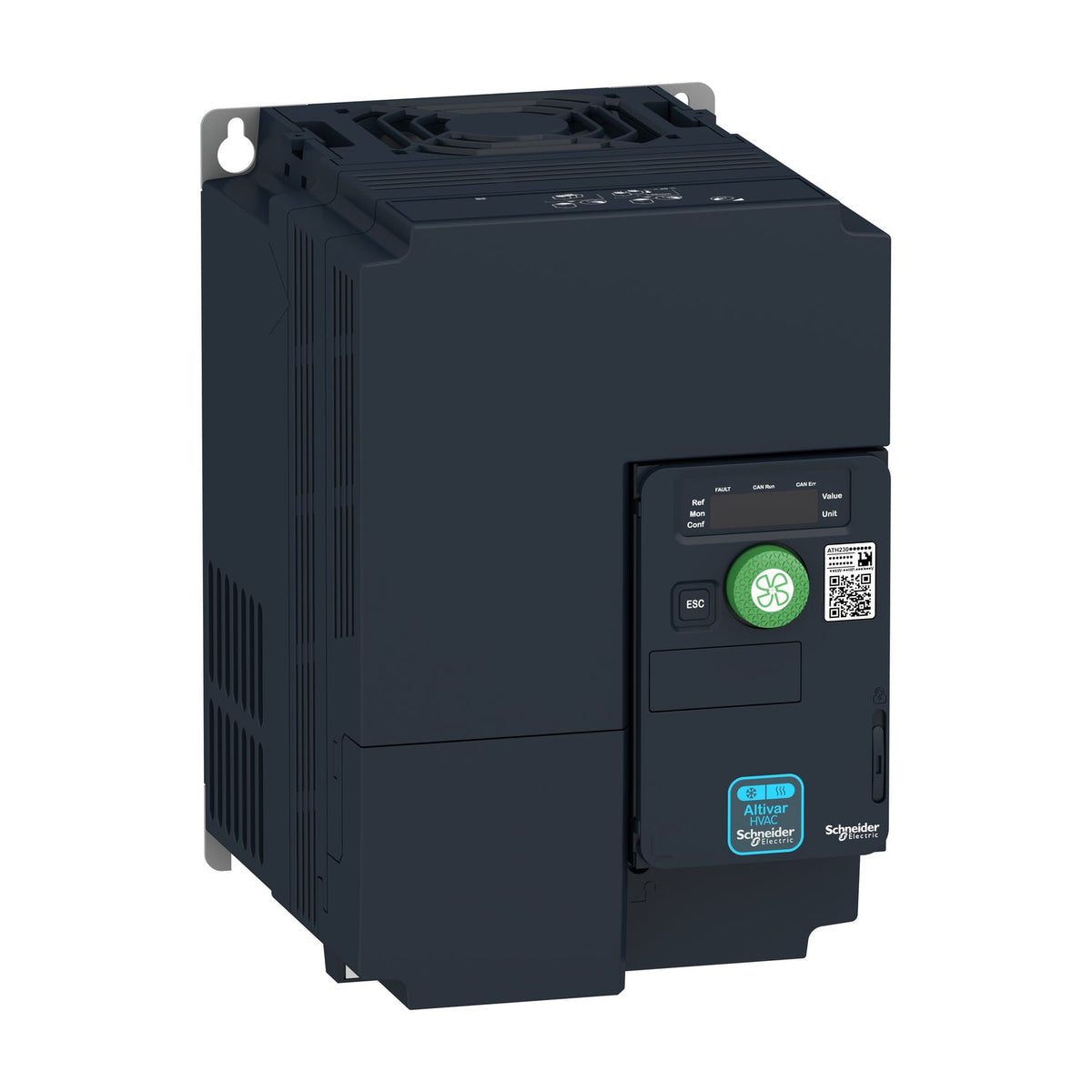

Schneider Electric ATH230U75N4 Altivar HVAC ATH230 7.5 kW 380-500 V 3-Phase IP20 Variable Frequency Drive

Schneider Electric ATH230U75N4 Altivar HVAC ATH230 VFD, 7.5 kW, 380-500 V 3-phase, IP20, STO, BACnet/Modbus.

Rated current
17.0 A
Rated operational voltage
380–500 V AC
Motor power
7.5 kW
Poles
3P
Communication
Modbus serial, BACnet MS/TP (BACnet/IP optional module)
EAN
3606487882183
Description

About the ATH230

The Schneider Electric ATH230U75N4 is a 7.5 kW variable frequency drive from the Altivar HVAC ATH200 range, built for HVAC OEM pump, fan, and compressor panels. It accepts a 380-500 V 3-phase supply, delivers a 17.0 A nominal output current, and mounts in IP20 enclosures with an integrated Class C2 EMC filter and native Safe Torque Off (STO) safety.

Certifications & Standards

  • cULus
  • CE
  • UKCA
  • IEC 61800-5-1
  • IEC 61800-3
  • UL 508C

Selection Notes

Size the ATH230U75N4 to the driven motor's nameplate current, not the drive's frame rating: its 17.0 A nominal output current at 380-500 V sets the ceiling for the connected pump, fan, or compressor motor. Within the ATH230 line, the 380-500 V 3-phase variant applies where the panel's incoming 3-phase supply matches that band — pick the sibling with a different current or supply rating if the OEM panel's motor or incoming feed differs. The integrated STO input lets the drive sit inside a safety circuit (SIL 3 / PL e) without an external contactor to remove torque, and the native Modbus and BACnet MS/TP ports let a building automation system read status and write speed setpoints directly, without a protocol gateway.

Applications

The 3-phase, 380-500 V rating targets HVAC OEM panels that run asynchronous or synchronous pump, fan, and compressor motors up to 7.5 kW. Native BACnet MS/TP and Modbus serial ports let it report status and accept speed setpoints from a building management system without a separate gateway.

Specification

Full specification

97 values · Last verified 30 Oct 2026

Main 22

Range of Product Altivar HVAC ATH200
Product Specific Application HVAC
Product or Component Type Variable speed drive
Variant Standard version
Device short name ATH230
Product destination Asynchronous motors, Synchronous motors
Mounting Mode Cabinet mount
IP Degree of Protection IP20
Phase 3 phase
[Us] rated supply voltage 380...500 V - 15...10 %
Relative symmetric mains voltage tolerance 10 %
Supply frequency 50...60 Hz - 5...5 %
Relative symmetric network frequency tolerance 5 %
nominal output current 17.0 A
Maximum transient current 18.7 A
Motor power kW 7.5 kW
Maximum Horse Power Rating 10 hp
Safety Function STO (safe torque off)
Safety level SIL 3 IEC 61508, PL = e ISO 13849-1
EMC filter Class C2 EMC filter integrated
Communication port protocol Modbus serial, BACnet MS/TP
Option card Communication module BACnet IP

Complementary 47

Apparent power 16.2 kVA at 500 V
Power dissipation in W 229 W
Discrete input number 7
Discrete input type STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0…30 kHz, 24 V DC 30 V)
Discrete input logic Positive logic (source), Negative logic (sink)
[Us] rated supply voltage 24 V DC
Discrete output number 1
Discrete output type Open collector DQ+ 0…1 kHz 30 V DC 100 mA, Open collector DQ- 0…1 kHz 30 V DC 100 mA
Analogue input number 3
Analogue input type AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits, AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
Analogue output number 1
Analogue output type Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits, Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Relay output number 2
Relay output type Configurable relay logic R1A 1 NO 100000 cycles, Configurable relay logic R1B 1 NC 100000 cycles, Configurable relay logic R1C, Configurable relay logic R2A 1 NO 100000 cycles, Configurable relay logic R2C
Maximum switching current Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC, Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC, Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC, Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC, Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
Minimum switching current Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Physical interface 2-wire RS 485
Connector Type RJ45
Method of access Server Modbus serial, Subordinate BACnet MS/TP
Transmission Rate 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps, 9.6, 19.2, 38.4, 76.8 kbit/s
Transmission frame RTU, MS/TP
Number of addresses 0…247, 0…127
Data format 8 bits, configurable odd, even or no parity 1or 2 stop
Type of polarization No impedance
Line current 26.5 A 380 V, 18.7 A 500 V
Prospective line Isc 22 kA
Output frequency 0.599 kHz
Output voltage <= power supply voltage
Switching frequency 2...16 kHz adjustable, 4...16 kHz with derating
nominal switching frequency 4 kHz
4 quadrant operation possible True
Asynchronous motor control profile Voltage/frequency ratio, 5 points, Flux vector control without sensor, standard, Voltage/frequency ratio - Energy Saving, quadratic U/f, Flux vector control without sensor - Energy Saving, Voltage/frequency ratio, 2 points
Synchronous motor control profile Vector control without sensor
Acceleration and deceleration ramps Linear, U, S, CUS, Ramp switching, Acceleration/deceleration ramp adaptation, Acceleration/deceleration automatic stop with DC injection
Motor slip compensation Automatic whatever the load, Adjustable 0...300 %, Not available in voltage/frequency ratio (2 or 5 points)
Braking to standstill By DC injection
Brake chopper integrated True
Standards IEC 61800-5-1, IEC 61800-3, UL 508C, IEC 61800-3 environment 1 category C2, IEC 61800-3 environments 2 category C3, IEC 60721-3, IEC 61508, IEC 13849-1
Product certifications CULus, CE, UKCA, KC, EAC, ATEX, RCM
Marking CULus, CE, UKCA, KC, EAC, ATEX, RCM
With safety function Safe torque off (STO) True
Protection type Line supply phase loss drive, Motor phase loss motor, Line supply overvoltage and undervoltage drive, Overheating protection drive, Overload motor, With PTC probes motor, Short-circuit between motor phases drive, Overcurrent between output phases and earth drive
Width 5.9 in (150 mm)
Height 9.1 in (232 mm)
Depth 7.008 in (178 mm)
Net Weight 7.9 lb(US) (3.6 kg)
Function Available Fire mode, Run permissive, PID controller, Additional PID, Damper control, Underload detection for broken belt

Environment 14

Pollution degree 2
Operating altitude <= 3280.84 ft (1000 m) without derating, 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
Operating position Vertical +/- 10 degree
Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Environmental class (during operation) Class 3C3 according to IEC 60721-3-3, Class 3S2 according to IEC 60721-3-3
Maximum acceleration under shock impact (during operation) 150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation) 10 m/s² at 13...200 Hz
Relative humidity 5…95 % without condensation or dripping water EN/IEC 60068-2-3
Volume of cooling air 15850.6 Gal/hr(US) (60 m3/h)
Overvoltage category III
Noise level 54 dB
Ambient air transport temperature -13…158 °F (-25…70 °C)
Ambient air temperature for operation 14…122 °F (-10…50 °C) without derating, 122…140 °F (50…60 °C) with derating factor
Ambient Air Temperature for Storage -13…158 °F (-25…70 °C)
Show all 97 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number ATH230U75N4
Type designation ATH230
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606487882183

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 3.6 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
