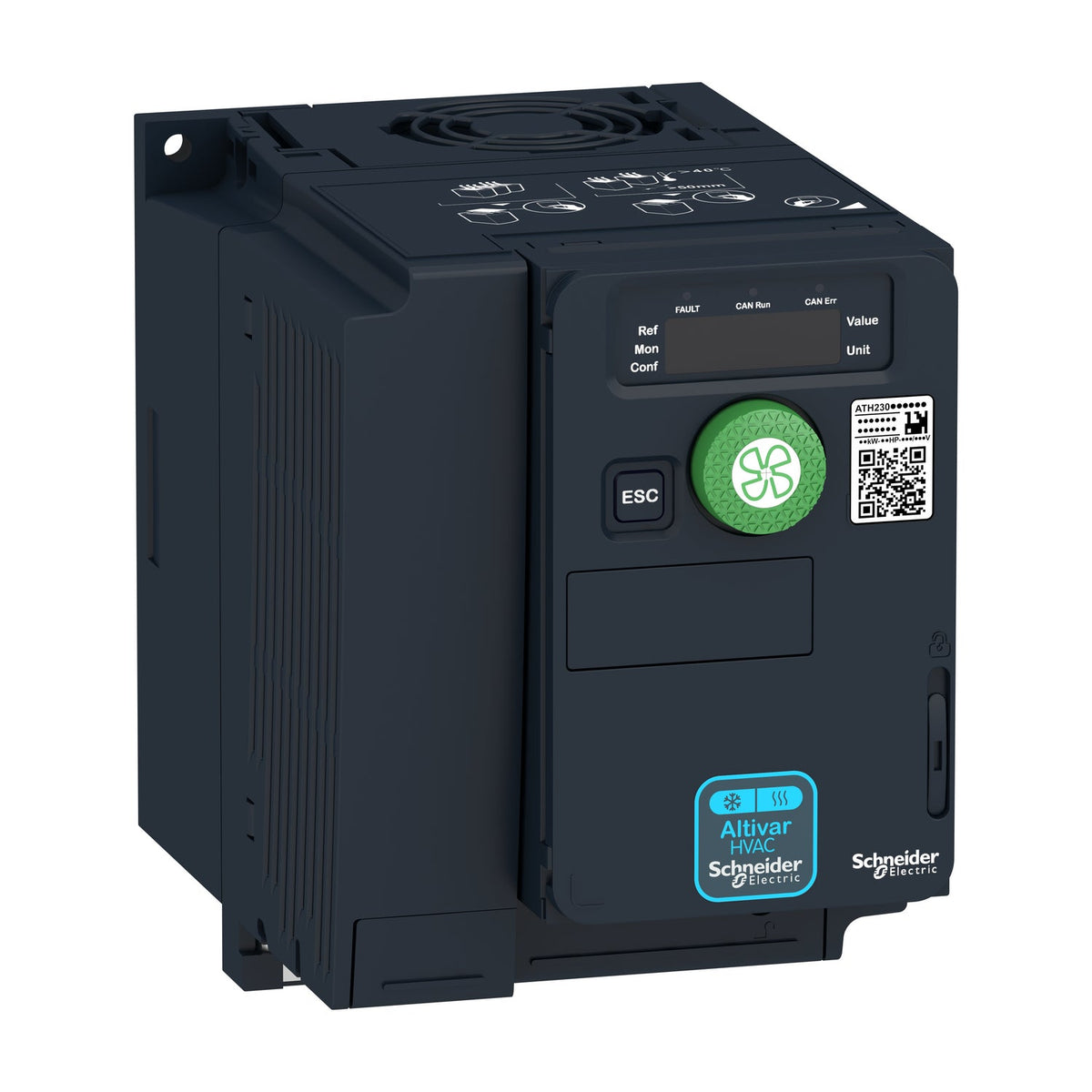

Schneider Electric ATH230U22M2 Altivar HVAC ATH230 VFD, 2.2 kW, 200-240 V 1-phase, IP20, STO, BACnet/Modbus.
The Schneider Electric ATH230U22M2 is a 2.2 kW variable frequency drive from the Altivar HVAC ATH200 range, built for HVAC OEM pump, fan, and compressor panels. It accepts a 200-240 V 1-phase supply, delivers a 11.9 A nominal output current, and mounts in IP20 enclosures with an integrated Class C2 EMC filter and native Safe Torque Off (STO) safety.
Size the ATH230U22M2 to the driven motor's nameplate current, not the drive's frame rating: its 11.9 A nominal output current at 200-240 V sets the ceiling for the connected pump, fan, or compressor motor. Within the ATH230 line, the 200-240 V 1-phase variant applies where a single-phase incoming supply matches that band — pick the sibling with a different current or supply rating if the OEM panel's motor or incoming feed differs. The integrated STO input lets the drive sit inside a safety circuit (SIL 3 / PL e) without an external contactor to remove torque, and the native Modbus and BACnet MS/TP ports let a building automation system read status and write speed setpoints directly, without a protocol gateway.
The 1-phase, 200-240 V rating targets HVAC OEM panels that run asynchronous or synchronous pump, fan, and compressor motors up to 2.2 kW. Native BACnet MS/TP and Modbus serial ports let it report status and accept speed setpoints from a building management system without a separate gateway.
| Range of Product | Altivar HVAC ATH200 |
|---|---|
| Product Specific Application | HVAC |
| Product or Component Type | Variable speed drive |
| Variant | Standard version |
| Device short name | ATH230 |
| Product destination | Asynchronous motors, Synchronous motors |
| Mounting Mode | Cabinet mount |
| IP Degree of Protection | IP20 |
| Phase | 1 phase |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| Relative symmetric mains voltage tolerance | 10 % |
| Supply frequency | 50...60 Hz - 5...5 % |
| Relative symmetric network frequency tolerance | 5 % |
| nominal output current | 11.9 A |
| Maximum transient current | 12.1 A |
| Motor power kW | 2.2 kW |
| Maximum Horse Power Rating | 3 hp |
| Safety Function | STO (safe torque off) |
| Safety level | SIL 3 IEC 61508, PL = e ISO 13849-1 |
| EMC filter | Class C2 EMC filter integrated |
| Communication port protocol | Modbus serial, BACnet MS/TP |
| Option card | Communication module BACnet IP |
| Apparent power | 4.8 kVA at 240 V |
|---|---|
| Power dissipation in W | 99 W |
| Discrete input number | 7 |
| Discrete input type | STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0…30 kHz, 24 V DC 30 V) |
| Discrete input logic | Positive logic (source), Negative logic (sink) |
| [Us] rated supply voltage | 24 V DC |
| Discrete output number | 1 |
| Discrete output type | Open collector DQ+ 0…1 kHz 30 V DC 100 mA, Open collector DQ- 0…1 kHz 30 V DC 100 mA |
| Analogue input number | 3 |
| Analogue input type | AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits, AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits |
| Analogue output number | 1 |
| Analogue output type | Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits, Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits |
| Relay output number | 2 |
| Relay output type | Configurable relay logic R1A 1 NO 100000 cycles, Configurable relay logic R1B 1 NC 100000 cycles, Configurable relay logic R1C, Configurable relay logic R2A 1 NO 100000 cycles, Configurable relay logic R2C |
| Maximum switching current | Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC, Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC, Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC, Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC, Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC |
| Physical interface | 2-wire RS 485 |
| Connector Type | RJ45 |
| Method of access | Server Modbus serial, Subordinate BACnet MS/TP |
| Transmission Rate | 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps, 9.6, 19.2, 38.4, 76.8 kbit/s |
| Transmission frame | RTU, MS/TP |
| Number of addresses | 0…247, 0…127 |
| Data format | 8 bits, configurable odd, even or no parity 1or 2 stop |
| Type of polarization | No impedance |
| Line current | 24.0 A 200 V, 20.2 A 240 V |
| Prospective line Isc | 1 kA |
| Output frequency | 0.599 kHz |
| Output voltage | <= power supply voltage |
| Switching frequency | 2...16 kHz adjustable, 4...16 kHz with derating |
| nominal switching frequency | 4 kHz |
| 4 quadrant operation possible | True |
| Asynchronous motor control profile | Voltage/frequency ratio, 5 points, Flux vector control with sensor, standard, Voltage/frequency ratio - Energy Saving, quadratic U/f, Flux vector control without sensor - Energy Saving, Voltage/frequency ratio, 2 points |
| Synchronous motor control profile | Vector control without sensor |
| Acceleration and deceleration ramps | Linear, U, S, CUS, Ramp switching, Acceleration/deceleration ramp adaptation, Acceleration/deceleration automatic stop with DC injection |
| Motor slip compensation | Automatic whatever the load, Adjustable 0...300 %, Not available in voltage/frequency ratio (2 or 5 points) |
| Braking to standstill | By DC injection |
| Brake chopper integrated | True |
| Standards | IEC 61800-5-1, IEC 61800-3, UL 508C, IEC 61800-3 environments 1 category C2, IEC 61800-3 environments 2 category C3, IEC 60721-3, IEC 61508, IEC 13849-1 |
| Product certifications | CULus, CE, UKCA, KC, EAC, ATEX, RCM |
| Marking | CULus, CE, UKCA, KC, EAC, ATEX, RCM |
| With safety function Safe torque off (STO) | True |
| Protection type | Line supply phase loss drive, Motor phase loss motor, Line supply overvoltage and undervoltage drive, Overheating protection drive, Overload motor, With PTC probes motor, Short-circuit between motor phases drive, Overcurrent between output phases and earth drive |
| Width | 4.1 in (105 mm) |
| Height | 5.6 in (142 mm) |
| Depth | 6.2 in (158 mm) |
| Net Weight | 3.5 lb(US) (1.6 kg) |
| Function Available | Fire mode, Run permissive, PID controller, Additional PID, Damper control, Underload detection for broken belt |
| Pollution degree | 2 |
|---|---|
| Operating altitude | <= 3280.84 ft (1000 m) without derating, 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
| Operating position | Vertical +/- 10 degree |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3, Class 3S2 according to IEC 60721-3-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Relative humidity | 5…95 % without condensation or dripping water EN/IEC 60068-2-3 |
| Volume of cooling air | 4226.8 Gal/hr(US) (16 m3/h) |
| Overvoltage category | III |
| Noise level | 48 dB |
| Ambient air transport temperature | -13…158 °F (-25…70 °C) |
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) without derating, 122…140 °F (50…60 °C) with derating factor |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Part number | ATH230U22M2 |
|---|---|
| Type designation | ATH230 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606487957669 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 1.6 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of ATH230 is 11.9 A.
The rated operational voltage of ATH230 is 200–240 V AC.
The rated motor power of ATH230 is 2.2 kW.
The tariff (HS) code on file for ATH230 is 850440.
The EAN (GTIN) of ATH230 is 3606487957669.
ATH230 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
