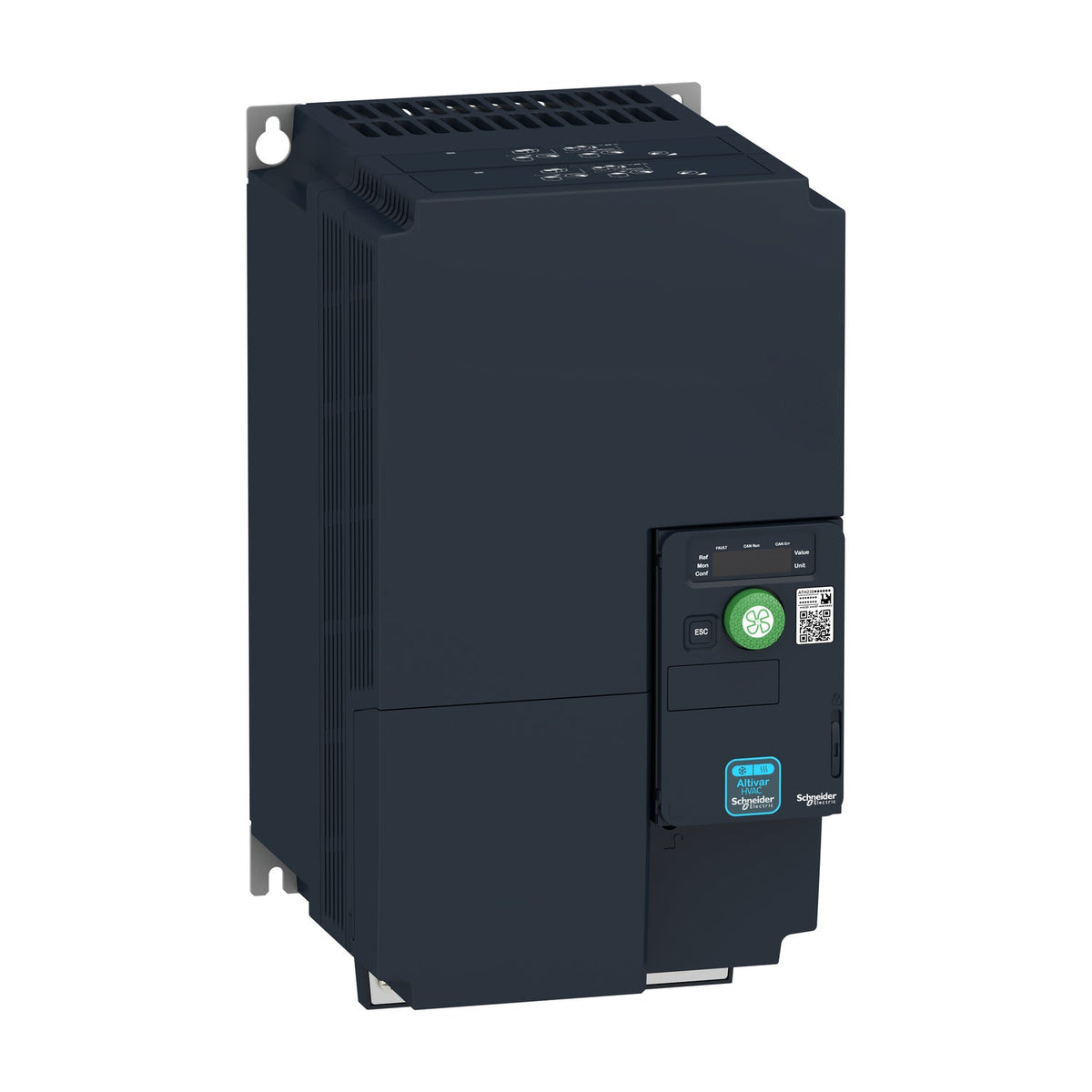

Schneider Electric ATH230D11N4 Altivar HVAC ATH230 VFD, 11 kW, 380-500 V 3-phase, IP20, STO, BACnet/Modbus.
The Schneider Electric ATH230D11N4 is a 3-phase Altivar HVAC ATH230 variable speed drive for HVAC OEM panels, rated for 11 kW motors at 380-500 V. It mounts in IP20 enclosures, integrates Safe Torque Off (STO) safety rated SIL 3 / PL e, and communicates over Modbus serial and BACnet MS/TP for direct building management system integration.
Size the ATH230D11N4 to the driven motor's nameplate current, not the drive's frame rating: its 27.7 A nominal output current at 380-500 V sets the ceiling for the connected pump, fan, or compressor motor. Within the ATH230 line, the 380-500 V 3-phase variant applies where the panel's incoming supply is 3-phase at that voltage band — pick the opposite phase/voltage sibling if the OEM panel's incoming feed differs. The integrated STO input lets the drive sit inside a safety circuit (SIL 3 / PL e) without an external contactor to remove torque, and the native Modbus and BACnet MS/TP ports let a building automation system read status and write speed setpoints directly, without a protocol gateway.
| Range of Product | Altivar HVAC ATH200 |
|---|---|
| Product Specific Application | HVAC |
| Product or Component Type | Variable speed drive |
| Variant | Standard version |
| Device short name | ATH230 |
| Product destination | Asynchronous motors, Synchronous motors |
| Mounting Mode | Cabinet mount |
| IP Degree of Protection | IP20 |
| Phase | 3 phase |
| [Us] rated supply voltage | 380...500 V - 15...10 % |
| Relative symmetric mains voltage tolerance | 10 % |
| Supply frequency | 50...60 Hz - 5...5 % |
| Relative symmetric network frequency tolerance | 5 % |
| nominal output current | 27.7 A |
| Maximum transient current | 30.5 A |
| Motor power kW | 11 kW |
| Maximum Horse Power Rating | 15 hp |
| Safety Function | STO (safe torque off) |
| Safety level | SIL 3 IEC 61508, PL = e ISO 13849-1 |
| EMC filter | Class C3 EMC filter integrated |
| Communication port protocol | Modbus serial, BACnet MS/TP |
| Option card | Communication module BACnet IP |
| Apparent power | 22.2 kVA at 500 V |
|---|---|
| Power dissipation in W | 370 W |
| Discrete input number | 7 |
| Discrete input type | STO safe torque off, 24 V DC1.5 kOhm, DI1...DI6 logic inputs, 24 V DC 30 V), DI5 programmable as pulse input 0…30 kHz, 24 V DC 30 V) |
| Discrete input logic | Positive logic (source), Negative logic (sink) |
| [Us] rated supply voltage | 24 V DC |
| Discrete output number | 1 |
| Discrete output type | Open collector DQ+ 0…1 kHz 30 V DC 100 mA, Open collector DQ- 0…1 kHz 30 V DC 100 mA |
| Analogue input number | 3 |
| Analogue input type | AI1 voltage 0...10 V DC 30 kOhm 10 bits, AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits, AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits |
| Analogue output number | 1 |
| Analogue output type | Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits, Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits |
| Relay output number | 2 |
| Relay output type | Configurable relay logic R1A 1 NO 100000 cycles, Configurable relay logic R1B 1 NC 100000 cycles, Configurable relay logic R1C, Configurable relay logic R2A 1 NO 100000 cycles, Configurable relay logic R2C |
| Maximum switching current | Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC, Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC, Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC, Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC, Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC, Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC |
| Minimum switching current | Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC |
| Physical interface | 2-wire RS 485 |
| Connector Type | RJ45 |
| Method of access | Server Modbus serial, Subordinate BACnet MS/TP |
| Transmission Rate | 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps, 9.6, 19.2, 38.4, 76.8 kbit/s |
| Transmission frame | RTU, MS/TP |
| Number of addresses | 0…247, 0…127 |
| Data format | 8 bits, configurable odd, even or no parity 1or 2 stop |
| Type of polarization | No impedance |
| Line current | 36.6 A 380 V, 25.6 A 500 V |
| Prospective line Isc | 22 kA |
| Output frequency | 0.599 kHz |
| Output voltage | <= power supply voltage |
| Switching frequency | 2...16 kHz adjustable, 4...16 kHz with derating |
| nominal switching frequency | 4 kHz |
| 4 quadrant operation possible | True |
| Asynchronous motor control profile | Voltage/frequency ratio, 5 points, Flux vector control without sensor, standard, Voltage/frequency ratio - Energy Saving, quadratic U/f, Flux vector control without sensor - Energy Saving, Voltage/frequency ratio, 2 points |
| Synchronous motor control profile | Vector control without sensor |
| Acceleration and deceleration ramps | Linear, U, S, CUS, Ramp switching, Acceleration/deceleration ramp adaptation, Acceleration/deceleration automatic stop with DC injection |
| Motor slip compensation | Automatic whatever the load, Adjustable 0...300 %, Not available in voltage/frequency ratio (2 or 5 points) |
| Braking to standstill | By DC injection |
| Brake chopper integrated | True |
| Standards | IEC 61800-5-1, IEC 61800-3, UL 508C, IEC 61800-3 environment 1 category C2, IEC 61800-3 environments 2 category C3, IEC 60721-3, IEC 61508, IEC 13849-1 |
| Product certifications | CULus, CE, UKCA, KC, EAC, ATEX, RCM |
| Marking | CULus, CE, UKCA, KC, EAC, ATEX, RCM |
| With safety function Safe torque off (STO) | True |
| Protection type | Line supply phase loss drive, Motor phase loss motor, Line supply overvoltage and undervoltage drive, Overheating protection drive, Overload motor, With PTC probes motor, Short-circuit between motor phases drive, Overcurrent between output phases and earth drive |
| Width | 7.09 in (180 mm) |
| Height | 13.0 in (330 mm) |
| Depth | 7.8 in (198 mm) |
| Net Weight | 15.0 lb(US) (6.8 kg) |
| Function Available | Fire mode, Run permissive, PID controller, Additional PID, Damper control, Underload detection for broken belt |
| Pollution degree | 2 |
|---|---|
| Operating altitude | <= 3280.84 ft (1000 m) without derating, 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m |
| Operating position | Vertical +/- 10 degree |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3, Class 3S2 according to IEC 60721-3-3 |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13...200 Hz |
| Relative humidity | 5…95 % without condensation or dripping water EN/IEC 60068-2-3 |
| Volume of cooling air | 41211.6 Gal/hr(US) (156 m3/h) |
| Overvoltage category | III |
| Noise level | 58 dB |
| Ambient air transport temperature | -13…158 °F (-25…70 °C) |
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) without derating, 122…140 °F (50…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Part number | ATH230D11N4 |
|---|---|
| Type designation | ATH230 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606487882190 |
| Warranty (in months) | 18 |
|---|
| Country of origin | ID |
|---|---|
| Shipping weight | 6.8 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
