- Part number
- 9001KA2
- Model no
- 9001K
Description
About the 9001K
About the 9001K

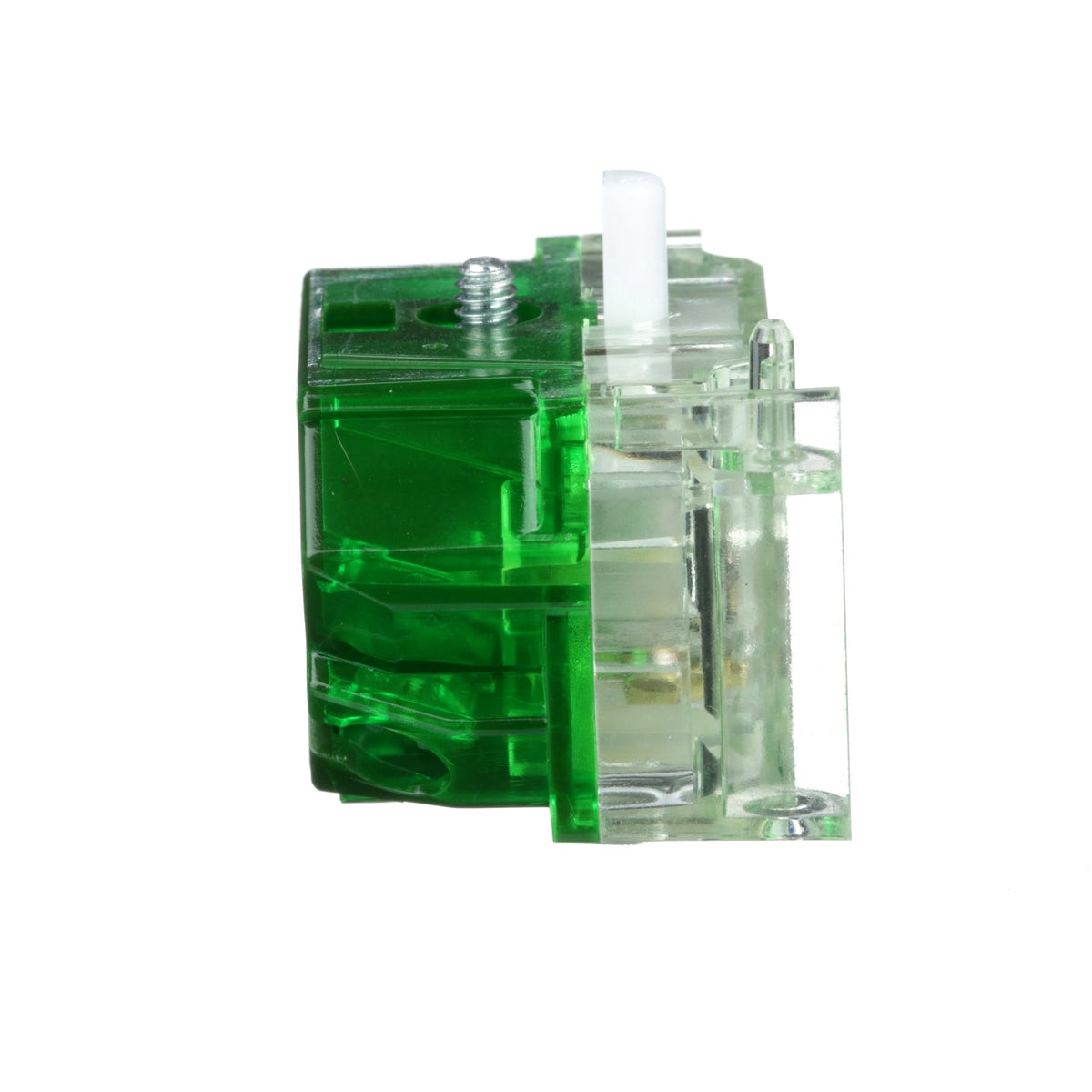

The Schneider Electric 9001KA2 is a 1 NO contact block for the Harmony 9001K and 9001SK 30 mm push buttons and selector switches. Rated at 10 A conventional thermal current and 3 A at 240 V AC-15, it mounts behind a 9001K or 9001SK operator head with screw-clamp terminals, letting panel builders add a normally-open signal without replacing the complete device.
Certifications & Standards
- UL 508
- NEMA
- IEC 60947-5-4
- JIS C 852
- IEC 60947-5-1
- JIS C 4520
- CSA C22.2 No. 14
- IEC 60947-1
- UL 60947-5-1
Selection Notes
The 1 NO rating suits adding a single normally-open signal to an existing 9001K or 9001SK head; for a normally-closed or combined contact, the matching 9001K contact block variant applies instead. The 10 A thermal current and 3 A at 240 V AC-15 rating cover standard control-circuit switching without derating. Screw-clamp terminals keep the block field-serviceable, so a 30 mm operator can be reconfigured without replacing the whole push button.
Specification
Full specification
Main 4
| Range of Product | Harmony 9001K, Harmony 9001SK |
|---|---|
| Product or Component Type | Contact block |
| Device short name | 9001K |
| Contacts type and composition | 1 NO |
Complementary 16
| Terminals description ISO n°1 | (1-2)NC |
|---|---|
| Net Weight | 0.051 lb(US) (0.023 kg) |
| Contact operation | Standard |
| Positive opening | Without |
| Connections - terminals | Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1 |
| Tightening torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| Shape of screw head | Cross slotted |
| Contacts material | Silver alloy contacts |
| Short-circuit protection | 10 A cartridge fuse IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 250 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 2.5 kV IEC 60947-1 |
| [Ie] rated operational current | 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| [Icm] rated short-circuit making capacity | 12 kA 600 V AC-15, 7200 VA, 15 kA 480 V AC-15, 7200 VA, 30 kA 240 V AC-15, 7200 VA, 60 kA 120 V AC-15, 7200 VA, 0.27 kA 250 V DC-13, 7200 VA, 0.55 kA 125 V DC-13, 7200 VA, 0.1 kA 600 V DC-13 |
| Rated breaking capacity | 3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13 |
| [Us] rated supply voltage | 0...600 V |
Environment 8
| Protective treatment | TC |
|---|---|
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Standards | IEC 60947-5-4, JIS C 852, IEC 60947-5-1, JIS C 4520, CSA C22.2 No 14, UL 508, IEC 60947-1, UL 60947-5-1 |
| Product Certifications | UL 508, NEMA |
| Vibration resistance | 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn IEC 60068-2-27 |
Show all 42 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | 9001KA2 |
|---|---|
| Type designation | 9001K |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 785901880011 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | MX |
|---|---|
| Shipping weight | 0.023 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 9001KA2
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- IEC 60947-5-4
- JIS C 852
- IEC 60947-5-1
- JIS C 4520
- CSA C22.2 No 14
- UL 508
- IEC 60947-1
- UL 60947-5-1
Quick answers
Questions about the 9001K
What is the HS code of 9001K for customs?
The tariff (HS) code on file for 9001K is 853890.
What is the EAN of 9001K?
The EAN (GTIN) of 9001K is 785901880011.
Where does 9001K ship from, and how fast?
9001K ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
