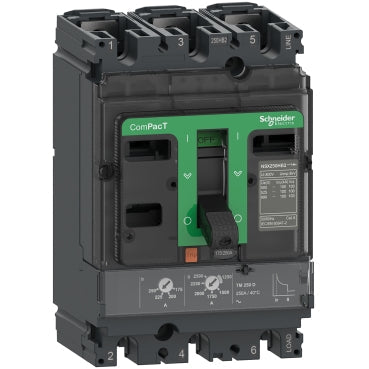

Schneider Electric C25F3TM250 NSX250F 3P 250A 36kA Moulded Case Circuit Breaker

The Schneider Electric C25F3TM250 is a Compact NSX250F moulded case circuit breaker rated at 250A with a 36 kA breaking capacity at 415V AC in a 3-pole configuration. Designed for demanding industrial environments, this MCCB delivers reliable overload and short-circuit protection for power distribution boards, motor feeders, and outgoing circuits in commercial and industrial installations. Weighing just 2.4 kg, the NSX250F series combines robust construction with compact dimensions for easy panel integration.

Technical Specifications

Applications & Use Cases

• Power Distribution: Protecting main and sub-distribution boards in industrial facilities, factories, and large commercial buildings.
• Motor Protection: Providing short-circuit and overload protection for motor feeders and motor control centres (MCCs).
• Outgoing Feeders: Suitable for protecting outgoing circuits in low-voltage switchboards operating at up to 415V AC.
• Control Panels: Integration into control panels and automation cabinets requiring robust, space-efficient circuit protection up to 250A.
• Generator & Transformer Protection: Effective as a protection device downstream of transformers and generator sets in industrial power systems.
