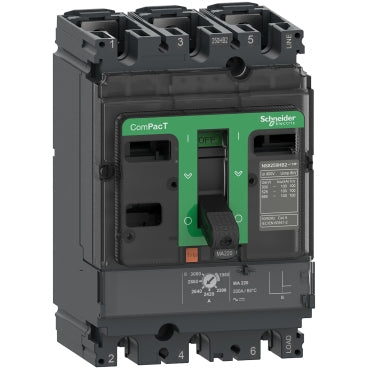

Schneider Electric C25F3MA220 NSX250F 3P 220A 36kA ComPacT Moulded Case Circuit Breaker

The Schneider Electric C25F3MA220 is a ComPacT NSX250F moulded case circuit breaker (MCCB) rated at 220A (at 65°C) and 690V AC 50/60Hz, delivering a breaking capacity of 36 kA at 380/415V AC. Designed for the new generation ComPacT NSX series, this 3-pole (3P 3D) fixed backplate-mount breaker provides reliable overload and short-circuit protection in demanding industrial distribution and control panel applications. Compact at 105mm × 161mm × 86mm and weighing just 2.4 kg, the C25F3MA220 fits efficiently into space-constrained switchboard builds.

Technical Specifications

Certifications & Standards

• IEC 60947-2: International standard for low-voltage switchgear — circuit breakers
• EN/IEC 60947: European and international low-voltage switchgear and controlgear standard
• UL 508: UL standard for industrial control equipment (North American market approval)
• CCC: China Compulsory Certification for electrical products sold in China
• EAC: Eurasian Conformity mark for the Customs Union (Russia, Kazakhstan, Belarus, etc.)
• Marine: Approved for marine/offshore electrical installations
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: EU REACH Regulation compliance — no restricted substances above threshold
• China RoHS: Compliance with China's restriction of hazardous substances regulation
• IEC 60529: Degrees of protection provided by enclosures (IP Code)
• IEC 62262: Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK Code)
• IEC 60664-1: Insulation coordination for equipment within low-voltage supply systems
