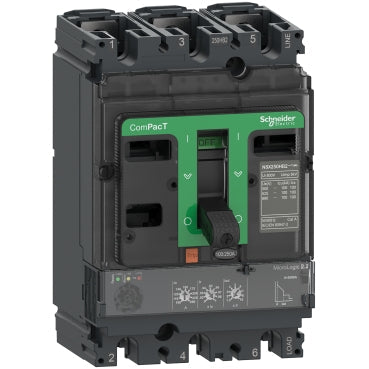

Schneider Electric C25F32D250 NSX250F 3-Pole 250A 36kA 415V ComPacT Molded Case Circuit Breaker

The Schneider Electric C25F32D250 NSX250F is a 250A 3-pole molded case circuit breaker from the ComPacT NSX new generation series, rated at 415V AC with a breaking capacity of 36 kA — delivering robust overload and short-circuit protection for industrial power distribution systems. Designed for panel builders and electrical engineers requiring reliable thermal magnetic protection in a compact frame, the NSX250F combines high performance with a space-efficient design suited to demanding applications.

Technical Specifications

Applications & Use Cases

• Industrial Power Distribution: Protects downstream circuits and equipment in main distribution boards and sub-distribution panels against overload and short-circuit faults.
• Motor Protection: Suitable for protecting large motor feeders and associated control circuits in manufacturing and process industries.
• Commercial & Infrastructure Projects: Ideal for use in commercial buildings, data centres, and infrastructure projects requiring reliable 250A branch circuit protection at 415V.
• Panel Building: Compact NSX frame size is optimised for panel builders seeking high breaking capacity in a reduced footprint.

Frequently Asked Questions

What is the breaking capacity of the C25F32D250 NSX250F?

The NSX250F provides an ultimate breaking capacity (Icu) of 36 kA at 415V AC, meeting the requirements of IEC 60947-2 for industrial-grade short-circuit protection.

Is the NSX250F suitable for three-phase systems?

Yes. The C25F32D250 is a 3-pole device rated at 415V AC, making it directly suitable for three-phase 400/415V TN and TT distribution systems.

What trip technology does the NSX250F use?

The NSX250F series uses thermal magnetic trip technology, providing both overload (thermal) and short-circuit (magnetic) protection without requiring an external power supply.

Can accessories be added to this circuit breaker?

The ComPacT NSX new generation platform supports a wide range of accessories including auxiliary contacts, shunt trips, under-voltage releases, and rotary handles — consult the NSX series accessory catalogue for compatibility.
