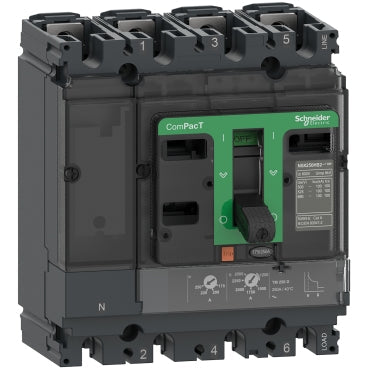

Schneider Electric C16F6TM160 NSX160F 4P 160A 36kA 415V Molded Case Circuit Breaker

The Schneider Electric C16F6TM160 NSX160F is a 4-pole 160A molded case circuit breaker from the ComPacT NSX new generation series, delivering 36 kA breaking capacity at 415V AC for reliable overload and short-circuit protection in industrial power distribution systems. Designed for demanding commercial and industrial installations, the NSX160F combines thermal magnetic trip technology with a compact frame to safeguard equipment and personnel across a wide range of applications.

Technical Specifications

Applications & Use Cases

• Industrial Power Distribution: Protects feeder and sub-feeder circuits in manufacturing plants, processing facilities, and industrial sites rated up to 415V AC.
• Commercial Buildings: Suitable for protecting main and branch circuits in office complexes, shopping centres, and data centres where a compact 160A 4-pole MCCB is required.
• Motor & Load Protection: Provides thermal magnetic overload and short-circuit protection for large motor loads and critical electrical equipment.
• Switchboard & Panelboard Integration: The ComPacT NSX frame design facilitates straightforward integration into standard switchboards and distribution panels.
• Generator & Transformer Circuits: The 36 kA breaking capacity at 415V makes the NSX160F well suited for protection at transformer secondary connections and generator output circuits.
