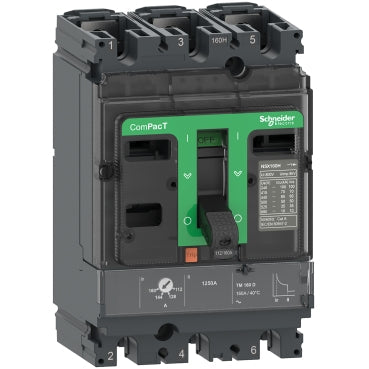

Schneider Electric C16F3TM125 NSX160F 3-Pole 125A 36kA 415V Moulded Case Circuit Breaker

The Schneider Electric C16F3TM125 is a Compact NSX160F series moulded case circuit breaker (MCCB) delivering 125A rated current across 3 poles with a 36 kA breaking capacity at 415V AC. Designed for industrial power distribution and control panel applications, this circuit breaker offers reliable overload and short-circuit protection in demanding environments. The NSX160F platform is widely specified by engineers for its compact footprint, robust construction, and high fault-clearance performance.

Technical Specifications

Applications & Use Cases

• Industrial Power Distribution: Suitable for protecting feeders and sub-circuits in industrial switchboards and motor control centres (MCCs).
• Control Panel Protection: Provides overload and short-circuit protection for machinery control panels operating at 415V AC three-phase supplies.
• Commercial & Infrastructure Installations: Appropriate for switchgear assemblies in commercial buildings, data centres, and utility distribution boards requiring high breaking performance.
• Motor Branch Circuit Protection: Can be used as branch circuit protection upstream of motor starters and variable speed drives in 3-phase systems.

Frequently Asked Questions

• What is the breaking capacity of the C16F3TM125? The NSX160F C16F3TM125 has a rated ultimate breaking capacity (Icu) of 36 kA at 415V AC.
• How many poles does this MCCB have? This is a 3-pole circuit breaker, suitable for three-phase industrial applications.
• What series does this product belong to? It belongs to the Schneider Electric Compact NSX160F series, a widely used MCCB platform for industrial distribution.
• What is the rated current of the C16F3TM125? The rated current is 125A.
