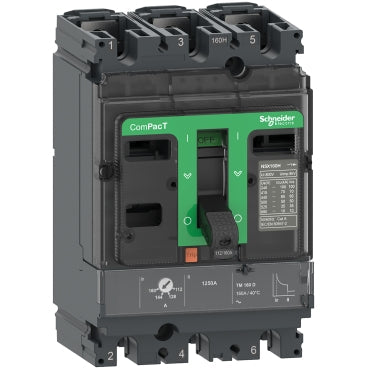

Schneider Electric C10H3TM100 NSX100H 3-Pole 100A 70kA 415V Moulded Case Circuit Breaker

The Schneider Electric C10H3TM100 is a Compact NSX100H series 3-pole moulded case circuit breaker (MCCB) rated at 100A with an ultimate breaking capacity of 70 kA at 415V AC, designed for demanding industrial power distribution and motor protection applications. Identified by model NSX100H, this robust MCCB delivers reliable overcurrent and short-circuit protection in compact switchboards and control panels where high fault-current performance is essential.

Technical Specifications

Applications & Use Cases

• Industrial Power Distribution: Ideal for main and sub-distribution boards in manufacturing plants, process industries, and commercial facilities requiring high breaking capacity protection.
• Motor Circuit Protection: Provides short-circuit and overload protection for motor feeders and motor control centres (MCC) operating at up to 415V AC.
• Control Panel Integration: Compact footprint suits DIN rail or chassis mounting in automation and control panels where space is at a premium.
• Generator & Transformer Outgoing Circuits: High 70 kA breaking capacity makes this MCCB suitable for outgoing circuits close to power sources with elevated prospective fault currents.
• Building Services & Infrastructure: Suited to HVAC, pumping systems, and other critical building services where dependable protection is mandatory.
