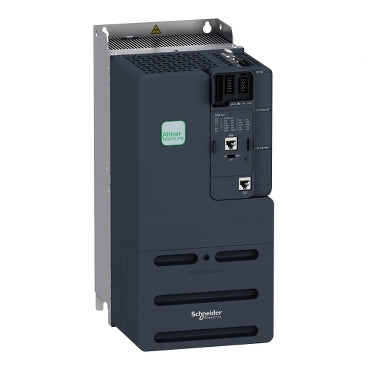

Schneider Electric ATV340D11N4 ATV340 3P 11kW/15kW 380-480V 24A/32A 22kA Variable Speed Drive

The Schneider Electric ATV340D11N4 is an Altivar Machine ATV340 series variable speed drive delivering 11 kW (heavy duty) or 15 kW (normal duty) from a 3-phase 380–480 V supply. Designed for cabinet mounting in demanding industrial applications, the ATV340D11N4 provides rated output currents of 24 A (HD) and 32 A (ND) at 4 kHz, with a short-circuit withstand capacity of 22 kA, making it suitable for robust motor control environments.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — complies with EU directives for electrical safety and EMC
• CSA: Canadian Standards Association — certified for North American market safety requirements
• TUV: TÜV certified — independently verified for functional safety and product quality
• UL: Underwriters Laboratories listed — recognized for safety in the US and Canadian markets
• REACH: EU Regulation (EC) No 1907/2006 — compliant with chemical substance restrictions
• RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials
• EN/IEC 61800-3: Adjustable speed electrical power drive systems — EMC requirements and test methods
• EN/IEC 61800-3 Environment 1 Category C2: EMC compliance for first environment, category C2 distribution
• EN/IEC 61800-3 Environment 2 Category C3: EMC compliance for second environment, category C3 industrial distribution
• EN/IEC 61800-5-1: Safety requirements for adjustable speed drive systems
• IEC 60529: Degrees of protection provided by enclosures (IP code)
• IEC 60721-3: Classification of environmental conditions for transport, storage and use
• IEC 61508: Functional safety of electrical/electronic/programmable safety-related systems
• IEC 13849-1: Safety of machinery — safety-related parts of control systems
• UL 61800-5-1: UL standard for safety of adjustable speed drive systems
• EN/IEC 61131-2: Programmable controllers — equipment requirements and tests

Applications & Use Cases

The ATV340D11N4 variable speed drive is ideal for machine builders and system integrators requiring precise motor control with energy-saving capability across a broad range of industrial applications. Typical use cases include:

• Pump and fan speed control with dynamic energy savings
• Conveyor and material handling systems requiring smooth torque control
• Packaging and textile machinery with demanding dynamic performance
• Compressors and agitators in process industries
• Applications requiring functional safety (SIL/PL) integration via IEC 61508 / ISO 13849-1

Frequently Asked Questions

What is the difference between the heavy duty and normal duty ratings?

In heavy duty (HD) mode, the ATV340D11N4 is rated for 11 kW / 24 A at 4 kHz with higher overload capacity, suitable for demanding loads such as conveyors. In normal duty (ND) mode, it is rated for 15 kW / 32 A, optimized for variable-torque loads like pumps and fans.

What supply voltage is required?

The drive accepts 3-phase 380 to 480 V AC with a tolerance of –15 % to +10 %, covering standard 400 V and 480 V industrial supplies.

Is the ATV340D11N4 suitable for functional safety applications?

Yes. The drive is certified to IEC 61508 and ISO 13849-1, supporting safety functions such as STO (Safe Torque Off) for integration into safety-related control systems.

What mounting arrangement does this drive require?

The ATV340D11N4 is designed for cabinet mounting with dimensions of 180 mm (W) × 385 mm (H) × 249 mm (D) and weighs 9.5 kg.
