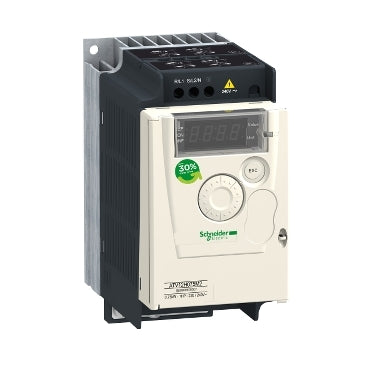

Schneider Electric ATV12H055M2 Altivar 12 0.55kW 0.75HP 1-Phase 200-240V Variable Speed Drive VFD

The Schneider Electric ATV12H055M2 is a compact Altivar 12 variable speed drive (VFD) delivering 0.55 kW (0.75 HP) of motor control on a single-phase 200–240 V AC supply. Rated at 3.5 A output current and weighing just 1.3 kg, the ATV12H055M2 is engineered for space-constrained control panels and light industrial machinery requiring precise speed regulation.

Technical Specifications

Applications & Use Cases

• Conveyor & Material Handling: Smooth speed control for light-duty conveyor belts and indexing systems in manufacturing environments.
• Pump & Fan Control: Energy-efficient variable speed operation for small pumps and ventilation fans, reducing wear and energy consumption.
• Machine Tools & OEM Equipment: Ideal for original equipment manufacturers integrating compact drives into machine tool spindles, mixers, and packaging machinery.
• HVAC Systems: Precise fan speed control in building automation and air-handling units powered from single-phase supplies.
• Industrial Automation: Suitable for integration into control panels where space is at a premium and single-phase input is the available power source.

Frequently Asked Questions

What motor power does the ATV12H055M2 support?

The ATV12H055M2 is rated for motors up to 0.55 kW (0.75 HP).

What is the input supply requirement for the ATV12H055M2?

This drive requires a single-phase 200–240 V AC supply.

What is the rated output current of the ATV12H055M2?

The drive delivers a rated output current of 3.5 A.

Is the Altivar 12 ATV12H055M2 suitable for three-phase motors?

Yes — the Altivar 12 accepts single-phase input and outputs three-phase voltage to control standard three-phase AC induction motors.

What is the weight of the ATV12H055M2?

The unit weighs 1.3 kg, making it one of the lightest drives in its power class.
