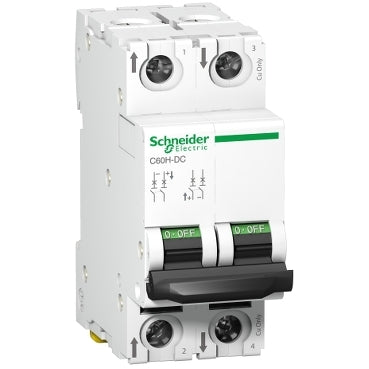

Schneider Electric A9N61528 C60H-DC 2P 10A Miniature Circuit Breaker DC

The Schneider Electric A9N61528 C60H-DC is a 2-pole 10A miniature circuit breaker engineered specifically for DC electrical systems, including solar photovoltaic installations, battery storage circuits, and industrial DC distribution boards. Part of the proven C60H series, this modular MCB mounts directly onto standard DIN rails for fast, reliable panel integration and provides robust overcurrent and short-circuit protection in demanding DC environments.

Technical Specifications

Applications & Use Cases

• Solar PV Systems: Ideal for string-level and array-level DC protection in photovoltaic installations where standard AC breakers are unsuitable.
• Battery Storage: Provides reliable overcurrent protection in battery banks and energy storage system (ESS) DC circuits.
• Industrial DC Panels: Suitable for 24 V, 48 V, 110 V, and higher DC distribution boards in industrial control and automation environments.
• Telecom & Data Centres: Used in DC power distribution units (PDUs) protecting sensitive rectifier and UPS outputs.

Frequently Asked Questions

• Is the A9N61528 suitable for AC circuits? No — the C60H-DC series is rated and arc-quenching optimised exclusively for DC applications. Use the standard C60H range for AC circuits.
• What DIN rail width is required? The C60H-DC mounts on standard 35 mm DIN EN 60715 rails, compatible with most industrial and residential distribution boards.
• Can auxiliary contacts or shunt releases be added? Schneider Electric's iOF, iSD, MX, and MN accessories from the C60/Acti9 range are compatible — verify specific compatibility with the Schneider catalogue before ordering.
• What is the product weight? The A9N61528 weighs 0.256 kg.
