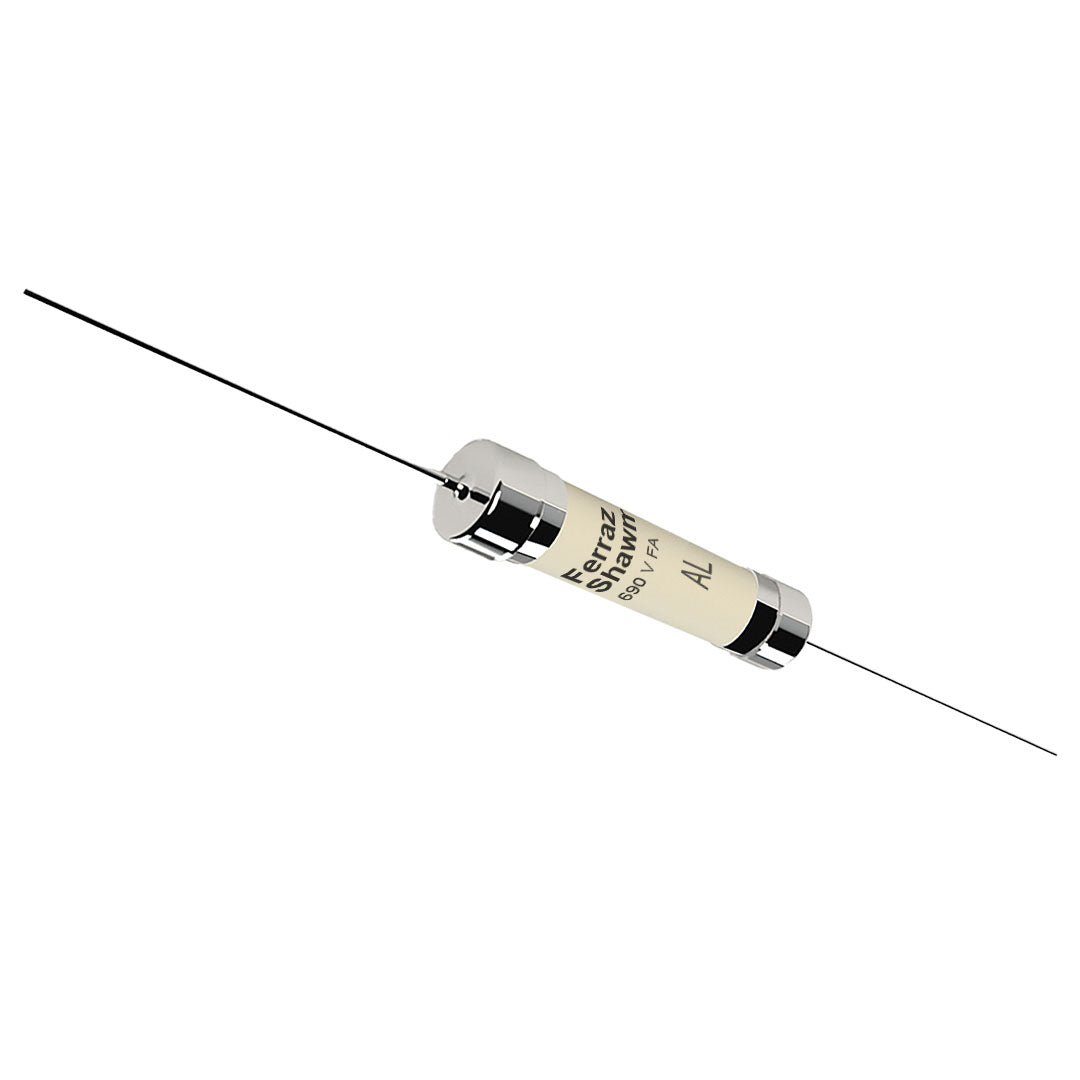

Mersen Y206285 MI6FAP69V1.6 Miniature Fuses Size 6.3x32 690V 1.6A High Speed FA Axial Leads Mounting

% $-7.68
Mersen Y206285 Miniature Fuse
Mersen Y206285 Miniature Fuse
Mersen Y206285 Miniature Fuse
Mersen Y206285 Miniature Fuse

Mersen Y206285 MI6FAP69V1.6 Miniature Fuses Size 6.3x32 690V 1.6A High Speed FA Axial Leads Mounting

Brand: Mersen
Reference No: Y206285
Catalog No: MI6FAP69V1.6
Series: Semiconductor Miniature Fuses Size 6x32 FA 690V AL
Tariff Code (HS): 85361050
Rated Current: 1.6 A
Rated Voltage: 690 V
Stock: 0
Shipping Origin: Turkey EXW
$7.68

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen MI6FAP69V1.6 (Y206285) is a miniature Fuses Size 6.3x32 690V 1.6A High Speed FA Axial Leads Mounting from the Semiconductor Miniature Fuses Size 6x32 FA 690V AL range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No MI6FAP69V1.6
Rated voltage AC IEC 690 V
Ampere Rating 1.6 A
ROHS Compliant Yes
AC or DC AC
Speed/Characteristic High Speed
Fuse Size 6.3x32
Mounting Axial Leads
Clearing I2t At Rated Voltage 1.7 A²s
Melting I2t 0.39 A²s
Min Interrupting Rating (MBC) 30 kA
Design Details FA
Connection/Terminal Type Soldered connection
Product group Miniature Fuses
Body/Insulating Material Ceramic
Power Dissipation at Intermediate Current Value 1.04 W @ In
Product Diameter 6.8 mm
Product Length 76 mm
Product Height 6.8 mm
Sell Pack Quantity 1500 EA
Sell Pack Weight 4.575 kg
Sell Pack Width 365 mm
Sell Pack Length 370 mm
Sell Pack Height 100 mm
Product Weight 0.0028 kg
EAN/UPC 3605340193077

Certifications & Compliance

  • UL
  • CE
  • RoHS
  • UKCA
  • REACH

Technical Details

Short Description
Miniature Fuses Size 6.3x32 690V 1.6A High Speed FA Axial Leads Mounting
Rated Current (Ampere)
1.6 A
Rated Voltage (VAC)
690 V
Mounting Type
Axial Leads
Catalog No
MI6FAP69V1.6
Standards
UL, CE, RoHS, UKCA, REACH
Model Number
MI6FAP69V1.6
Tariff Code
85361050
