Mersen Y1002131 1.002.379 NH fuse-switch disconnector MULTIBLOC® Size 2 400A 3-Pole+N switching Bottom Fitting/panel Connection Screw M10

Free Shipping
% $-1,387.00

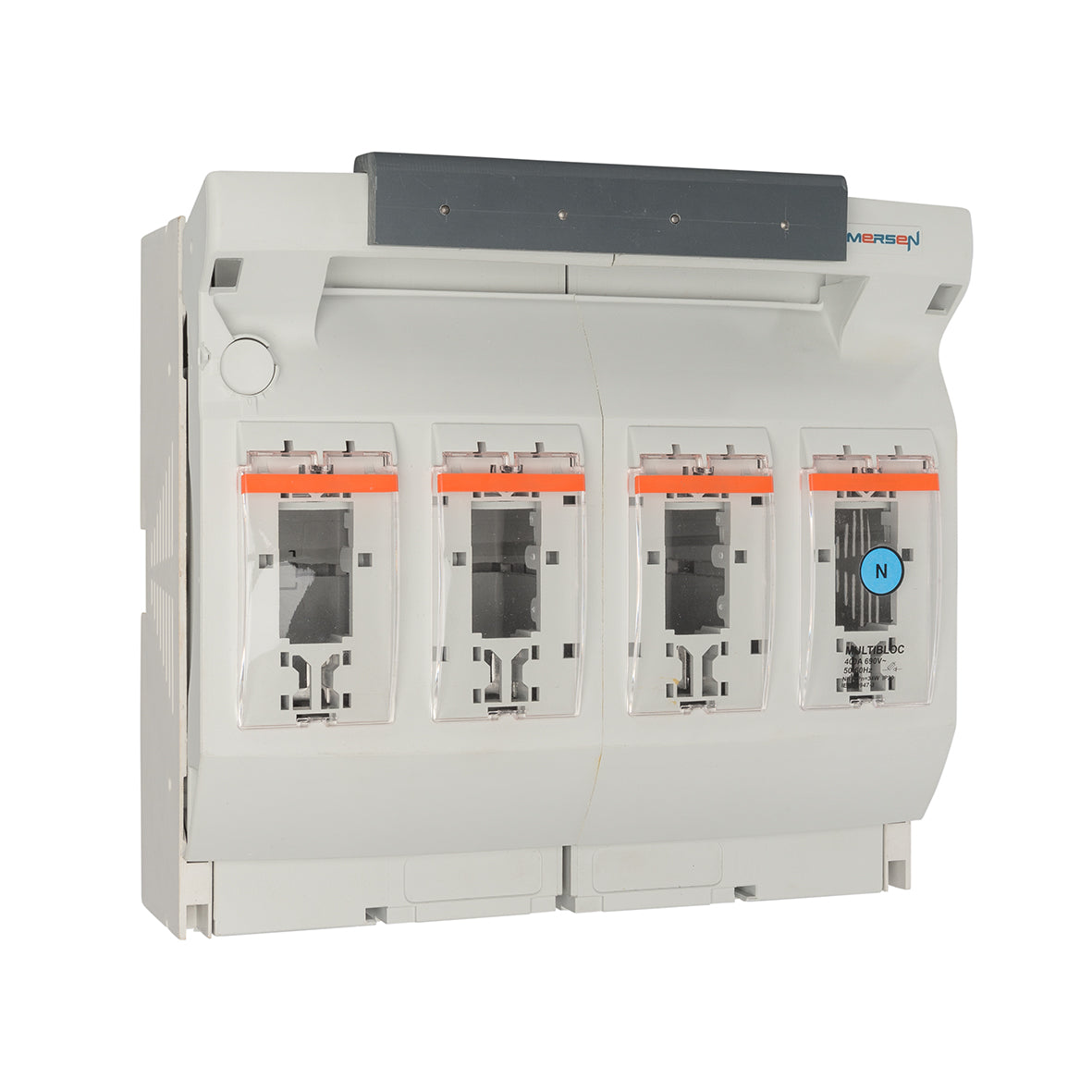

Mersen Y1002131 Fuse Switch Disconnector
Mersen Y1002131 Fuse Switch Disconnector

Mersen Y1002131 1.002.379 NH fuse-switch disconnector MULTIBLOC® Size 2 400A 3-Pole+N switching Bottom Fitting/panel Connection Screw M10

Brand: Mersen
Reference No: Y1002131
Catalog No: 1.002.379
Series: MULTIBLOC® 2.ST8 , Size 2, 400A, 690VAC, Design for Bottom Fitting, 3-,4-pole
Tariff Code (HS): 85362090
Rated Current: 400 A
Rated Voltage: 690 V
Stock: 0
Shipping Origin: Turkey EXW
$1,387.00

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen 1.002.379 (Y1002131) is a nH fuse-switch disconnector MULTIBLOC® Size 2 400A 3-Pole+N switching Bottom Fitting/panel Connection Screw M10 from the MULTIBLOC® 2.ST8 , Size 2, 400A, 690VAC, Design for Bottom Fitting, 3-,4-pole range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No 1.002.379
Frequency (Hz) 50 ... 60 Hz
Rated voltage AC IEC 690 V
Ampere Rating 400 A
Utilization Category AC 23 B @ Ue = AC 400 V; Ie = 400 A AC 22 B @ Ue = AC 500 V; Ie = 400 A AC 21 B @ Ue = AC 690 V; Ie = 315 A
Switchability 4-pole switching
ROHS Compliant Yes
AC or DC AC
Short Circuit Current Rating (SCCR) 80kA@Ue = AC 400 V; Ie = 400 A / 80kA@Ue = AC 500 V; Ie = 400 A / 80kA (3-pole)@Ue = AC 690 V; Ie = 315 A / 50kA (4-pole)@Ue = AC 690 V; Ie = 315 A
Fuse Size 2
Design Details with ready fitted speacial solid link as neutral conductor in pole 4 for leading and lagging switching
Number of Poles 3-Pole+N
Degree of Pollution 3
Rated Impulse Withstand Voltage 12 kV
Rated Insulation Voltage 1000 V
Rated SC Withstand 13 kA / 1 s
Max Power dissipation of Fuse Links Pn 34 W
Max Power dissipation of Solid Links Pn 9 W
Power Dissipation by Ith without Fuse-Links 27 W
Power Dissipation by Ith without Solid Links 67 W
Rated short circuit making capacity with solid links Icm 10.6 kA
Installation Mounting Bottom Fitting/panel
Product group IEC Fuse Switch Disconnectors
Conventional Free Air thermal Current With Fuse-Links Ith 400 A
Conventional Free Air thermal Current - Solid Links 630 A
Product Width 274 mm
Product Length 138.5 mm
Product Height 259 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 5.26 kg
Sell Pack Width 265 mm
Sell Pack Length 325 mm
Sell Pack Height 155 mm
Product Weight 5.26 kg
EAN/UPC 9008567000823

Certifications & Compliance

  • CE
  • RoHS
  • UKCA
  • REACH

Technical Details

Short Description
NH fuse-switch disconnector MULTIBLOC® Size 2 400A 3-Pole+N switching Bottom Fitting/panel Connection Screw M10
Rated Current (Ampere)
400 A
Rated Voltage (VAC)
690 V
Mounting Type
Bottom Fitting/panel
Catalog No
1.002.379
Standards
CE, RoHS, UKCA, REACH
Model Number
1.002.379
Tariff Code
85362090
