Mersen USFM10MI 600VAC 600VDC Midget 30A 3-Pole LED and Microswitch Pressure Plate IP20

% $-150.29

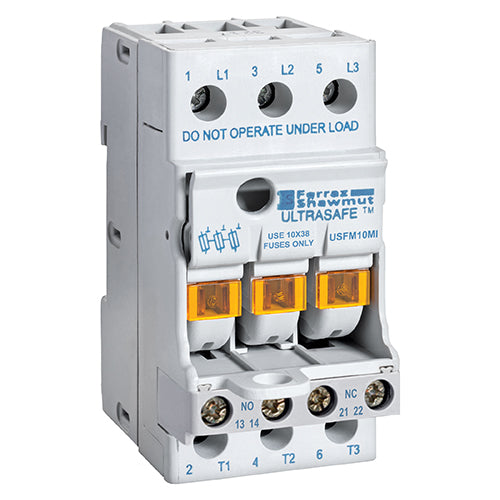

Mersen USFM10MI Fuse Holder
Mersen USFM10MI Fuse Holder

Mersen USFM10MI 600VAC 600VDC Midget 30A 3-Pole LED and Microswitch Pressure Plate IP20

Brand: Mersen
Reference No: USFM10MI
Catalog No: USFM10MI
Series: Ultrasafe 3-Pole Fuse Modules - Midget Fuses
Tariff Code (HS): 85361050
Rated Current: 30 A
Rated Voltage: 600 V
Stock: 0
Shipping Origin: Turkey EXW
$150.29

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen USFM10MI is a 600VAC 600VDC Midget 30A 3-Pole LED and Microswitch Pressure Plate IP20 from the Ultrasafe 3-Pole Fuse Modules - Midget Fuses range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Rated voltage AC UL 600 V
Rated voltage DC UL 600 V
Ampere Rating 30 A
ROHS Compliant Yes
AC or DC AC/DC
Fuse Class Midget
Short Circuit Current Rating (SCCR) 100 kA
Fuse Type/Class Midget
Indication System Yes
Indication System Type LED and Microswitch
Number of Poles 3-Pole
Wiring range CU #10 to #16 AWG
Fuse Installation Method Clip-in
Torque Rating 1.469 N m
Max Fuse Rating 30 A
Housing Material Polyamide
Installation Mounting DIN Rail
Product group Fuse Holders
Product Width 65.5 mm
Product Length 45 mm
Product Height 89.9 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 0.2145 kg
Sell Pack Width 44.4 mm
Sell Pack Length 88.9 mm
Sell Pack Height 77.7 mm
Product Weight 0.2041 kg
EAN/UPC 782001356910

Certifications & Compliance

  • REACH
  • RoHS

Technical Details

Short Description
600VAC 600VDC Midget 30A 3-Pole LED and Microswitch Pressure Plate IP20
Rated Current (Ampere)
30 A
Rated Voltage (VAC)
600 V
Mounting Type
DIN Rail
Catalog No
USFM10MI
Standards
REACH, RoHS
Model Number
USFM10MI
Tariff Code
85361050
