- Part number
- P1068639
- Catalog no
- 15NH2XLGBAT125

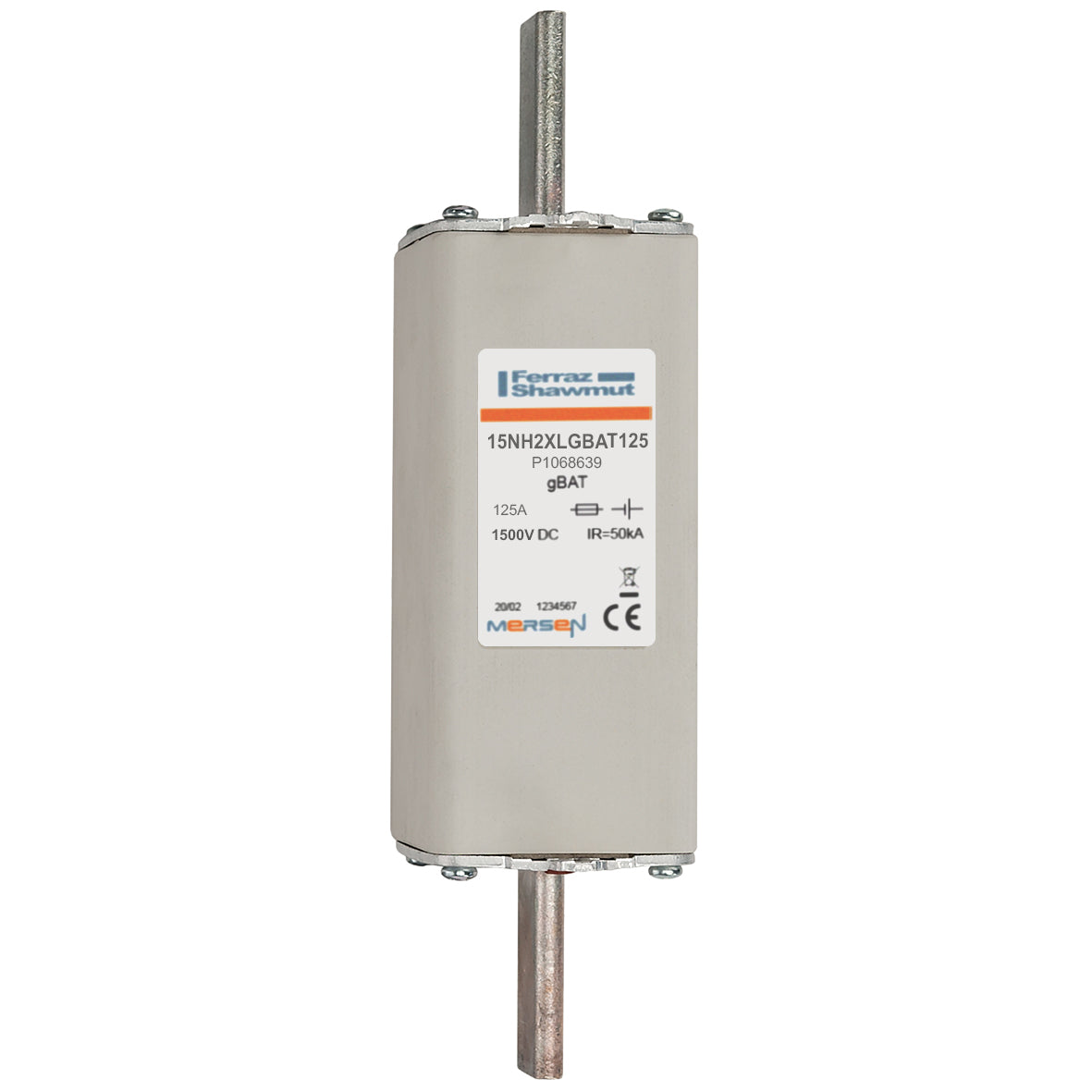

Mersen P1068639 15NH2XLGBAT125 Fuse-link gBAT 1500VDC Size 2XL 125A With Plain Blades For Clip
Fuse-link gBAT 1500VDC Size 2XL 125A With Plain Blades For Clip
Description
About the 15NH2XLGBAT125
About the 15NH2XLGBAT125
The Mersen 15NH2XLGBAT125 (P1068639) is a fuse-link gBAT 1500VDC Size 2XL 125A With Plain Blades For Clip from the NH Fuse-links gBat 1000V-1500V DC range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.
Certifications & Compliance
- UL
- CE
- RoHS
- UKCA
- REACH
Specification
Full specification
| Part number | P1068639 |
|---|---|
| Catalog no | 15NH2XLGBAT125 |
| Brand | Mersen |
| Condition | New, factory sealed |
| Source | Mersen and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 3605340612073 |
| Rated current | 125 A |
|---|---|
| Rated operational voltage | 1500 V AC |
| Shipping weight | 1.05 kg |
|---|---|
| Standards | UL, CE, RoHS, UKCA, REACH |
| Mounting | Clip-on / Busbar |
| HS code | 85361090 |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| ROHS Compliant | Yes |
|---|---|
| AC or DC | DC |
| Fuse Size | 2XL |
| Max. Rated Breaking Capacity DC | 50 kA @ 1500 V, L/R = 2 ms |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Plain Blades |
| Product group | EV and Battery Protection Fuses |
| Power Dissipation at Intermediate Current Value | 13.6 W @ 0.7 In W |
| Power Dissipation at Rated Current Value | 33.7 W |
| Product Width | 51 mm |
| Product Length | 205 mm |
| Product Height | 72 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Width | 115 mm |
| Sell Pack Length | 230 mm |
| Sell Pack Height | 110 mm |
From the manufacturer description; the values above take precedence.
Documents
Documents for P1068639
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CE
- RoHS
- UKCA
- REACH
Quick answers
Questions about the 15NH2XLGBAT125
What is the rated current of 15NH2XLGBAT125?
The rated current of 15NH2XLGBAT125 is 125 A.
Which supply voltage is 15NH2XLGBAT125 rated for?
The rated operational voltage of 15NH2XLGBAT125 is 1500 V AC.
What is the HS code of 15NH2XLGBAT125 for customs?
The tariff (HS) code on file for 15NH2XLGBAT125 is 85361090.
What is the EAN of 15NH2XLGBAT125?
The EAN (GTIN) of 15NH2XLGBAT125 is 3605340612073.
Where does 15NH2XLGBAT125 ship from, and how fast?
15NH2XLGBAT125 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
Mersen NH Fuse-links gBat 1000V-1500V DC
- Brand
- Mersen
- Series
- NH Fuse-links gBat 1000V-1500V DC
