Mersen M084007 MI5FA25V2 Miniature Fuses Size 5x20 250V 2A High Speed FA Clip Mounting

% $-3.60

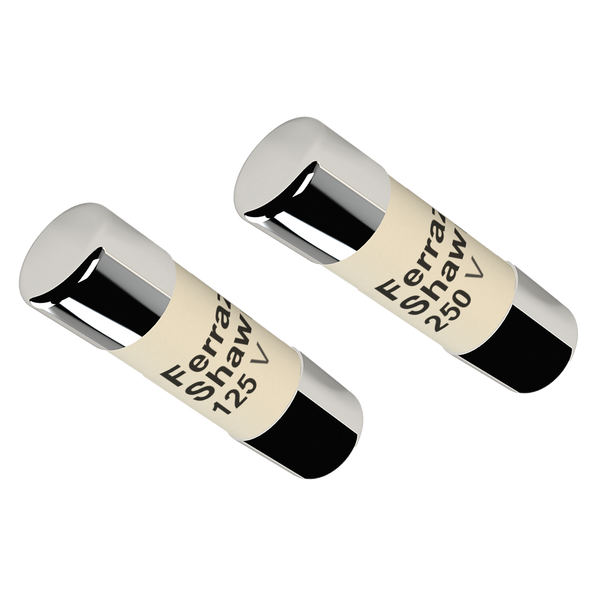

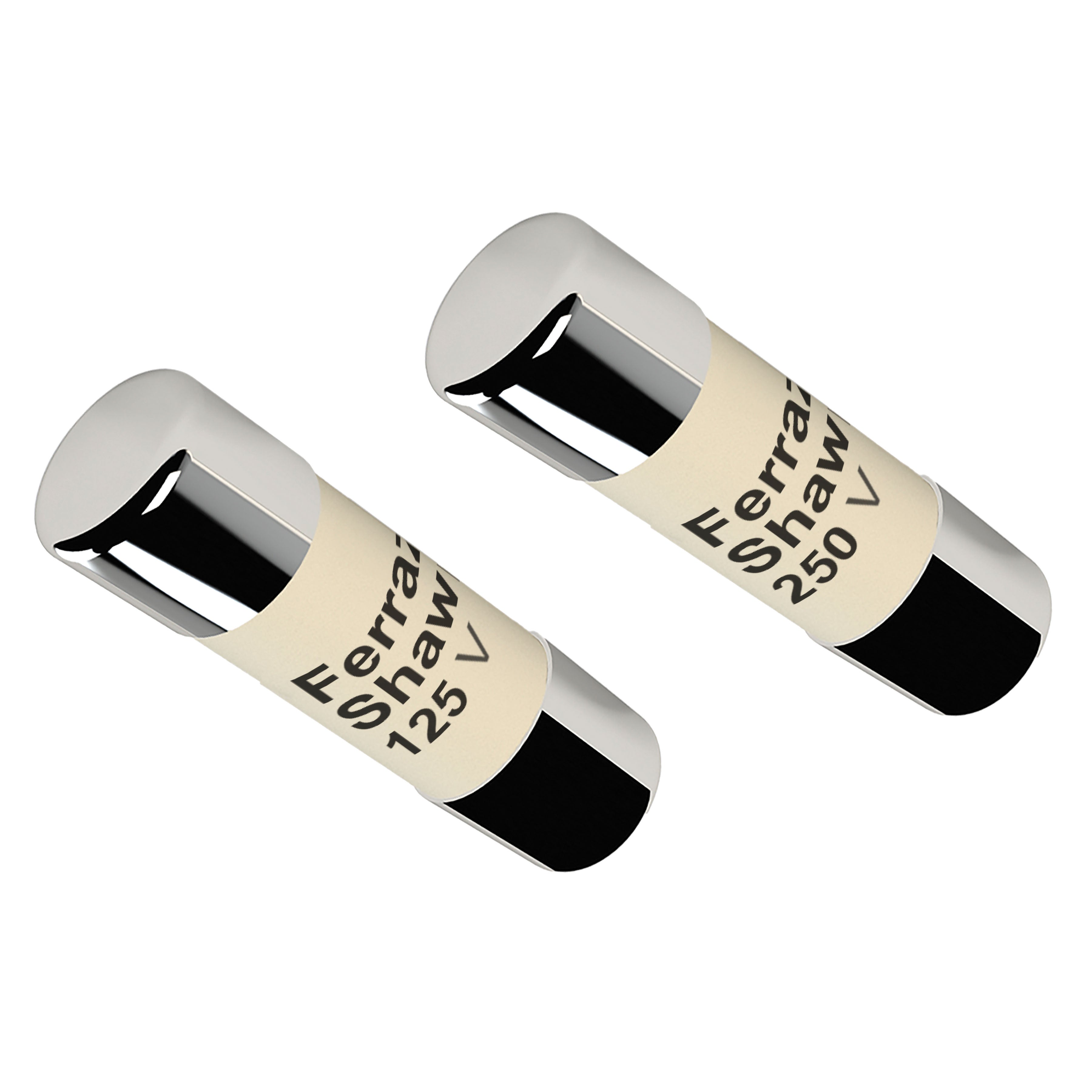

Mersen M084007 Miniature Fuse
Mersen M084007 Miniature Fuse
Mersen M084007 Miniature Fuse
Mersen M084007 Miniature Fuse

Mersen M084007 MI5FA25V2 Miniature Fuses Size 5x20 250V 2A High Speed FA Clip Mounting

Brand: Mersen
Reference No: M084007
Catalog No: MI5FA25V2
Series: Semiconductor Miniature Fuses Size 5x20 FA/FB 125V-250V
Tariff Code (HS): 85361050
Rated Current: 2 A
Rated Voltage: 250 V
Stock: 0
Shipping Origin: Turkey EXW
$3.60

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen MI5FA25V2 (M084007) is a miniature Fuses Size 5x20 250V 2A High Speed FA Clip Mounting from the Semiconductor Miniature Fuses Size 5x20 FA/FB 125V-250V range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No MI5FA25V2
Rated voltage AC IEC 250 V
Ampere Rating 2 A
ROHS Compliant Yes
AC or DC AC
Speed/Characteristic High Speed
Fuse Size 5x20
Mounting Clip
Clearing I2t At Rated Voltage 1.9 A²s
Melting I2t 0.81 A²s
Min Interrupting Rating (MBC) 10 kA
Design Details FA
Connection/Terminal Type Ferrule
Product group Miniature Fuses
Body/Insulating Material Ceramic
Product Diameter 5 mm
Product Length 20 mm
Product Height 5 mm
Sell Pack Quantity 50 EA
Sell Pack Weight 0.1 kg
Sell Pack Width 37 mm
Sell Pack Length 59 mm
Sell Pack Height 29 mm
Product Weight 0.0012 kg
EAN/UPC 3605340059472

Certifications & Compliance

  • UL
  • CE
  • RoHS
  • UKCA
  • REACH

Technical Details

Short Description
Miniature Fuses Size 5x20 250V 2A High Speed FA Clip Mounting
Rated Current (Ampere)
2 A
Rated Voltage (VAC)
250 V
Mounting Type
Clip
Catalog No
MI5FA25V2
Standards
UL, CE, RoHS, UKCA, REACH
Model Number
MI5FA25V2
Tariff Code
85361050
