Part number
L1062679
Catalog no
CMC84I
$41.73 On request Dispatch — · From TürkiyeGet a Quote
Modulostar® CMC8

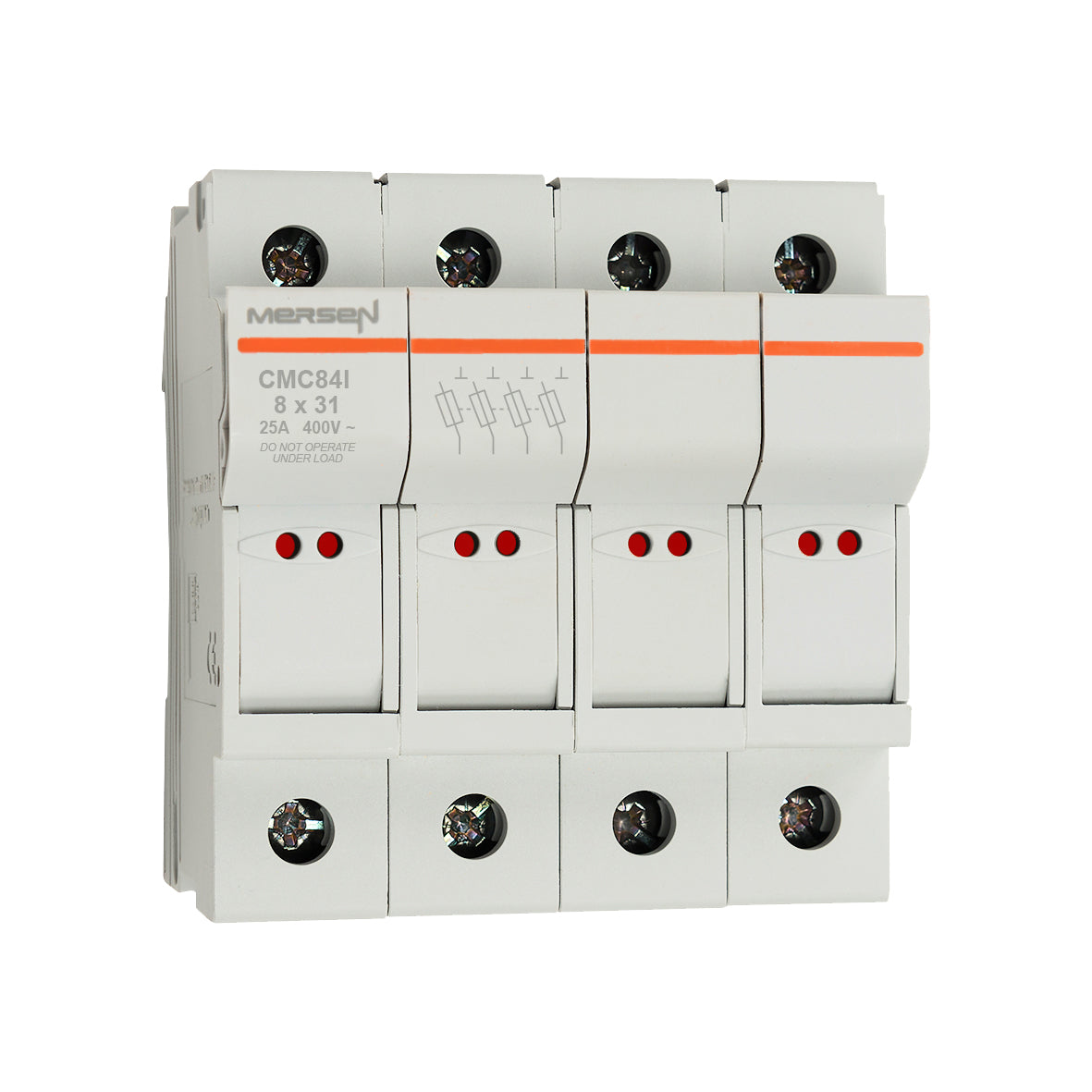

Mersen L1062679 CMC84I Fuse Holder Modulostar® Size 8x32 IEC 400VAC 4-Pole With Visual Indicator IP20

Fuse Holder Modulostar® Size 8x32 IEC 400VAC 4-Pole With Visual Indicator IP20

Rated current
25 A
Rated operational voltage
400 V AC
EAN
3605340602470
Description

About the CMC84I

The Mersen CMC84I (L1062679) is a fuse Holder Modulostar® Size 8x32 IEC 400VAC 4-Pole With Visual Indicator IP20 from the Modulostar® CMC8 range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Certifications & Compliance

  • Bureau Veritas (BV)
  • Korean Register (KR)
  • CE
  • RoHS
  • UKCA
  • Lloyd's Register (LR)
  • REACH
Specification

Full specification

Identification
Part number L1062679
Catalog no CMC84I
Brand Mersen
Condition New, factory sealed
Source Mersen and its authorised distributors
Warranty Manufacturer warranty
EAN 3605340602470
Ratings
Rated current 25 A
Rated operational voltage 400 V AC
Construction and environment
Shipping weight 0.187 kg
Standards Bureau Veritas (BV), Korean Register (KR), CE, RoHS, UKCA, Lloyd's Register (LR), REACH
Mounting DIN Rail
Logistics
HS code 85361050
Ships from Türkiye
Dispatch —
Stock On request
Additional details
ROHS Compliant Yes
AC or DC AC
Fuse Size 8x32
Design Details CMC8 quadruple pole
Indication System Yes
Indication System Type Visual Indicator
Number of Poles 4-Pole
Torque Rating 2 N m
Housing Material PA6
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Max Power dissipation of Fuse Links Pn 2.5 W
Installation Mounting DIN rail acc. EN 60715
Product group Fuse Holders
Product Width 70 mm
Product Length 61.1 mm
Product Height 79.3 mm
Sell Pack Quantity 3 EA
Sell Pack Weight 0.561 kg
Sell Pack Width 90 mm
Sell Pack Length 222 mm
Sell Pack Height 68 mm

From the manufacturer description; the values above take precedence.

Documents

Documents for L1062679

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • Bureau Veritas (BV)
  • Korean Register (KR)
  • CE
  • RoHS
  • UKCA
  • Lloyd's Register (LR)
  • REACH
Quick answers

Questions about the CMC84I

What is the rated current of CMC84I?

The rated current of CMC84I is 25 A.

Which supply voltage is CMC84I rated for?

The rated operational voltage of CMC84I is 400 V AC.

What is the HS code of CMC84I for customs?

The tariff (HS) code on file for CMC84I is 85361050.

What is the EAN of CMC84I?

The EAN (GTIN) of CMC84I is 3605340602470.

Where does CMC84I ship from, and how fast?

CMC84I ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
