Part number
K1062678
Catalog no
CMC83NI
$43.48 On request Dispatch — · From TürkiyeGet a Quote
Modulostar® CMC8

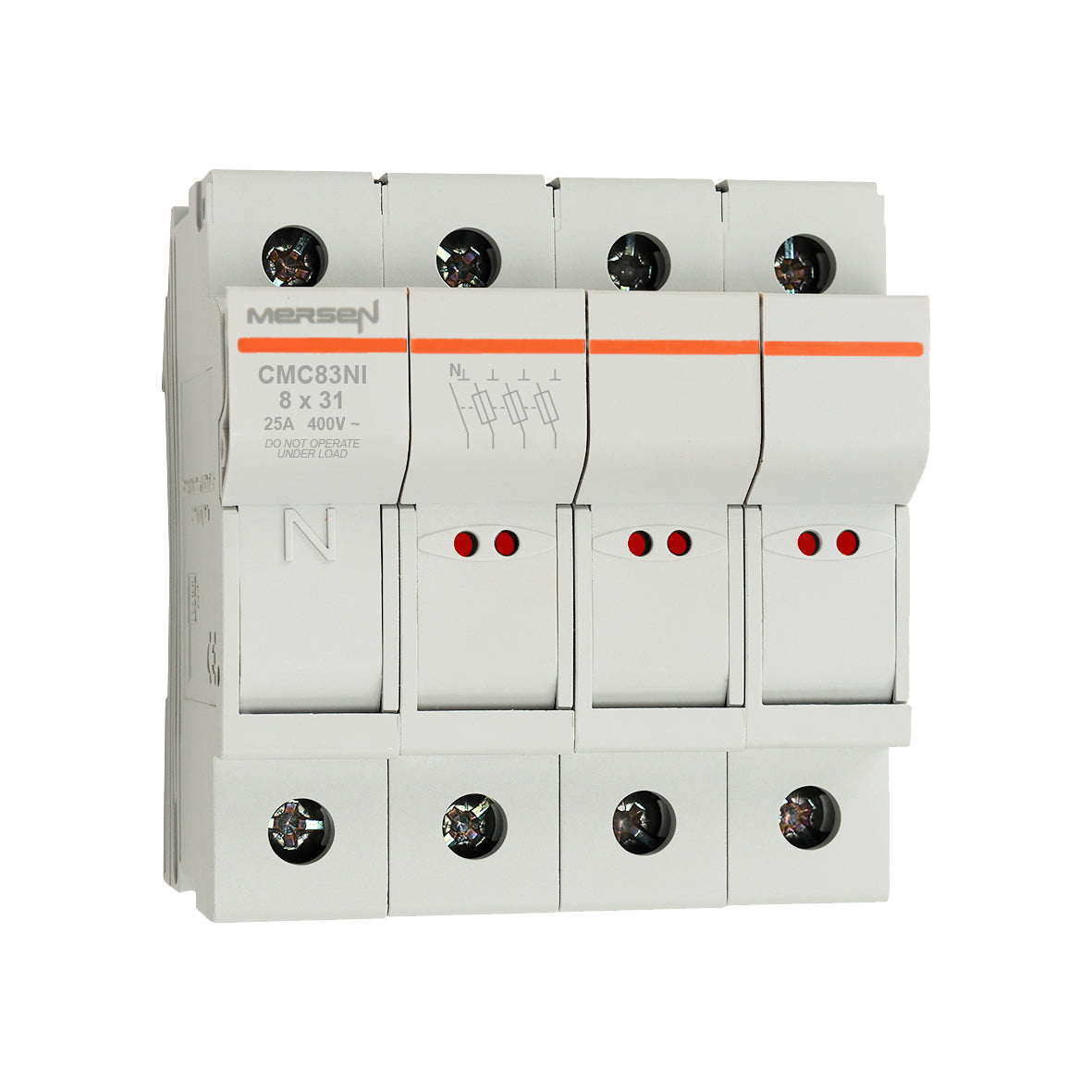

Mersen K1062678 CMC83NI Fuse Holder Modulostar® Size 8x32 IEC 400VAC 3-Pole+N With Visual Indicator IP20

Fuse Holder Modulostar® Size 8x32 IEC 400VAC 3-Pole+N With Visual Indicator IP20

Rated current
25 A
Rated operational voltage
400 V AC
EAN
3605340602463
Description

About the CMC83NI

The Mersen CMC83NI (K1062678) is a fuse Holder Modulostar® Size 8x32 IEC 400VAC 3-Pole+N With Visual Indicator IP20 from the Modulostar® CMC8 range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Certifications & Compliance

  • Bureau Veritas (BV)
  • Korean Register (KR)
  • CE
  • RoHS
  • UKCA
  • Lloyd's Register (LR)
  • REACH
Specification

Full specification

Identification
Part number K1062678
Catalog no CMC83NI
Brand Mersen
Condition New, factory sealed
Source Mersen and its authorised distributors
Warranty Manufacturer warranty
EAN 3605340602463
Ratings
Rated current 25 A
Rated operational voltage 400 V AC
Construction and environment
Shipping weight 0.189 kg
Standards Bureau Veritas (BV), Korean Register (KR), CE, RoHS, UKCA, Lloyd's Register (LR), REACH
Mounting DIN Rail
Logistics
HS code 85361050
Ships from Türkiye
Dispatch —
Stock On request
Additional details
ROHS Compliant Yes
AC or DC AC
Fuse Size 8x32
Design Details CMC8 triple pole + neutral conductor
Indication System Yes
Indication System Type Visual Indicator
Number of Poles 3-Pole+N
Torque Rating 2 N m
Housing Material PA6
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Max Power dissipation of Fuse Links Pn 2.5 W
Installation Mounting DIN rail acc. EN 60715
Product group Fuse Holders
Product Width 70 mm
Product Length 61.1 mm
Product Height 79.3 mm
Sell Pack Quantity 3 EA
Sell Pack Weight 0.567 kg
Sell Pack Width 90 mm
Sell Pack Length 222 mm
Sell Pack Height 28 mm

From the manufacturer description; the values above take precedence.

Documents

Documents for K1062678

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • Bureau Veritas (BV)
  • Korean Register (KR)
  • CE
  • RoHS
  • UKCA
  • Lloyd's Register (LR)
  • REACH
Quick answers

Questions about the CMC83NI

What is the rated current of CMC83NI?

The rated current of CMC83NI is 25 A.

Which supply voltage is CMC83NI rated for?

The rated operational voltage of CMC83NI is 400 V AC.

What is the HS code of CMC83NI for customs?

The tariff (HS) code on file for CMC83NI is 85361050.

What is the EAN of CMC83NI?

The EAN (GTIN) of CMC83NI is 3605340602463.

Where does CMC83NI ship from, and how fast?

CMC83NI ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
