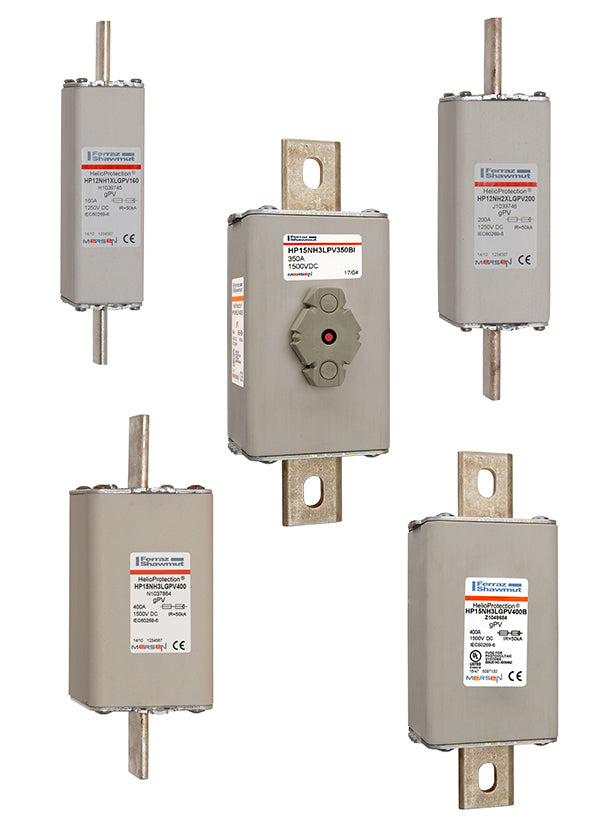

Mersen C1064511 HP15NH1XLGPV125 Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 1XL 125A With Plain Blades For Clip

Name: Mersen C1064511 HP15NH1XLGPV125 Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 1XL 125A With Plain Blades For Clip
Brand: Mersen
SKU: C1064511
Price: 90.15 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Mersen

Reference No: C1064511

Catalog No: HP15NH1XLGPV125

Series: HelioProtection® HP15NH, Photovoltaic fuse-links gPV 1500VDC

Tariff Code (HS): 85361090

Rated Current: 125 A

Rated Voltage: 1500 V

Stock: 0

Shipping Origin: Turkey EXW

$90.15

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Mersen HP15NH1XLGPV125 (C1064511) is a photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 1XL 125A With Plain Blades For Clip from the HelioProtection® HP15NH, Photovoltaic fuse-links gPV 1500VDC range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No	HP15NH1XLGPV125
Rated voltage DC UL	1500 V
Frequency (Hz)	50-60 Hz
Rated voltage DC IEC	1500 V
Ampere Rating	125 A
ROHS Compliant	Yes
AC or DC	DC
Speed/Characteristic	gPV
Fuse Size	1XL
Mounting	Clip
Max. Rated Breaking Capacity DC	50 kA @ 1500 V, L/R = 1 ms
Connection/Terminal Material	Silver-Plated Copper
Connection/Terminal Type	Plain Blades
Product group	Special Purpose Fuses
Power Dissipation at Intermediate Current Value	12.2 W @ 0.7 In W
Power Dissipation at Rated Current Value	30 W
Product Width	39.5 mm
Product Length	192.5 mm
Product Height	64.5 mm
Sell Pack Quantity	1 EA
Sell Pack Weight	0.7 kg
Sell Pack Width	115 mm
Sell Pack Length	230 mm
Sell Pack Height	110 mm
Product Weight	0.7 kg
EAN/UPC	3605340605211

Certifications & Compliance

UL
CE
RoHS
UKCA

Technical Details

Short Description

Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 1XL 125A With Plain Blades For Clip

Rated Current (Ampere)

125 A

Rated Voltage (VAC)

1500 V

Mounting Type

Clip

Catalog No

HP15NH1XLGPV125

Standards

UL, CE, RoHS, UKCA

Model Number

HP15NH1XLGPV125

Tariff Code

85361090
