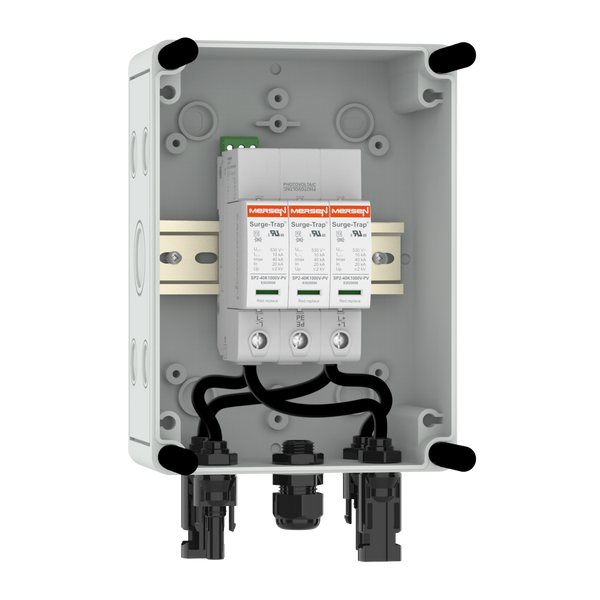

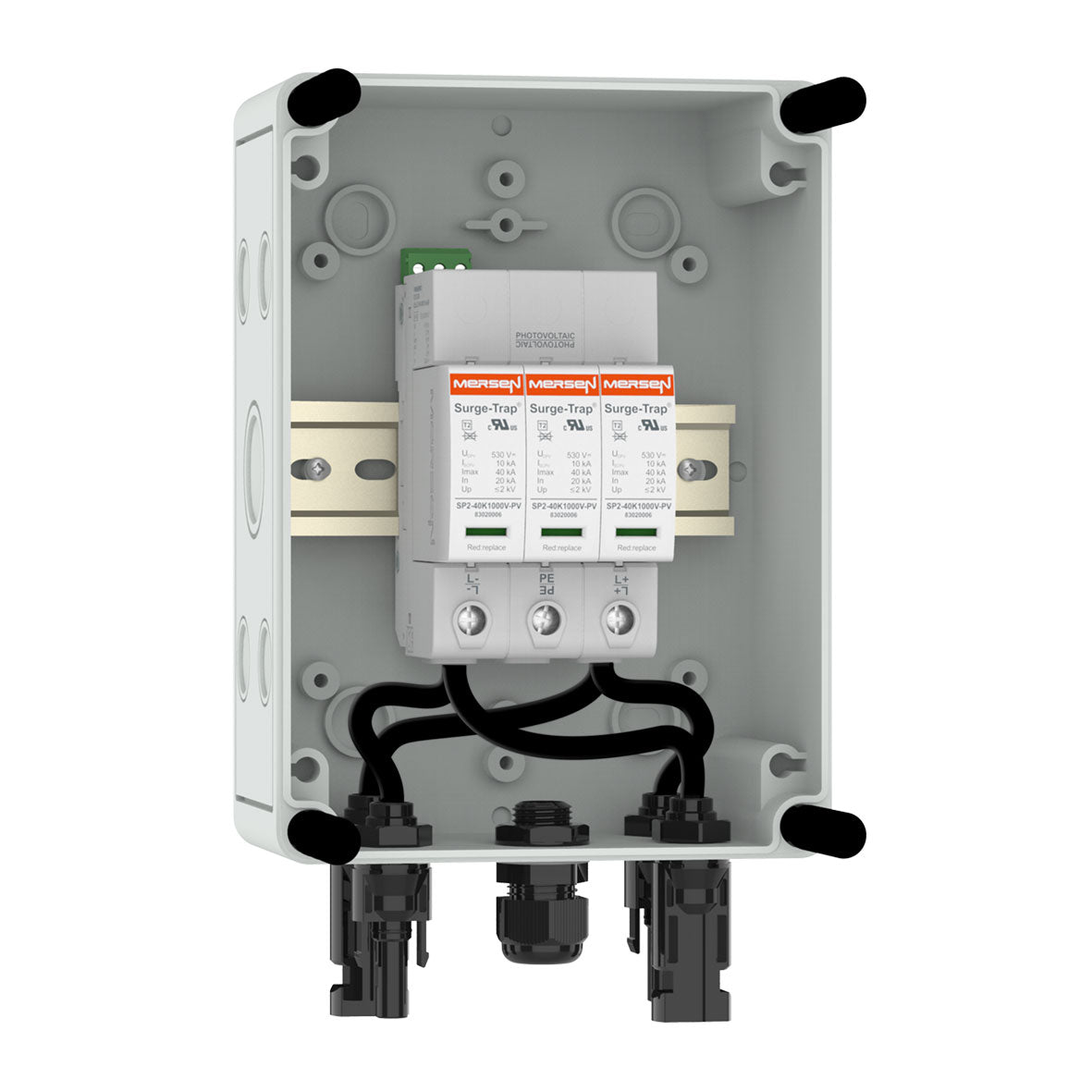

Mersen 83070100 PVBT2-1000V-BH-113 PV string box 1 MPPT with Type 2 SPD 1000V (without remote indication) and MC4 connectors
% $-393.61
Mersen 83070100 PVBT2-1000V-BH-113 PV string box 1 MPPT with Type 2 SPD 1000V (without remote indication) and MC4 connectors
Brand:
Mersen
Reference No:
83070100
Catalog No:
PVBT2-1000V-BH-113
Series:
PV string boxes T2
Tariff Code (HS):
85363030
Get Quote
Stock:
0
Shipping Origin:
Turkey EXW
$393.61
- Description
The Mersen PVBT2-1000V-BH-113 (83070100) is a pV string box 1 MPPT with Type 2 SPD 1000V (without remote indication) and MC4 connectors from the PV string boxes T2 range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.
Technical Specifications
| Catalogue No | PVBT2-1000V-BH-113 |
| ROHS Compliant | Yes |
| IEC SPD Type | Class II |
| Nominal Operating Volt Rating (Un) | 1000 |
| AC or DC | DC |
| Max Discharge Current : Imax (8/20) | 40 kA |
| Protection Modes | L+/PE, L-/PE, L+/L- |
| System Configuration | YPV |
| Indication System | Yes |
| Indication System Type | Green (OK) / Not green (replace) |
| Housing Material | Polycarbonate |
| Installation Mounting | Panel or Wall Mount |
| Up at In (L-PE) | ≤4 kV |
| MCOV DC+ DC- | 600 V |
| MCOV DC+ G | 600 V |
| MCOV DC- G | 6000 V |
| Replacement Plug L1 | 83020006 |
| Product group | Photovoltaic & Energy Storage SPDs |
| Product Width | 260 mm |
| Product Length | 240 mm |
| Product Height | 220 mm |
| Sell Pack Quantity | 1 EA |
| Sell Pack Weight | 1.378 kg |
| Sell Pack Width | 240 mm |
| Sell Pack Length | 260 mm |
| Sell Pack Height | 220 mm |
| Product Weight | 1.004 kg |
| EAN/UPC | 8435297875918 |
Certifications & Compliance
- REACH
- CE
- RoHS
Technical Details
Short Description
PV string box 1 MPPT with Type 2 SPD 1000V (without remote indication) and MC4 connectors
Mounting Type
Panel or Wall Mount
Catalog No
PVBT2-1000V-BH-113
Standards
REACH, CE, RoHS
Model Number
PVBT2-1000V-BH-113
Tariff Code
85363030
