Harting 19200031750 Han A hood coupler 3A - cable to cable M20

Harting 19200031750 Han A Single-Lever Hood Coupler 3A Top Entry M20 Heavy Duty Connector Hood

Name: Harting 19200031750 Han A Single-Lever Hood Coupler 3A Top Entry M20 Heavy Duty Connector Hood
Brand: Harting
SKU: 19200031750
Price: 7.81 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Harting

Reference No: 19200031750

Catalog No: 19 20 003 1750

Series: Han A

Tariff Code (HS): 853890

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$7.81

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

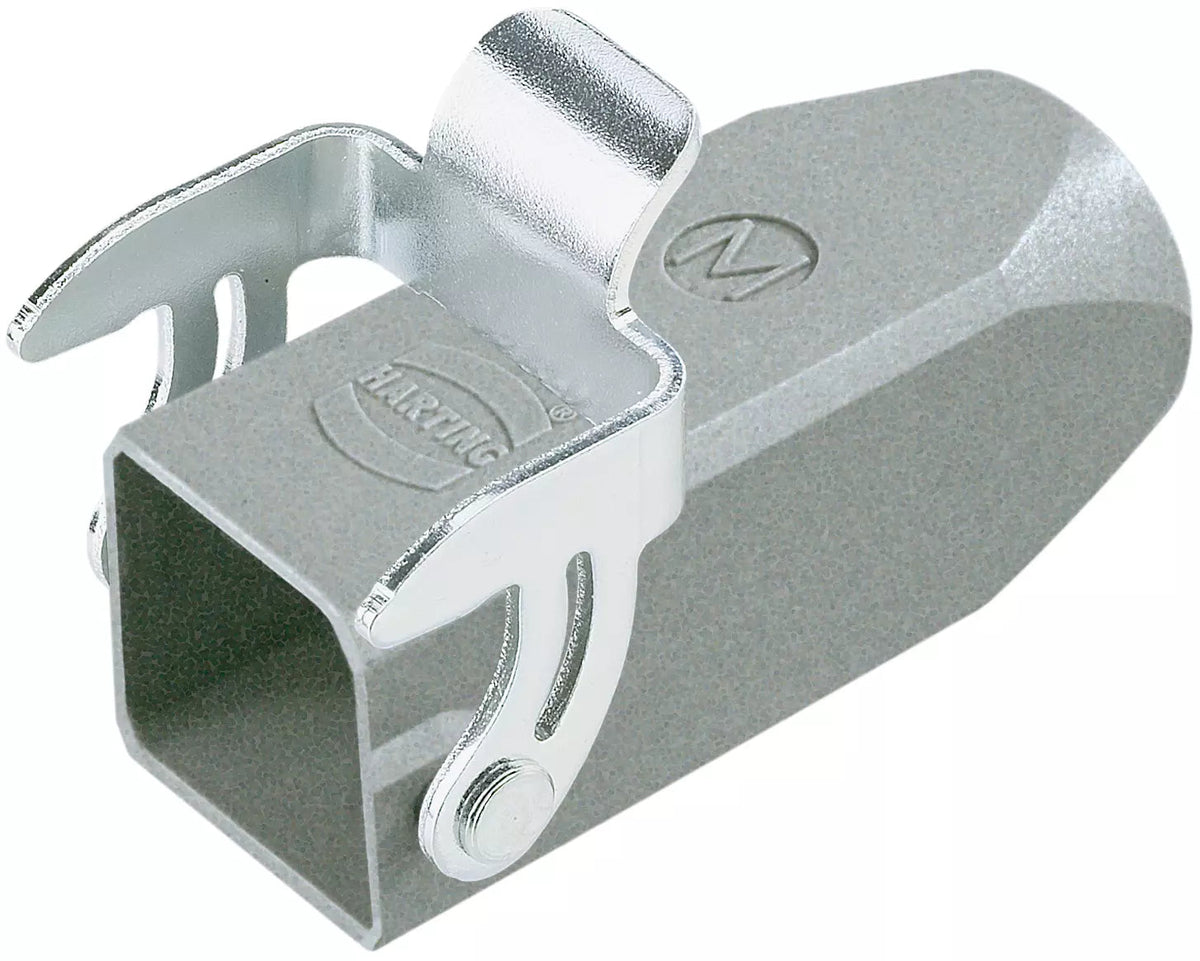

The Harting 19200031750 is a Han A hood coupler, a cable-to-cable housing in size 3 A, with a single locking lever and one top-entry M20 cable gland. The zinc die-cast shell is powder-coated RAL 7037 and rated IP44 as supplied, reaching IP65/IP67 once the separate seal screw is fitted.

Technical Specifications

Article number	19200031750
Article number (formatted)	19 20 003 1750
Brand	Harting
Series	Han A
GTIN	5713140124639
Category	Hoods / Housings
Type	Cable to cable housing
Locking type	Single locking lever
Size	3 A
Version	Top entry
Number of cable entries	1
Cable entry	1x M20
Note	Seal screw ordered separately
Degree of protection (IEC 60529)	IP44 \| IP65 with seal screw \| IP67 with seal screw
UL 50 / UL 50E type rating	12
Limiting temperature	-40 ... +125 °C
Material (housing)	Zinc die-cast
Surface finish	Powder-coated
Colour	RAL 7037 (dust grey)
Material (locking)	Steel, zinc plated
Net weight	70 g
Country of origin	Germany

Certifications & Standards

UL 1977
CE
UKCA
DNV GL
EN 45545-2

Selection Notes

A cable-to-cable housing couples two cable ends directly rather than mounting one side to a panel, which is what separates this part from the standard 3 A hood also offered in Han A. It still needs the same seal screw, ordered separately, to move past the as-supplied IP44 rating up to IP65/IP67. The locking lever here is steel rather than the polycarbonate-and-stainless combination used on larger Han B hoods, matched to the smaller 3 A frame's lower mating force.

Technical Details

Short Description

Han A hood coupler, cable-to-cable, size 3 A, single lever, top entry, 1x M20.

Mounting Type

Top entry

Protection Type

IP44 (IP65/IP67 with seal screw)

Catalog No

19 20 003 1750

Delivery Date (Days)

30 days

Model Number

Single-Lever Hood Coupler

Tariff Code

853890

Downloads

Datasheet
